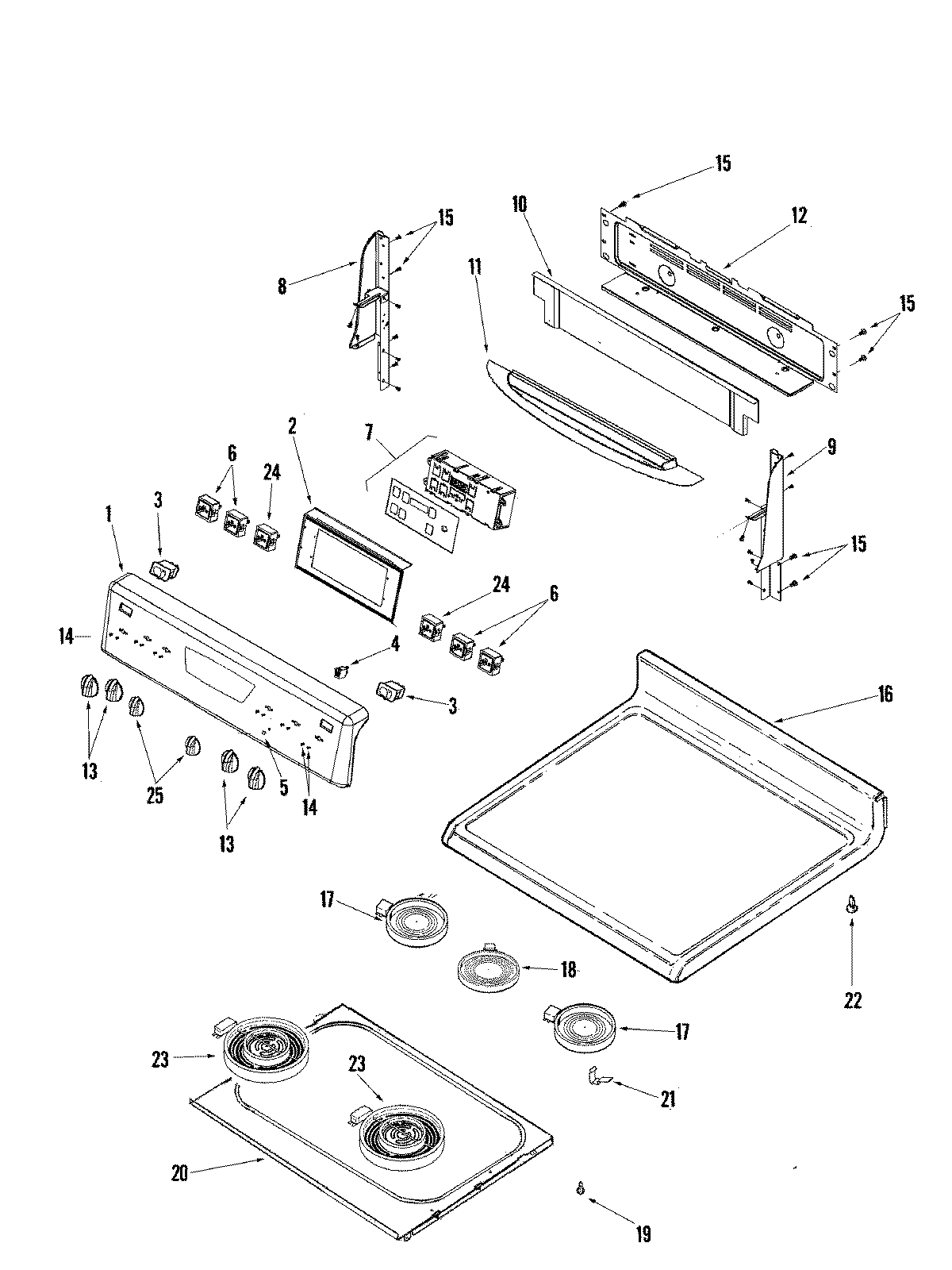

AER5845QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008674
2	MAY 74008716
3	SWITCH, ROCKER (BLK)
4	WP74004153 Whirlpool Indicator Light
4	WP903115 Whirlpool Dishwasher Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74008644
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009207
10	MAY 74009205
10	MAY 74008725
11	MAY 74009202
11	MAY 74008891
12	MAY 74008836
12	MAY 74008730
13	MAY 74008731
14	SCREW
16	MAY 74008533
17	W10823711 Whirlpool Surface Element Left Front and Right Rear
18	MAY 74008898
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74006589
25	MAY 74008892
