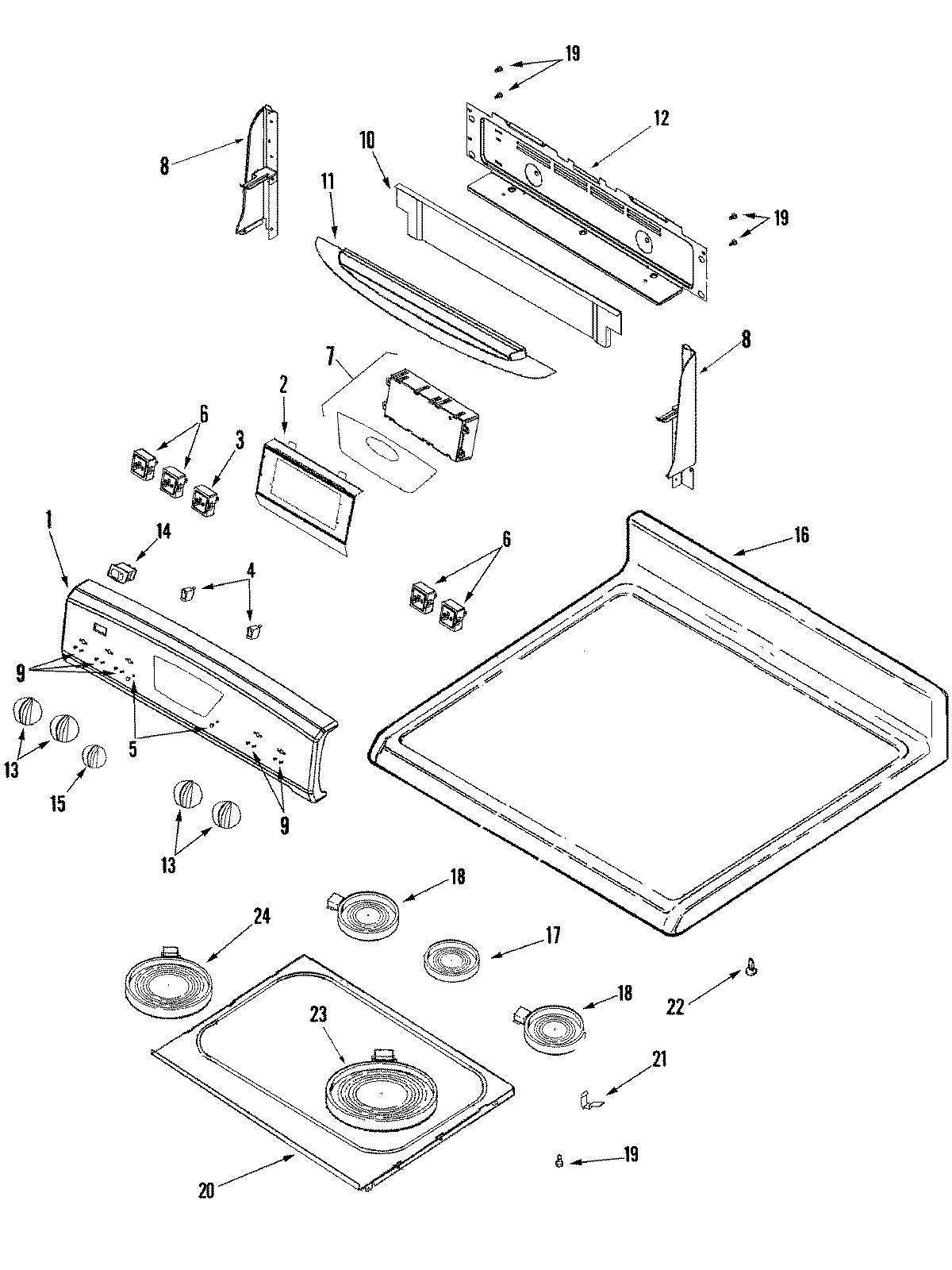

AER5845RAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011423
2WP74003976 Whirlpool Screw
2MAY 74008716
3MAY 74006589
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7SCREW
7MAY 74008644
8End Cap (Left Black)
8End Cap (Right Black)
9SCREW
10MAY 74009444
11MAY 74009202
12MAY 74010983
12MAY 7002P361-60
12MAY 74008836
13MAY 74008731
14SWITCH, ROCKER (BLK)
15MAY 74008892
16MAY 74011396
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24MAY 74009082
