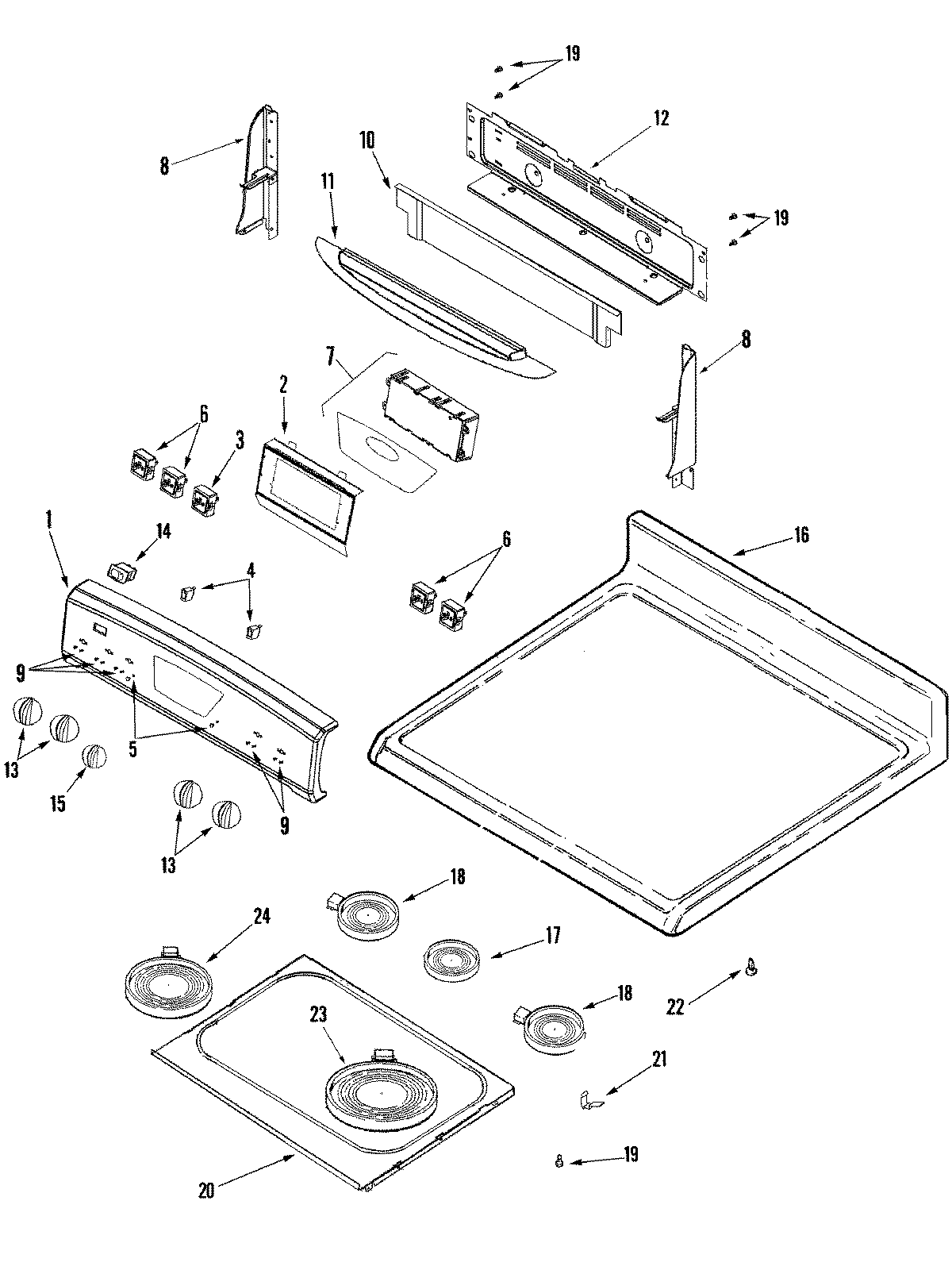

AER5845RAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011425
2	WP74003976 Whirlpool Screw
2	MAY 74008716
3	MAY 74006589
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P239-60 Whirlpool Oven Switch
7	MAY 74008644
7	SCREW
8	End Cap (Right Black)
8	End Cap (Left Black)
9	SCREW
10	MAY 74009444
11	MAY 74009202
12	MAY 7002P361-60
12	MAY 74010983
12	MAY 74008836
13	MAY 74008731
14	SWITCH, ROCKER (BLK)
15	MAY 74008892
16	MAY 74011396
17	MAY 74008898
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74009082
