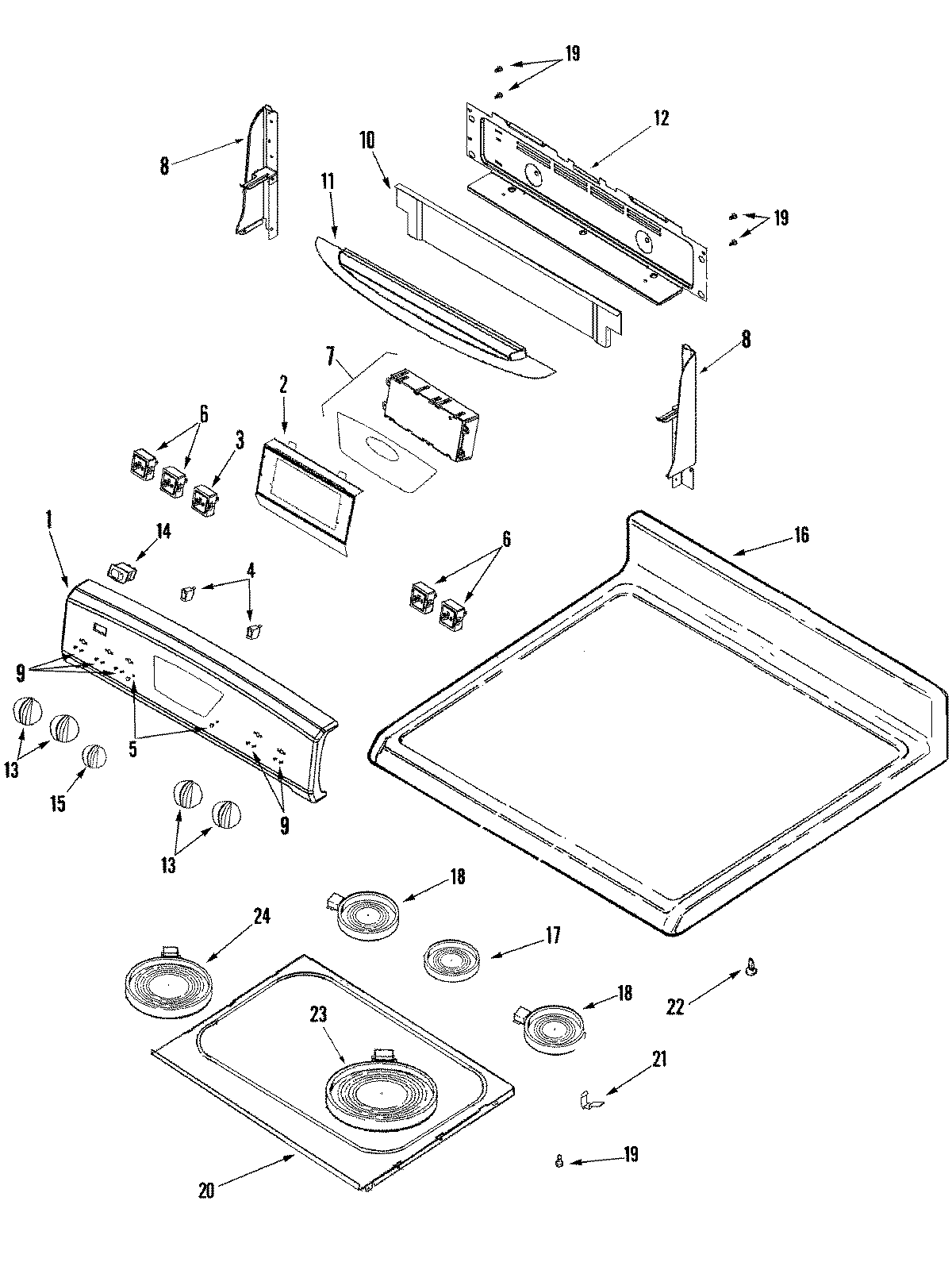

AER5845RAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011424
2	WP74003976 Whirlpool Screw
2	MAY 74008716
3	MAY 74006589
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	SCREW
7	MAY 74008638
8	End Cap (Left White)
8	End Cap (Right White)
9	SCREW
10	MAY 74009444
11	MAY 74009203
12	MAY 7002P361-60
12	MAY 74008836
12	MAY 74010983
14	74008717 Whirlpool White Rocker Switch
15	MAY 74008911
16	MAY 74011397
17	MAY 74008898
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74009082
