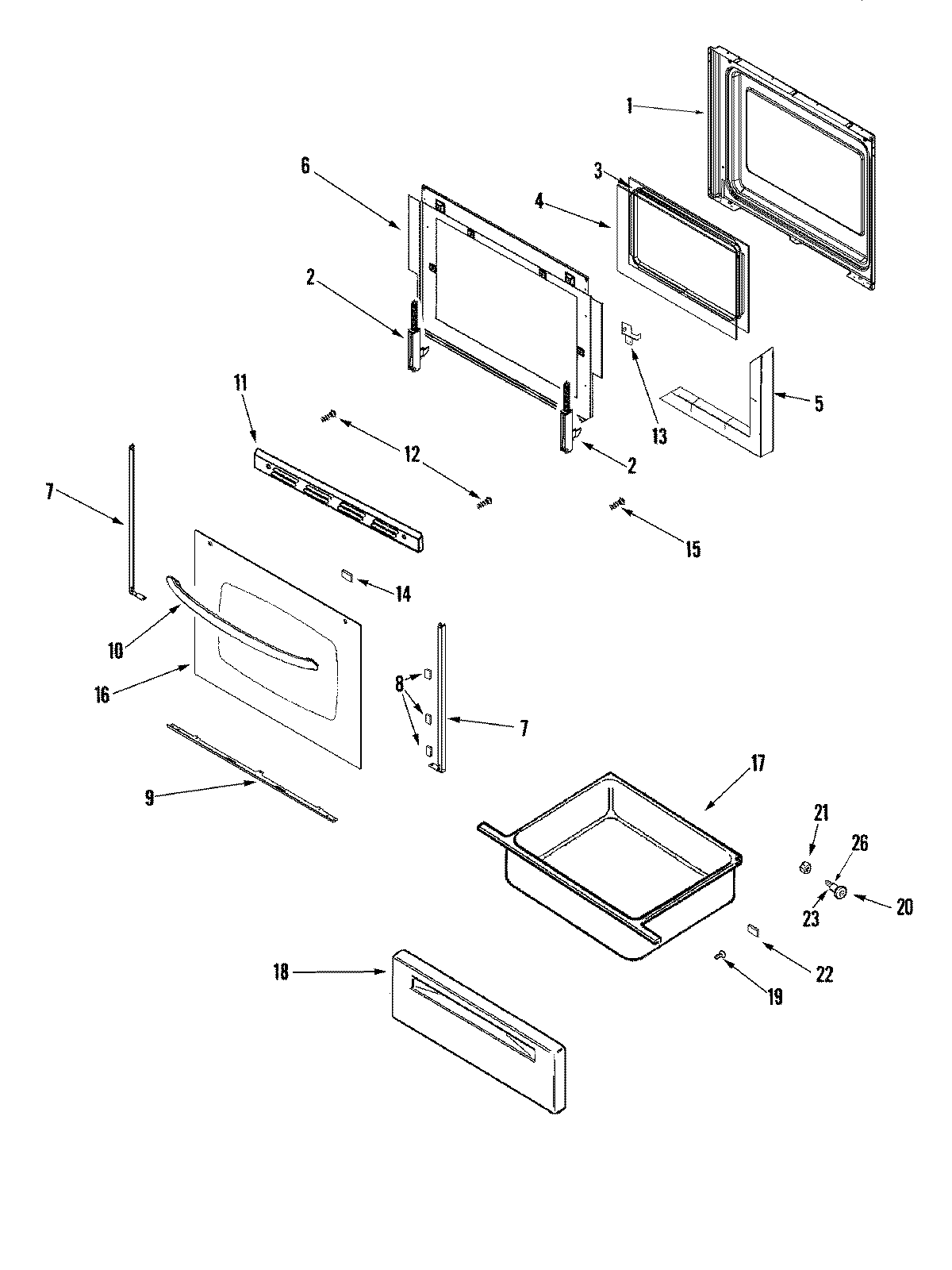

AER5845RAW 04 – DOOR/DRAWER

AER5845RAW 04 – DOOR/DRAWER

Written by

in

AER5845RAW 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
5MAY 74010564
6MAY 74008744
7MAY 74010561
8WP74009025 Whirlpool Double Sided Tape
9WP3608F092-71 Whirlpool Bottom Trim
10HANDLE, DOOR (WHT)
11WP98008544 Whirlpool Screw Assembly
11MAY 74008747
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74004224 Whirlpool Tape
15SCREW (10-24X5/16-NI)
16TAPE, FOIL (3“ WIDE)
16Glass, Door (White)
17MAY 3405F037-80
17MAY 74008337
18Panel, Drawer (White)
18MAY W10163040
18PLATE, PANEL MTG.
18WPW10131078 Whirlpool Nut Assembly
19SCREW
20WP74004078 Whirlpool Door Roller
21WP488130 Whirlpool Air Conditioner Nut
22WP74005546 Whirlpool RU Spacer
23SHAFT, STORAGE DRAWER ROLLER
