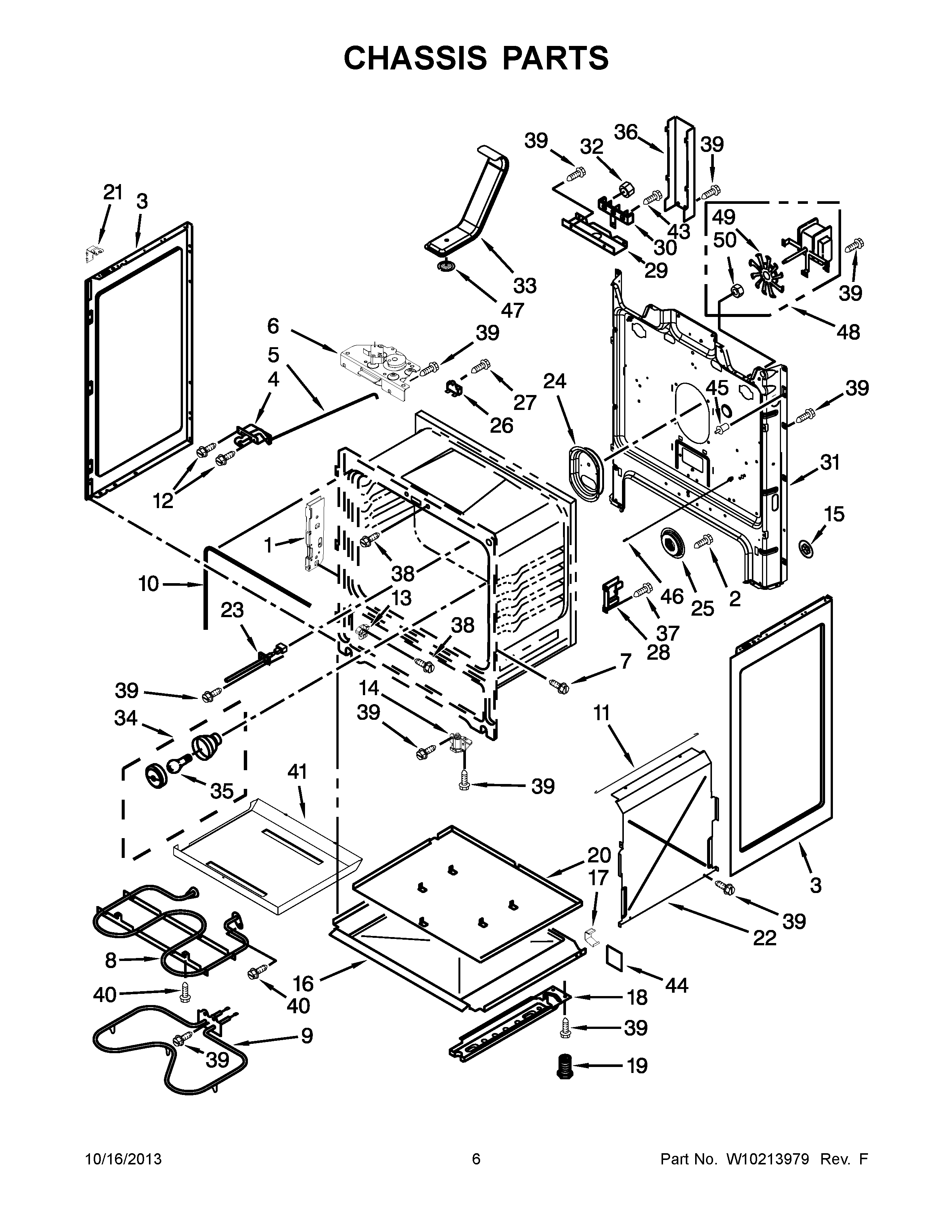

AER6011VAB0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, FLUE
NI	MAY W10208653
NI	INSULATION, BACK
1	RECEIVER, HINGE
2	MAY 4449809
3	MAY W10322770
3	MAY W10322769
4	ASSEMBLY, DOOR LATCH (FRONT)
5	ROD, LATCH
6	Latch Asy, Rear
7	SCREW
8	ELEMENT, BROIL
9	ELEMENT, BAKE (HIDDEN)
10	MAY 8522416
11	ROD, INSULATION RETAINER
12	SCREW
13	Glide, Drawer
14	ASSEMBLY, FRONT FOOT
15	MAY 3400968
16	TRAY, INSULATION
17	CLIP, PANEL
18	LEFT RAIL ASM
18	RIGHT RAIL ASM
19	FOOT, LEVELING
20	SHIELD, HEAT
21	CLIP, SPRING STEEL
22	RETAINER, INSULATION
23	SENSOR, OVEN
24	MAY W10134126
25	MAY W10134124
26	FUSE, THERMAL
27	SCREW
28	BRACKET, OVEN SUPPORT
29	BRACKET, SERVICE
30	BLOCK, TERMINAL
31	MAIN BACK
32	WP7103P027-60 Whirlpool Nut
33	TUBE, VENT
34	MAY 3196701
35	BULB, OVEN LIGHT
36	COVER, TERMINAL BLOCK
37	SCREW
38	Screw (Black)
39	SCREW
40	SCREW
41	TRAY, HIDDEN BAKE
42	MAY W10031780
43	SCREW
44	MAY 9759689
45	Switch, Door
46	ROD, DOOR SWITCH
47	MAY 9761301
48	Fan, Motor Cnvctn
49	MAY W10116351
50	MAY W10213748
