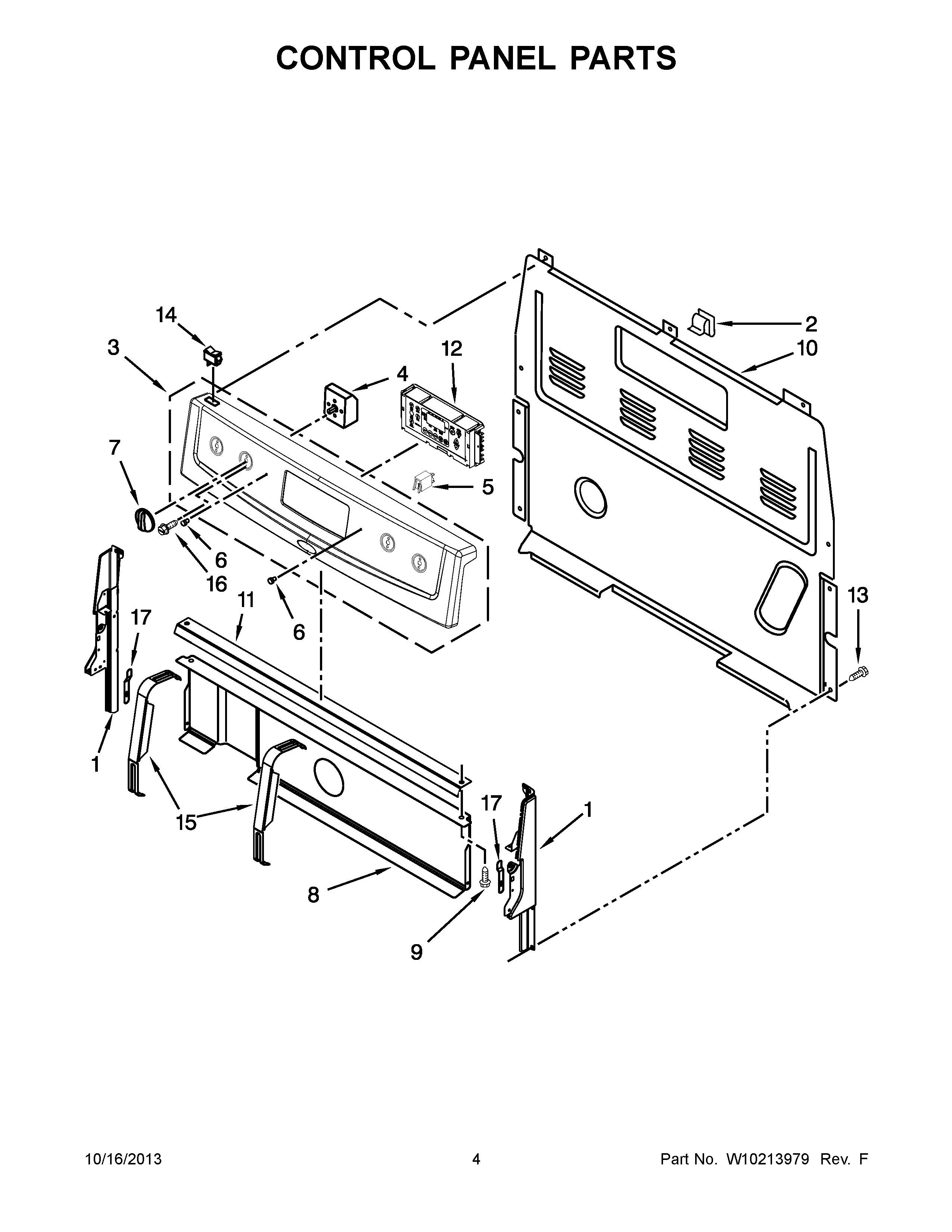

AER6011VAS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2MAY 8273564
3MAY W10170021
3MAY W10170019
3MAY W10170020
4MAY W10295573
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (LR, RR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7KNOB, INFINITE (BLACK)
8SHIELD, HEAT
9Screw (White)
9Screw (Black)
10COVER, UPPER REAR
11Bracket, Console
12MAY W10271721
12MAY W10271722
13SCREW
14SWITCH, ROCKER (WHITE)
14SWITCH, ROCKER (BLACK)
15BRACKET, MOUNTING, EOC
16SCREW
17CLIP, SPRING
