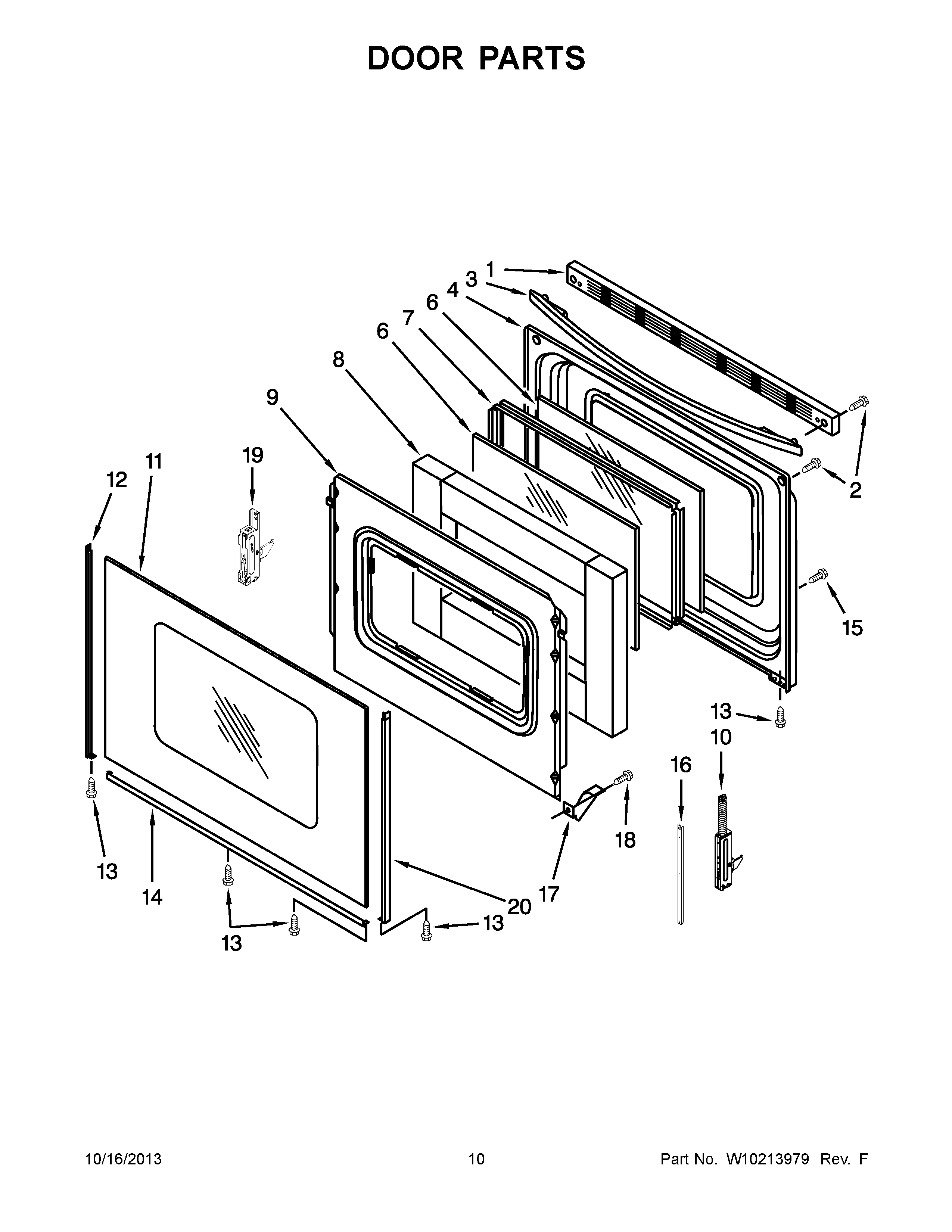

AER6011VAS0 06 – DOOR PARTS

AER6011VAS0 06 – DOOR PARTS

Written by

in

AER6011VAS0 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
1	TRIM, TOP (BLACK)
2	MAY W10031780
3	MAY W10144890
3	MAY W10144888
3	MAY W10144889
4	LINER, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
11	Glass, Outer (White)
11	Glass, Outer (Black)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK, LEFT HAND)
13	MAY 3196160
14	TRIM, LOWER (WHITE)
14	TRIM, LOWER (BLACK)
16	STRAP, DOOR
17	CLIP, PANEL
18	SCREW
19	HINGE, DOOR (PASSIVE)
20	TRIM, SIDE (BLACK, RIGHT HAND)
20	TRIM, SIDE (WHITE (RIGHT))
