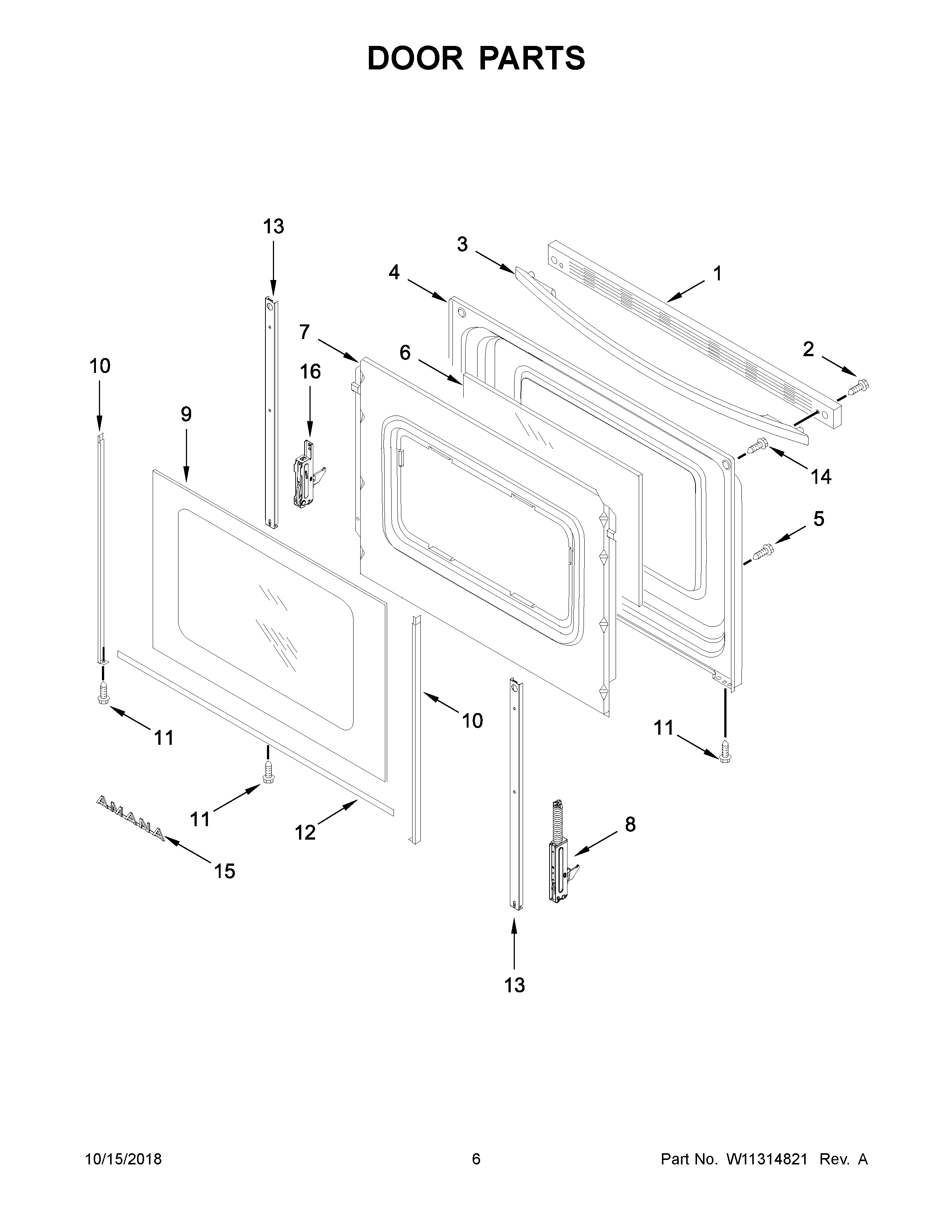

AER6303MFB2 04 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3HANDLE, DOOR (BLACK)
3AHANDLE, DOOR (WHITE)
4LINER, DOOR
5SCREW
6GLASS, INNER
7RETAINER, INSULATION
8HINGE, ACTIVE
9GLASS, OUTER (BLACK)
9AGLASS, OUTER (WHITE)
10TRIM, SIDE (BLACK (LEFT))
10ATRIM, SIDE (WHITE (LEFT))
10CTRIM, SIDE (WHITE (RIGHT))
10BTRIM, SIDE (BLACK (RIGHT))
11SCREW
12ATRIM, LOWER (WHITE)
12TRIM, LOWER (BLACK)
13STRAP, DOOR
14SCREW
15ABADGE (WHITE)
15BADGE (BLACK)
16HINGE, DOOR (PASSIVE)
