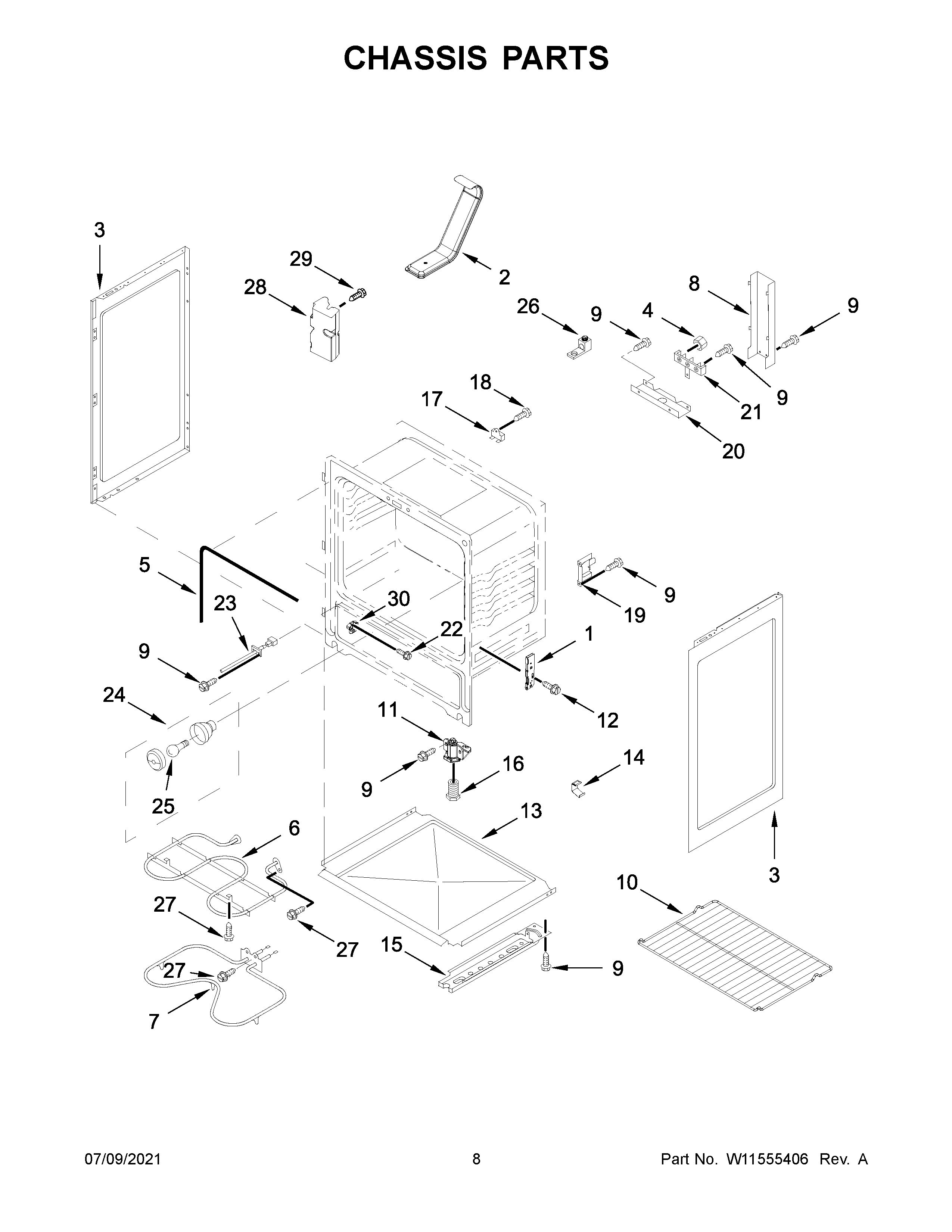

AER6303MFB3 05 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WPW10134285 Whirlpool Vent Tube
3A	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WPW10326122 Whirlpool Black Cover
9	WP3196557 Whirlpool Screw
10	RACK-OVEN
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	W10777162 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	Screw
23	WPW10181986 Whirlpool Oven Sensor
24	W11594170 Whirlpool Light Socket
25	BULB-LIGHT
26	WPW10281322 Whirlpool Connector
27	WP3196154 Whirlpool Screw Assembly
28	W11135752 Whirlpool Anchor Tip
29	W11135756 Whirlpool Screw Torx
30	W10807823 Whirlpool Drawer Glide
