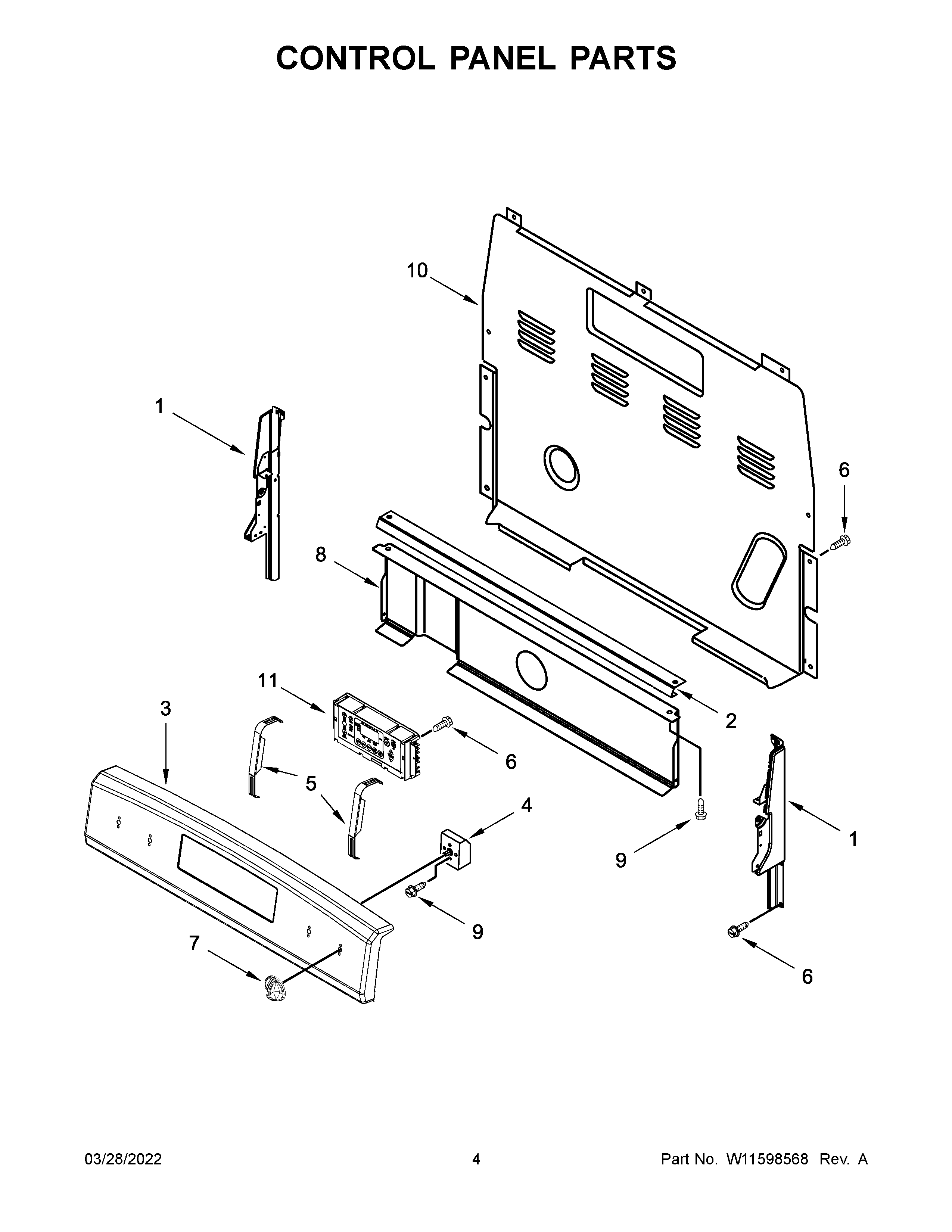

AER6303MFB5 03 – CONTROL PANEL PARTS

AER6303MFB5 03 – CONTROL PANEL PARTS

Written by

in

AER6303MFB5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1AW11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1BW11219665 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3AW11252172 Whirlpool Control Panel
3W11252789 Whirlpool Control Panel
4WP3148952 Whirlpool Oven Infinite Switch
4ASWITCH-INF
5W11230932 Whirlpool Bracket Mounting
6SCREW
7W11210997 Whirlpool Knob
7AW11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11AW11536795-includeCORE Whirlpool W11536795 Electronic Control Board + Core
11CNTRL-ELEC + CORE
