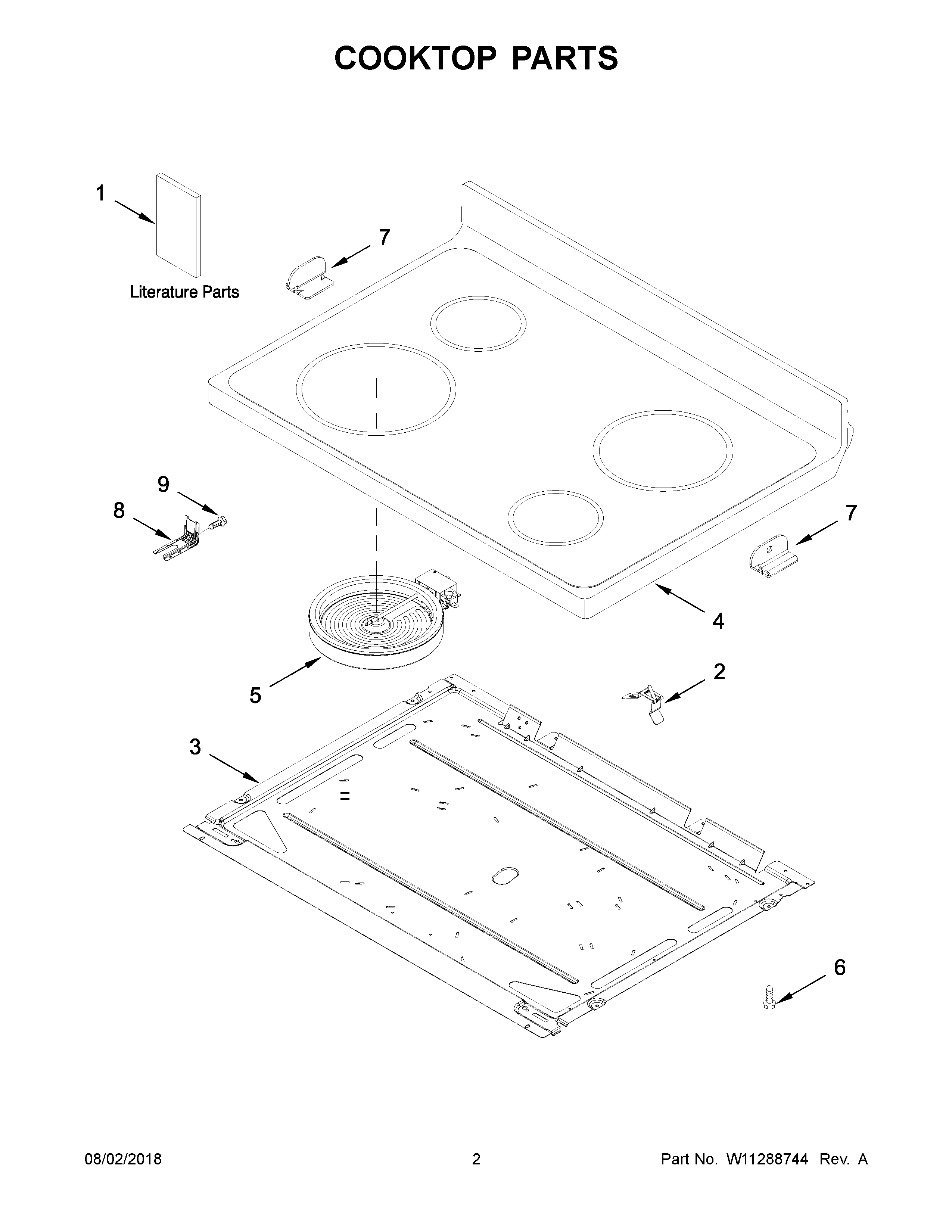

AER6303MFS2 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (MAIN)
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
1CDIAGRAM, WIRING
1BSHEET, TECH
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4COOKTOP (BLACK)
5AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
6SCREW
7ABRACKET, COOKTOP (RIGHT)
7BRACKET, COOKTOP (LEFT)
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
