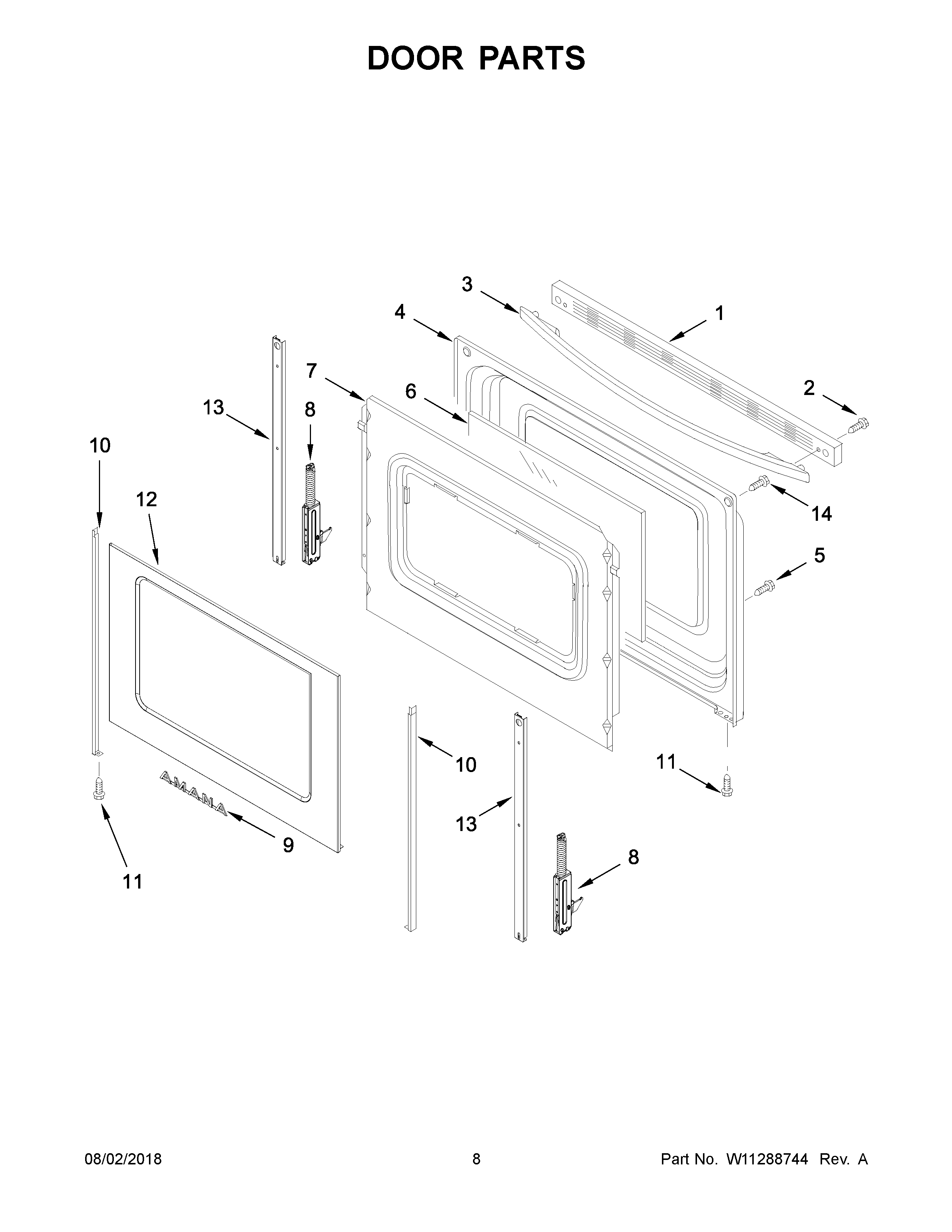

AER6303MFS2 05 – DOOR PARTS

Written by

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8A	HINGE, DOOR (PASSIVE)
9	BADGE (STAINLESS)
10	TRIM, SIDE (BLACK (LEFT))
10A	TRIM, SIDE (BLACK (RIGHT))
11	SCREW
12	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
13	STRAP, DOOR
14	SCREW
