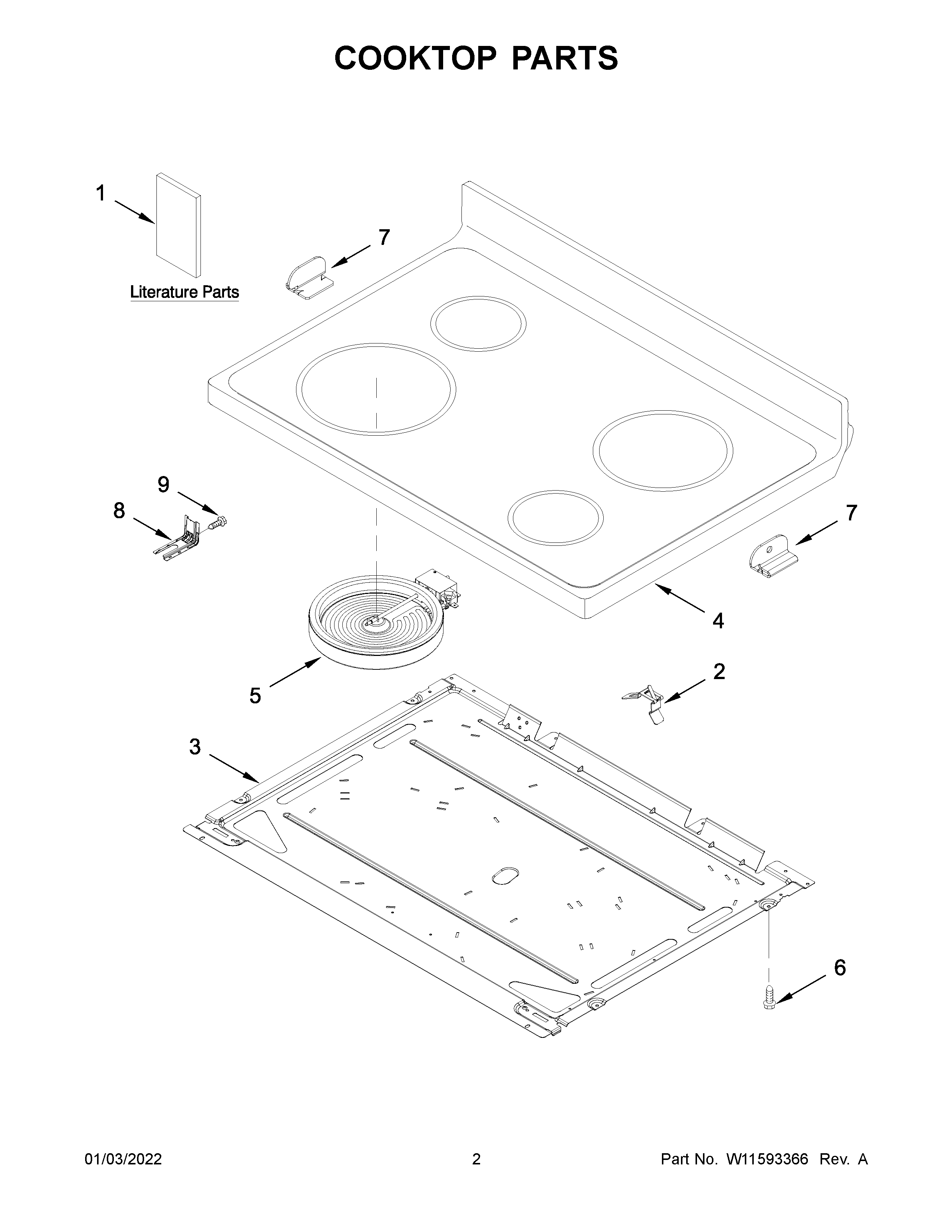

AER6303MFS5 02 – COOKTOP PARTS
Written by
in
AER6303MFS5 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11171894 Whirlpool Wire Harness
NI
W11544350 Whirlpool Wire Harness
NI
W11596058 Whirlpool Wire Harness
1
QUICK START GUIDE
1B
TECH SHEET
1A
USER INSTRUCTIONS
2
WPW10225448 Whirlpool Spring Assembly
3
PAN
4
W10906141 Whirlpool Cooktop
5A
ELMNT-SURF
5
WP8273993 Whirlpool Surface Element
6
WP3196557 Whirlpool Screw
7
W10607641 Whirlpool Clip
7A
W10607642 Whirlpool Clip
8
W11447673 Whirlpool Range Tip Anchor
9
SCREW, ANTI-TIP KIT
←
