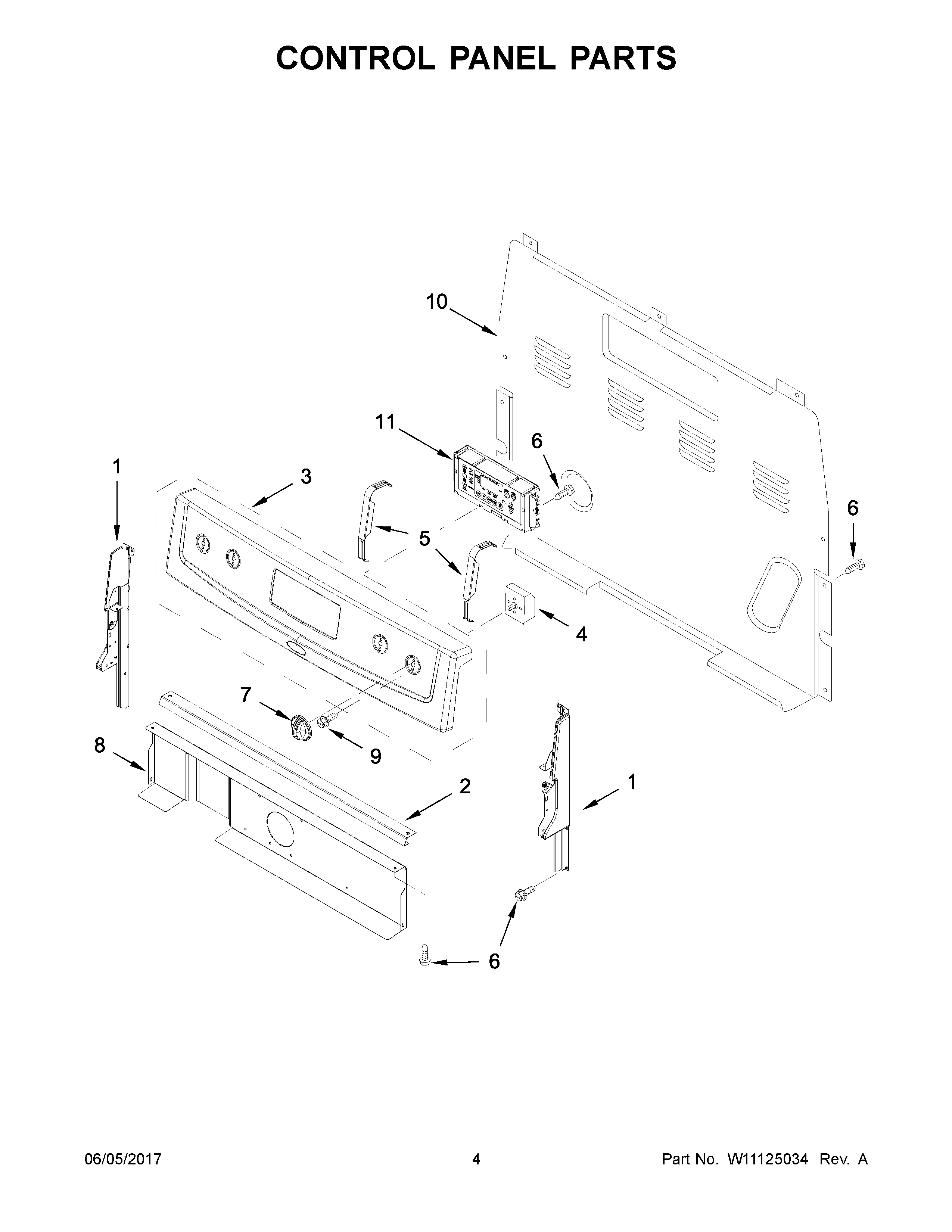

AER6303MFW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (WHITE (LEFT))
1B	ENDCAP (BLACK (RIGHT))
1C	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	PANEL, CONSOLE (BLACK)
3B	PANEL, CONSOLE (STAINLESS)
3A	PANEL, CONSOLE (WHITE)
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4A	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	BRACKET, CONTROL
6	SCREW
7B	KNOBS (STAINLESS)
7A	KNOBS (WHITE)
7	KNOBS (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	CONTROL, LCC180 (BLACK)
11A	CONTROL, LCC180 (WHITE)
