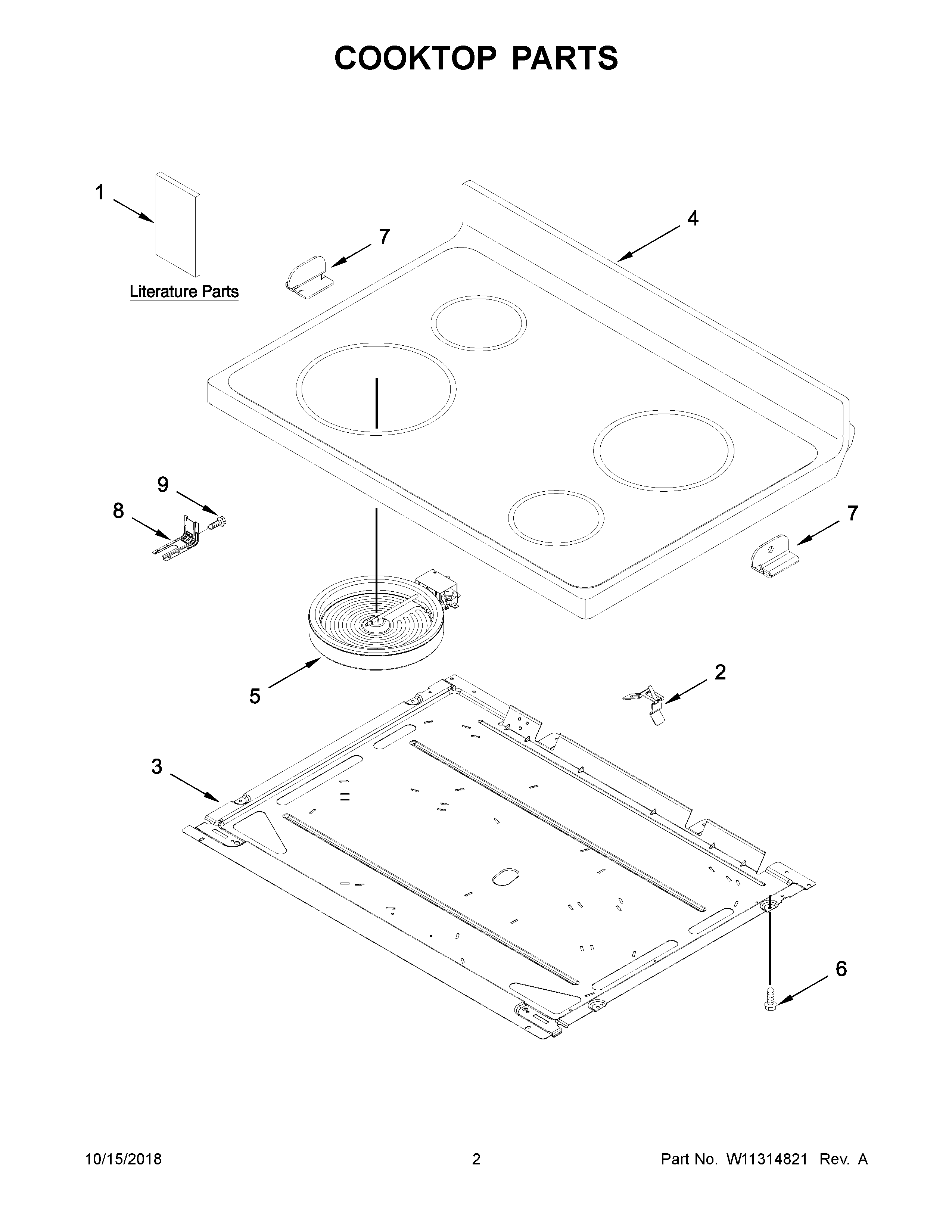

AER6303MFW2 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (MAIN)
NIHARNESS, COOKTOP (LEFT)
NIWIRING HARNESS PARTS, CLIP, WIRE GROUND
NIMAY 8523279
NIHARNESS, COOKTOP (RIGHT)
NILINER (NOT A SERVICEABLE PART)
1AUSER INSTRUCTIONS
1BSHEET, TECH
1CDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4ACOOKTOP (WHITE)
4COOKTOP (BLACK)
5ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
5AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6SCREW
7ABRACKET, COOKTOP (RIGHT)
7BRACKET, COOKTOP (LEFT)
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
