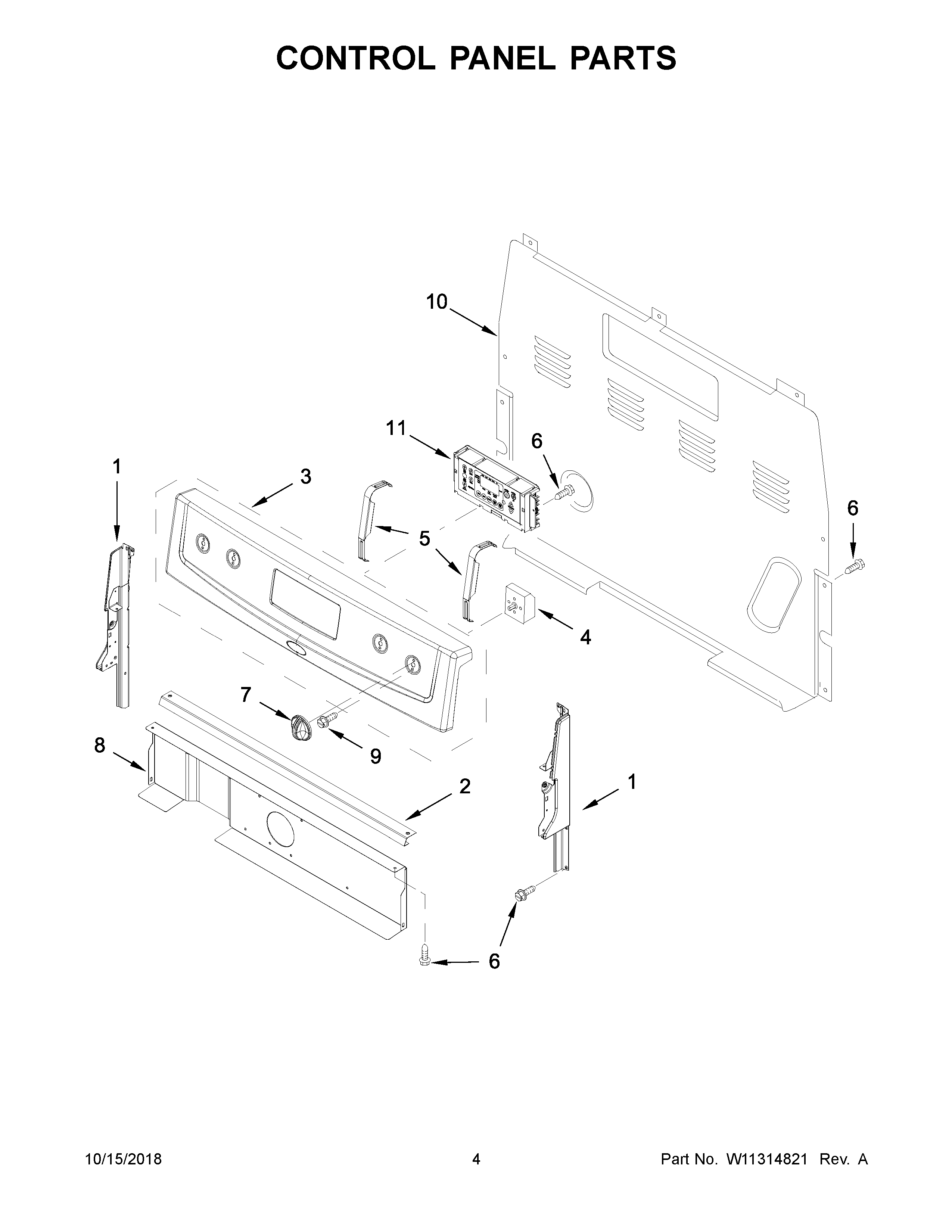

AER6303MFW2 03 – CONTROL PANEL PARTS

AER6303MFW2 03 – CONTROL PANEL PARTS

Written by

in

AER6303MFW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
1CENDCAP (WHITE (RIGHT))
1AENDCAP (WHITE (LEFT))
2BRACKET, CONSOLE MOUNTING
3APANEL, CONSOLE (WHITE)
3PANEL, CONSOLE (BLACK)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5BRACKET, CONTROL
6SCREW
7KNOBS (BLACK)
7AKNOBS (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11CONTROL (LCC95) (BLACK)
11ACONTROL, ELECTRONIC (WHITE)
