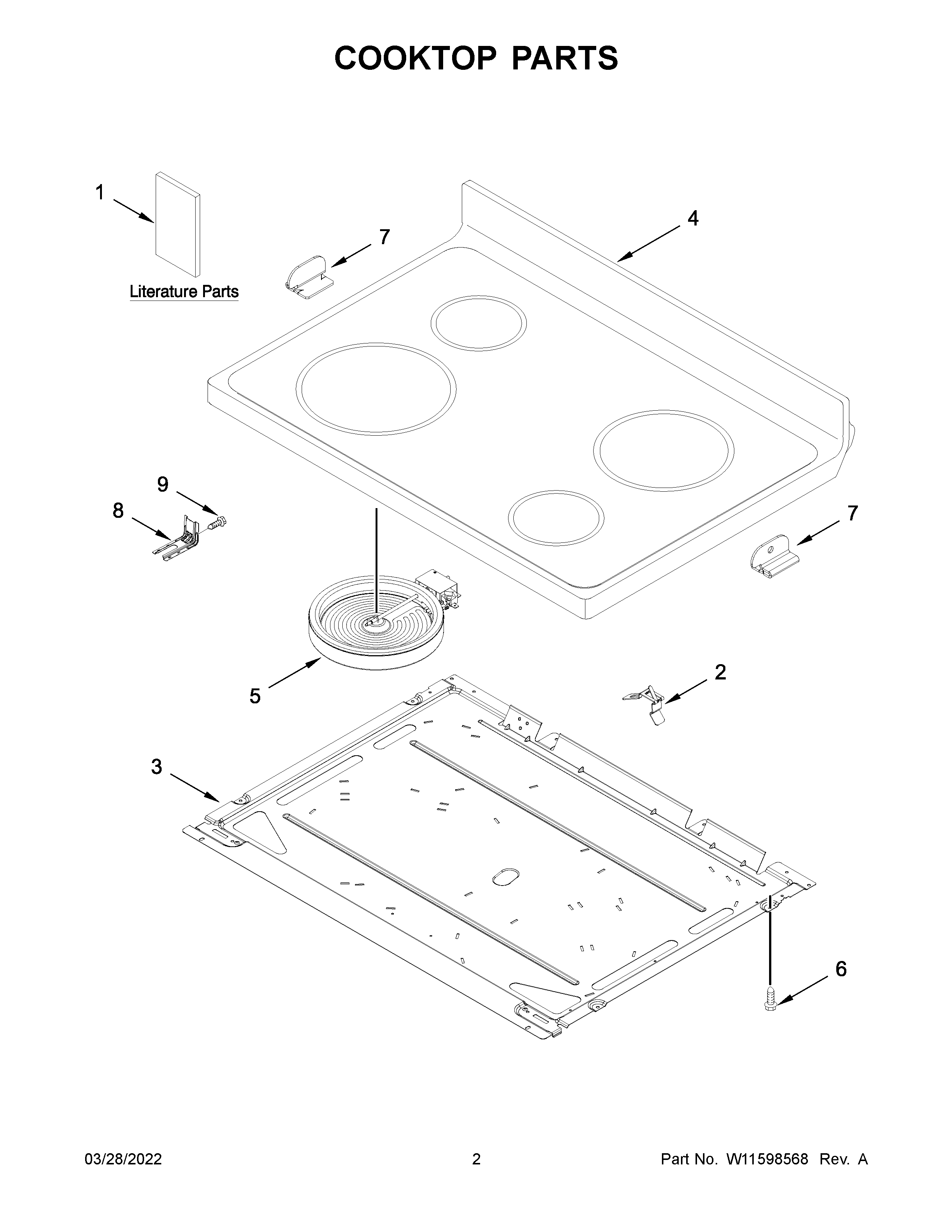

AER6303MFW5 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11171894 Whirlpool Wire Harness
NIW11544350 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1USER INSTRUCTIONS
1BTECH SHEET
1AQUICK START GUIDE
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10906141 Whirlpool Cooktop
4AW10906139 Whirlpool Cooktop
5WP8273993 Whirlpool Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7AW10607642 Whirlpool Clip
7W10607641 Whirlpool Clip
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
