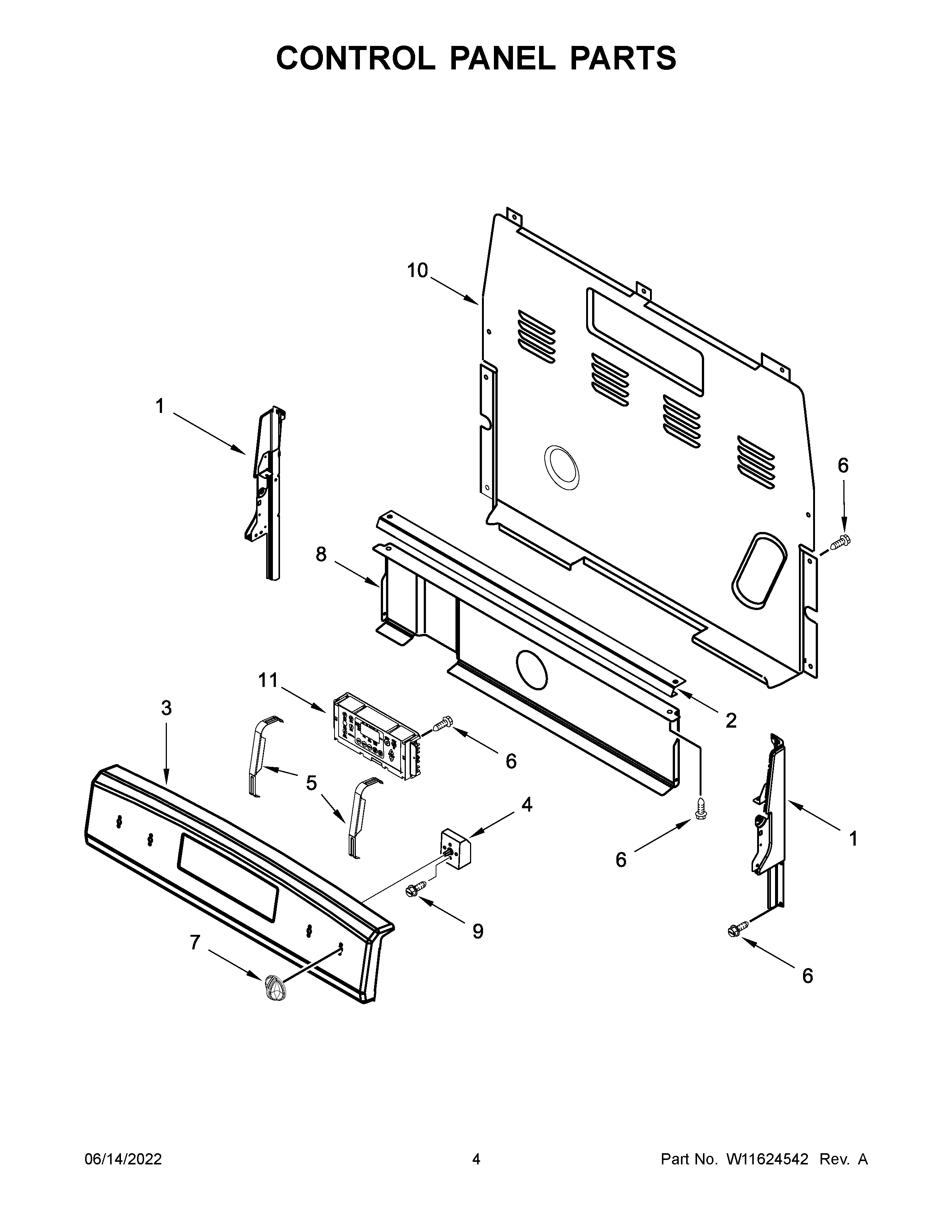

AER6303MMS0 03 – CONTROL PANEL PARTS

AER6303MMS0 03 – CONTROL PANEL PARTS

Written by

in

AER6303MMS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3W11247313 Whirlpool Control Panel
4ASWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5W11230932 Whirlpool Bracket Mounting
6SCREW
7W11210997 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11CNTRL-ELEC + CORE
