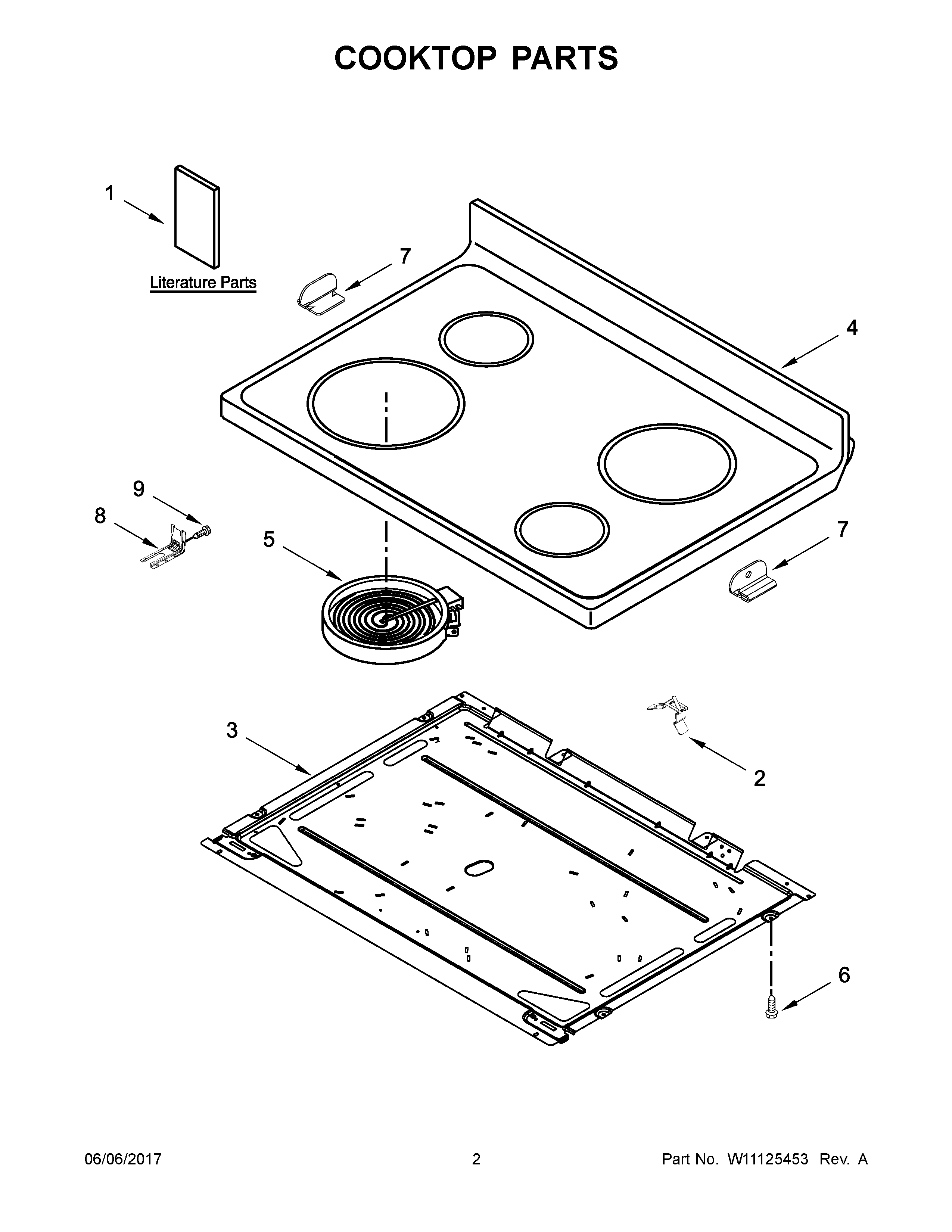

AER6603SFB1 02 – COOKTOP PARTS

AER6603SFB1 02 – COOKTOP PARTS

Written by

in

AER6603SFB1 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (MAIN)
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, WIRE (COOKTOP RIGHT)
1BTIPS, SAFE COOKING (ENGLISH)
1AGUIDE, USE AND CARE
1CSHEET, TECH
1MAY W10403811
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4ACOOKTOP (WHITE)
4COOKTOP (BLACK)
5BELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
5ELEMENT (3000/1400W) (LEFT FRONT)
5AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6SCREW
7ABRACKET, COOKTOP (RIGHT)
7BRACKET, COOKTOP (LEFT)
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
