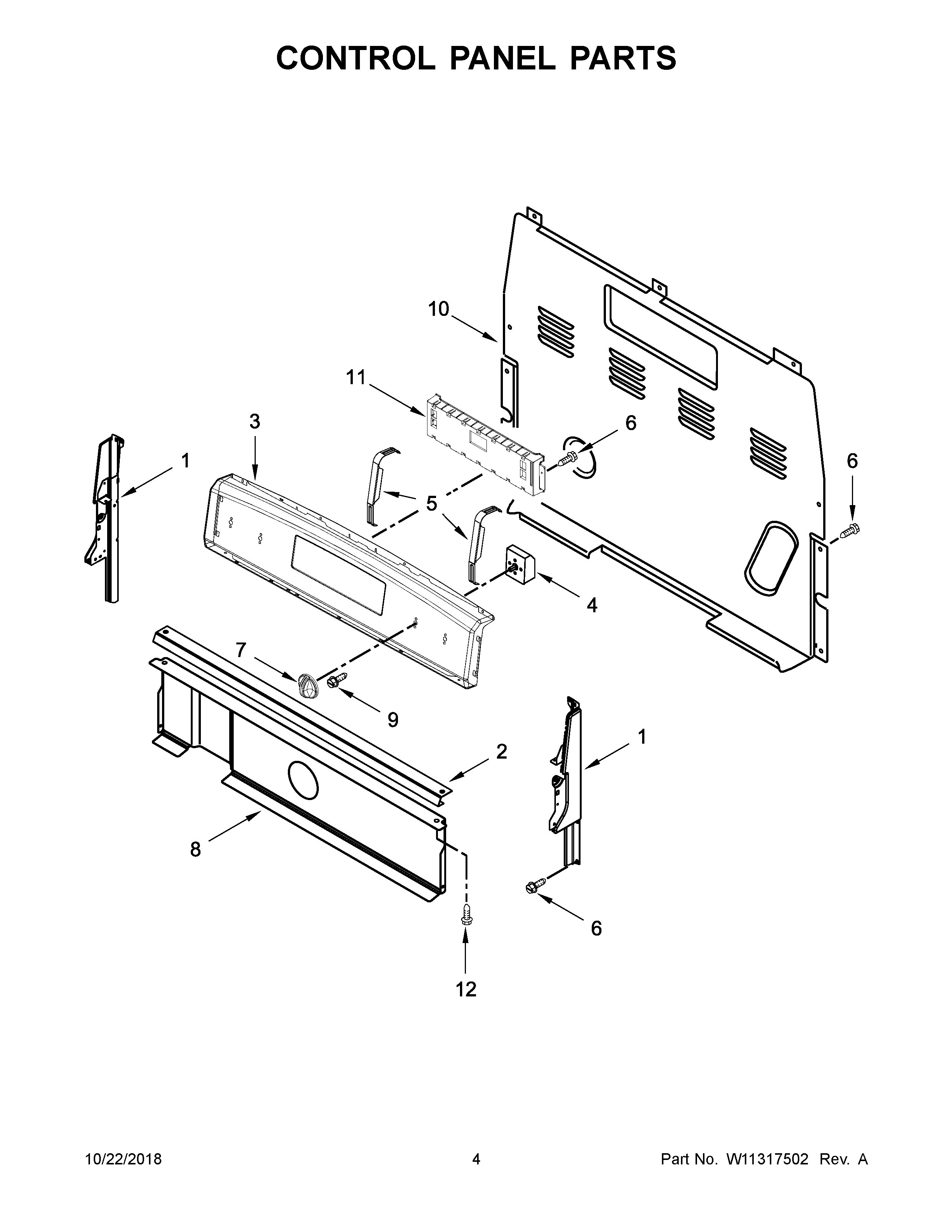

AER6603SFB2 03 – CONTROL PANEL PARTS

AER6603SFB2 03 – CONTROL PANEL PARTS

Written by

in

AER6603SFB2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BENDCAP (WHITE (LEFT))
1AENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
1CENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3AMAY W11157019
3MAY W11157020
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4BSWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5BRACKET, CONTROL
6SCREW
7AKNOBS (WHITE)
7KNOBS (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11ACONTROL, ELECTRONIC (WHITE)
11CONTROL, ELECTRONIC (LCX) (BLACK)
12SCREW
