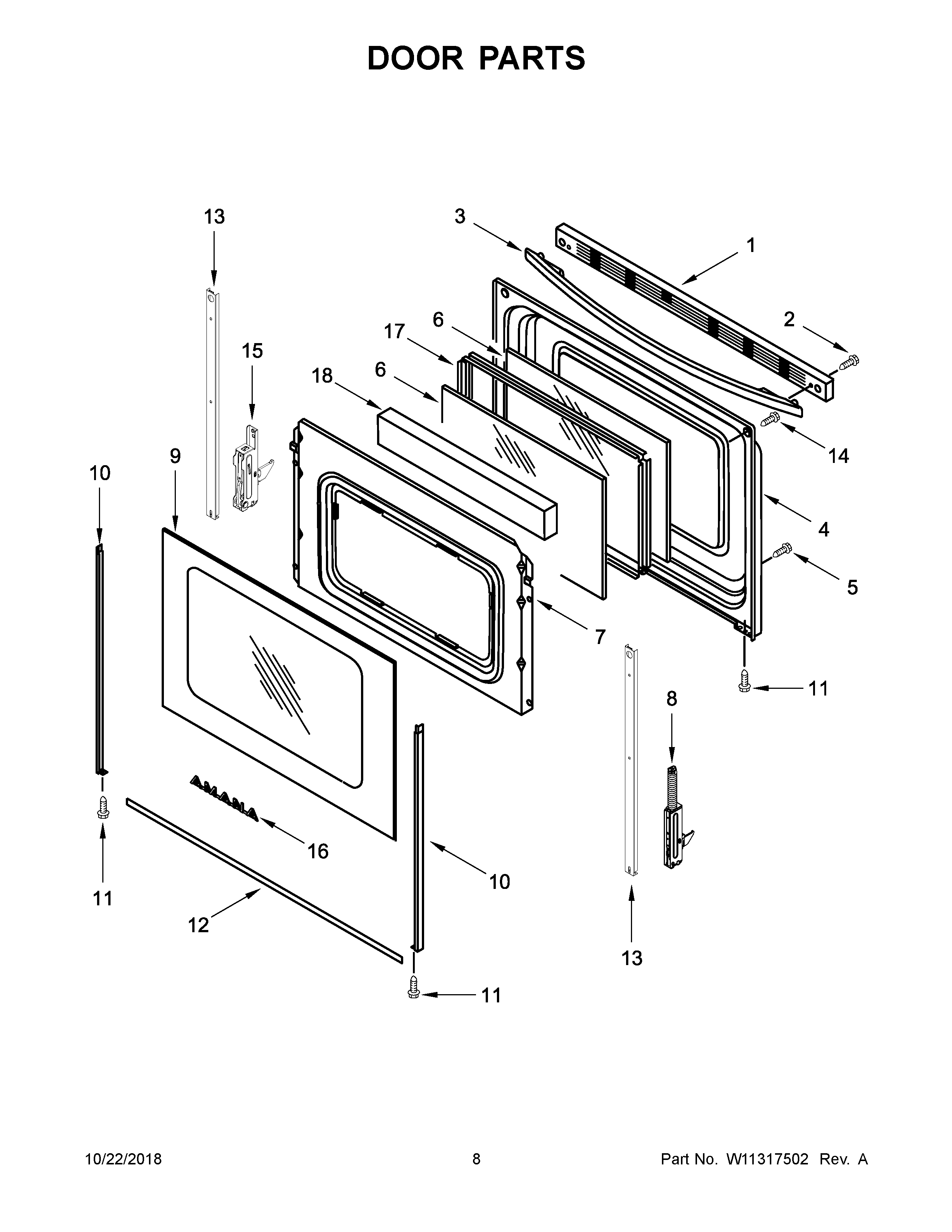

AER6603SFB2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
9	GLASS, OUTER (BLACK)
9A	GLASS, OUTER (WHITE)
10	TRIM, SIDE (BLACK (LEFT))
10A	TRIM, SIDE (BLACK (RIGHT))
10B	TRIM, SIDE (WHITE (LEFT))
10C	TRIM, SIDE (WHITE (RIGHT))
11	SCREW
12A	TRIM, LOWER (WHITE)
12	TRIM, LOWER (BLACK)
13	STRAP, DOOR
14	SCREW
15	HINGE, DOOR (PASSIVE)
16A	BADGE (WHITE)
16	BADGE (BLACK)
17	FRAME, GLASS
18	INSULATION, DOOR STRIP
