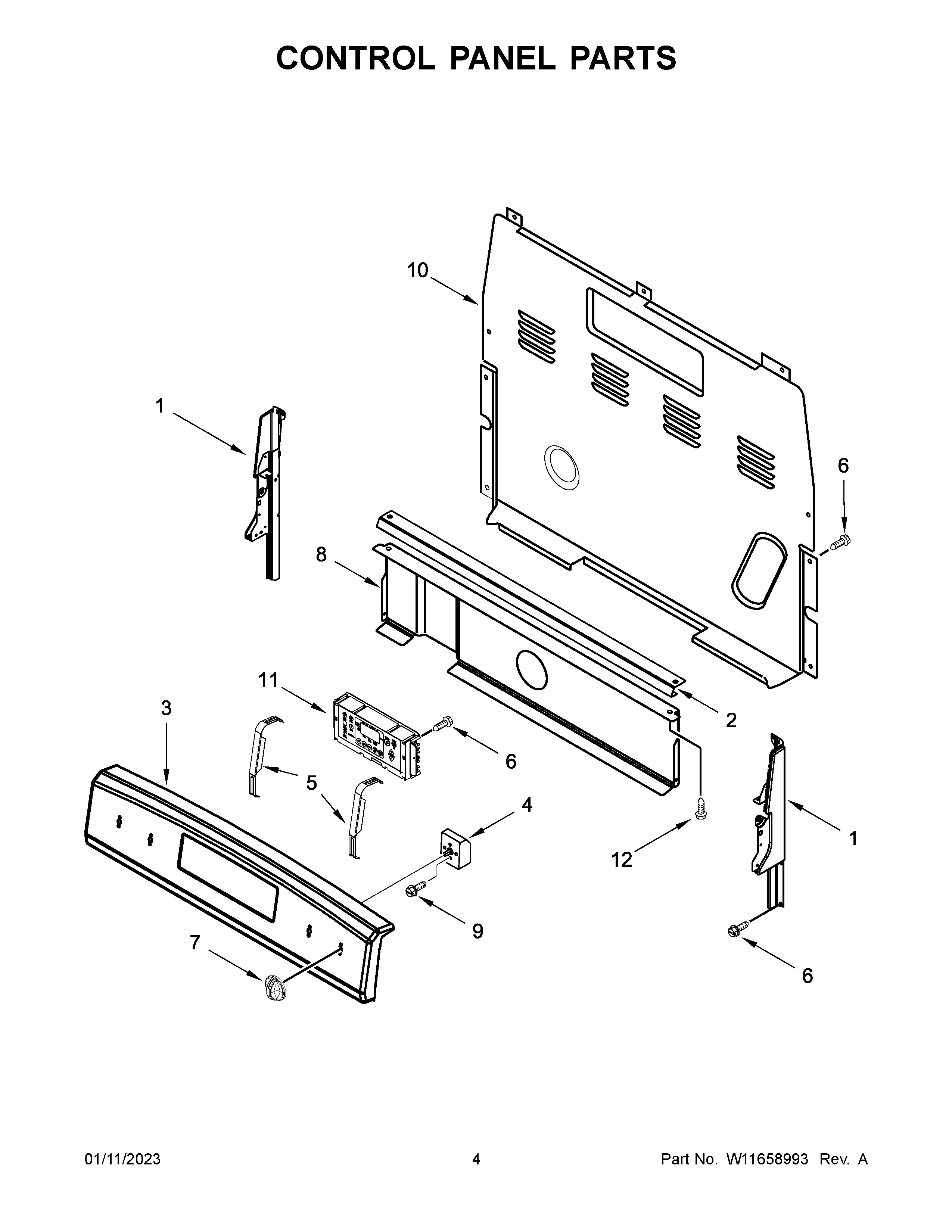

AER6603SFB5 03 – CONTROL PANEL PARTS

AER6603SFB5 03 – CONTROL PANEL PARTS

Written by

in

AER6603SFB5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3W11252790 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4BSWITCH-INF
4SWITCH-INF
5W11230932 Whirlpool Bracket Mounting
6SCREW
7W11210997 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W11594204 Whirlpool Electronic Control Board + Core
12WP3196175 Whirlpool Screw
