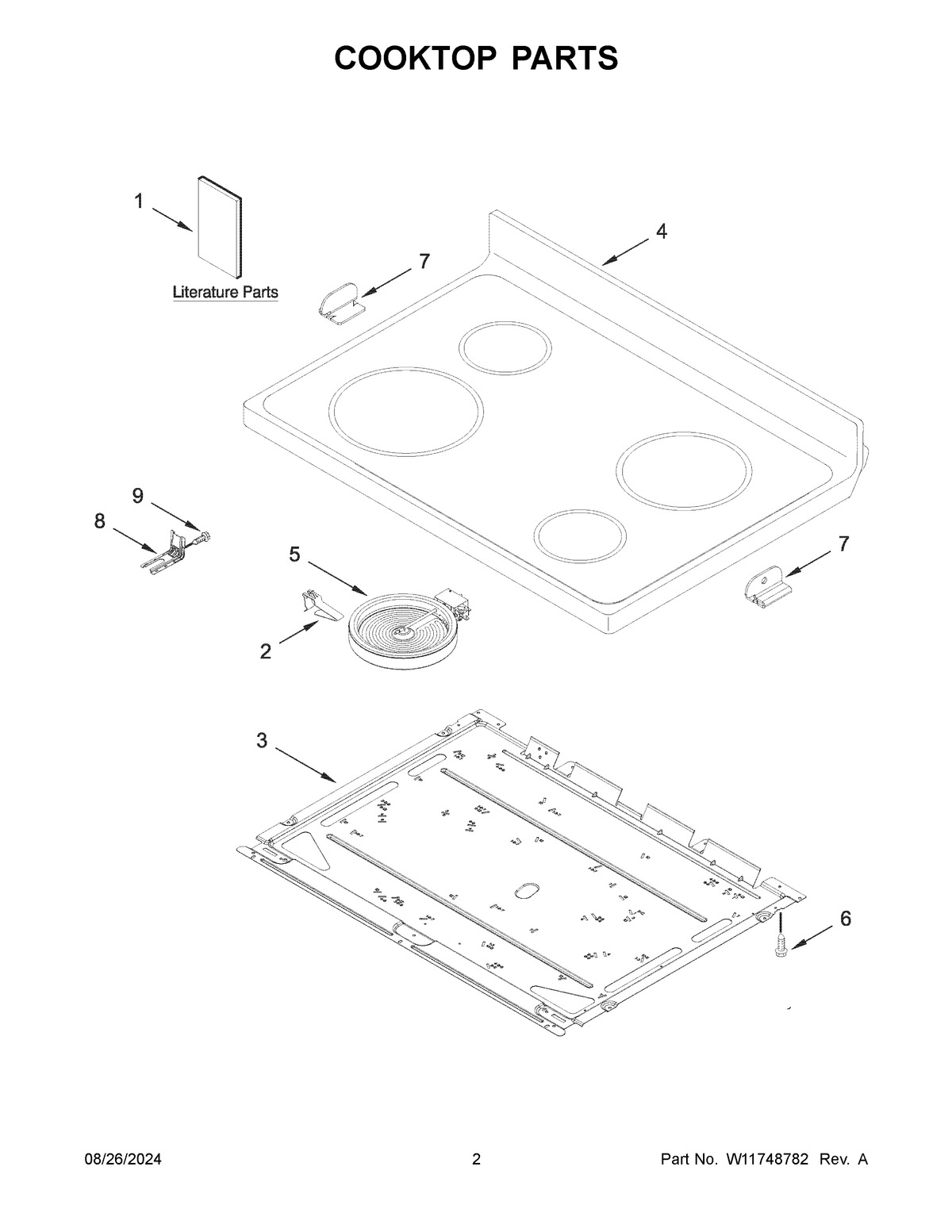

AER6603SFB6 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNS-WIRE
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
1	QUICK START GUIDE
1B	SHEET, TECH
1A	USER INSTRUCTIONS
2	W11663556 Whirlpool Spring Assembly
3	PAN
4	W10908095 Whirlpool Cooktop Assembly
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5A	ELMNT-SURF
5B	WP8273993 Whirlpool Surface Element
6	WP3196557 Whirlpool Screw
7	W10607641 Whirlpool Clip
7A	W10607642 Whirlpool Clip
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
