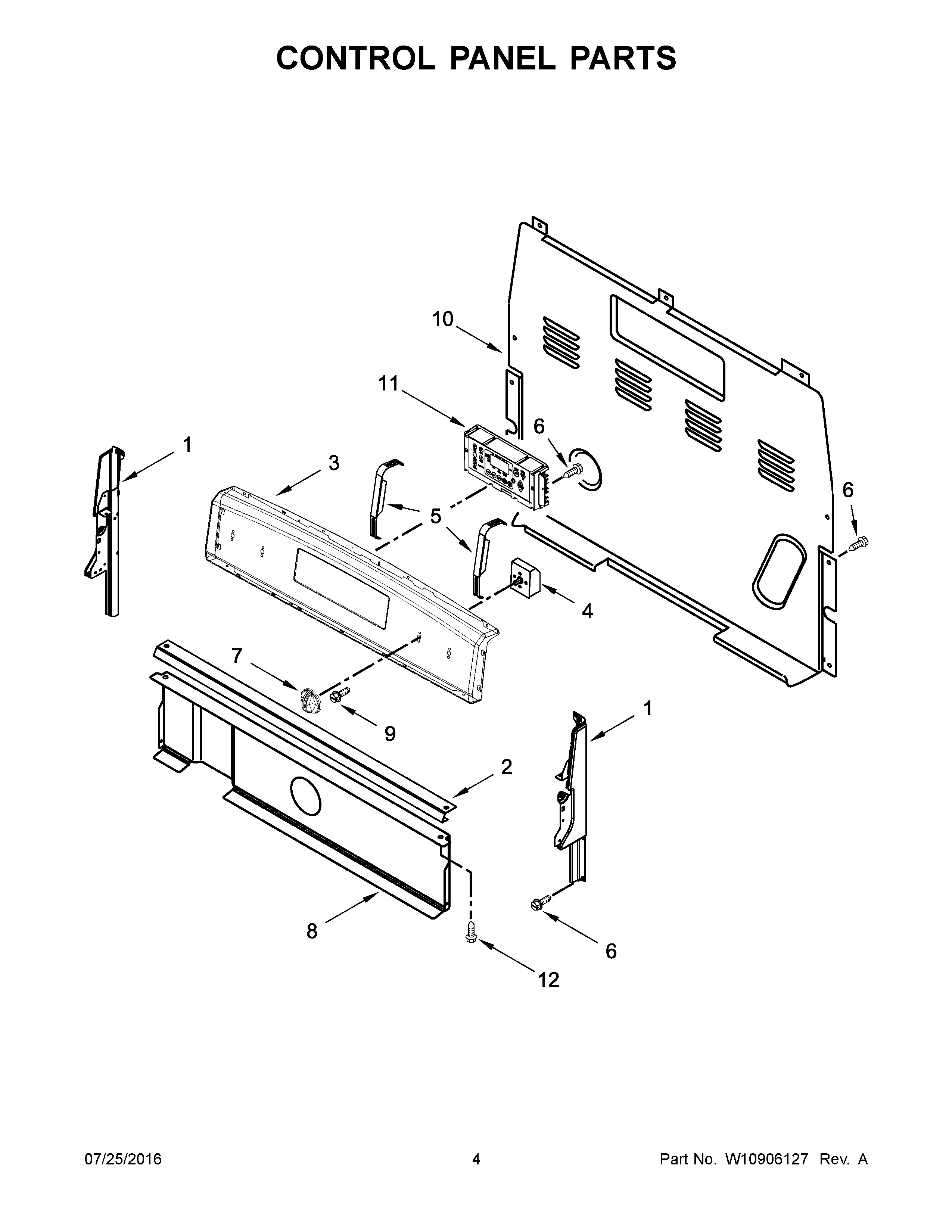

AER6603SFS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (LEFT))
1C	ENDCAP (WHITE (RIGHT))
1A	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	PANEL, CONSOLE (BLACK)
3A	PANEL, CONSOLE (WHITE)
3B	PANEL, CONSOLE (STAINLESS)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4B	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	BRACKET, CONTROL
6	SCREW
7B	KNOBS (STAINLESS)
7A	KNOBS (WHITE)
7	KNOBS (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11A	CONTROL (LCC95) (WHITE)
11	CONTROL (LCC95) (BLACK)
12	SCREW
