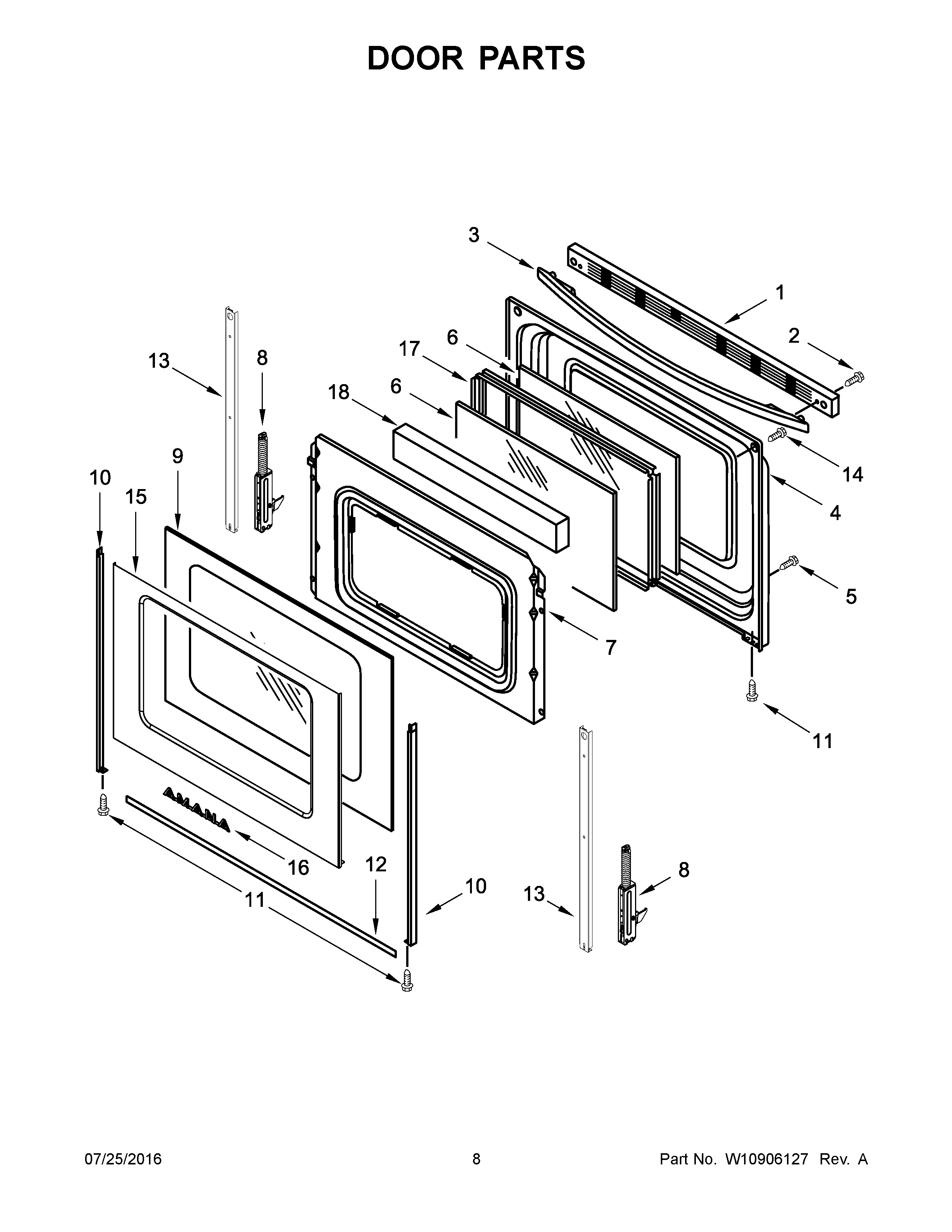

AER6603SFS0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
2A	SCREW
3B	HANDLE, DOOR (STAINLESS)
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8A	HINGE, DOOR (PASSIVE)
8	HINGE, ACTIVE (WITH SPRING)
9	GLASS, OUTER (BLACK)
9A	GLASS, OUTER (WHITE)
10	TRIM, SIDE (BLACK (LEFT))
10A	TRIM, SIDE (BLACK (RIGHT))
10B	TRIM, SIDE (WHITE (LEFT))
10C	TRIM, SIDE (WHITE (RIGHT))
11	SCREW
12A	TRIM, LOWER (WHITE)
12	TRIM, LOWER (BLACK)
13	STRAP, DOOR
14	SCREW
15	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
16A	BADGE (WHITE)
16B	BADGE (STAINLESS)
16	BADGE (BLACK)
17	FRAME, GLASS
18	INSULATION, DOOR STRIP
