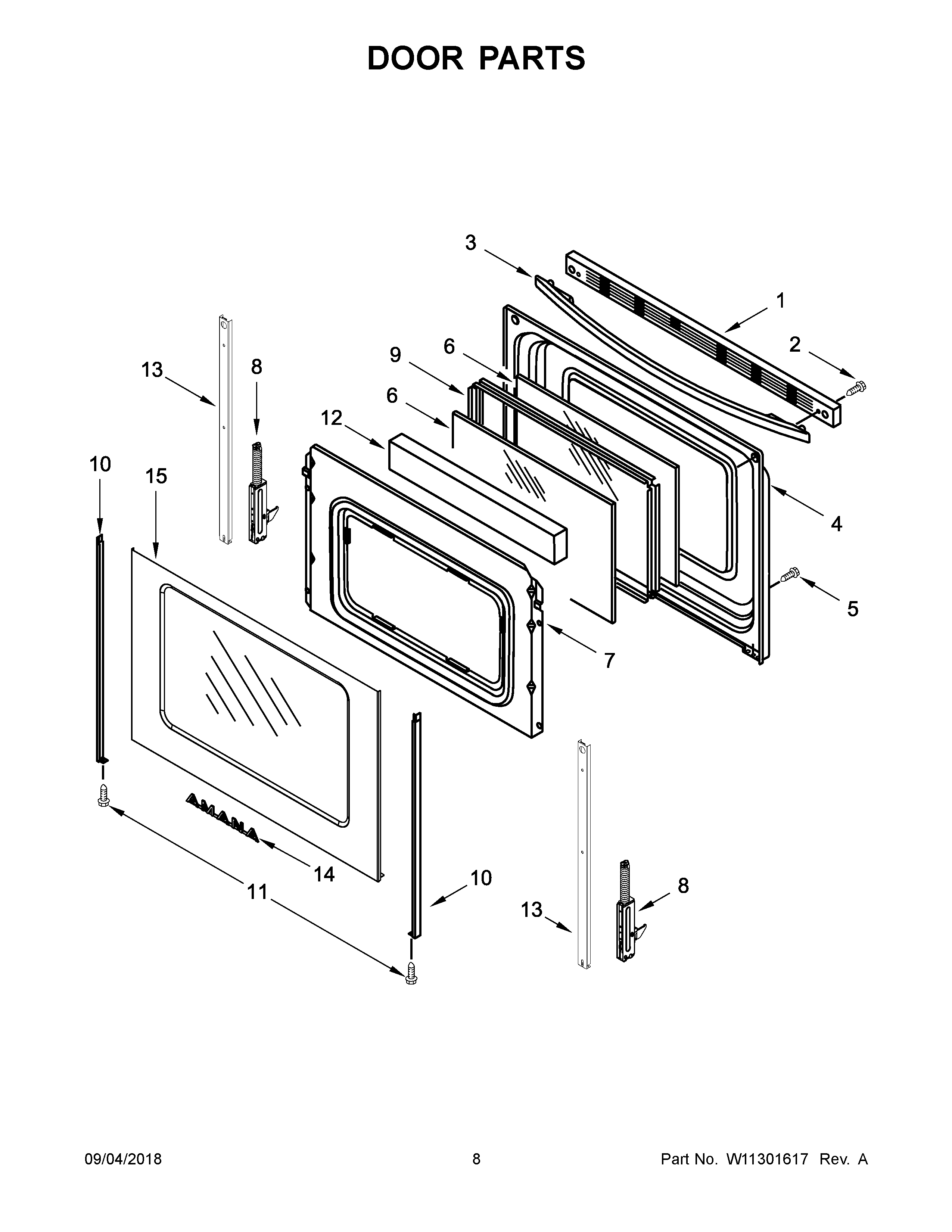

AER6603SFS2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE (WITH SPRING)
8A	HINGE, DOOR (PASSIVE)
9	FRAME, GLASS
10	TRIM, SIDE (BLACK (LEFT))
10A	TRIM, SIDE (BLACK (RIGHT))
11	SCREW
12	INSULATION, DOOR STRIP
13	STRAP, DOOR
14	BADGE (STAINLESS)
15	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
