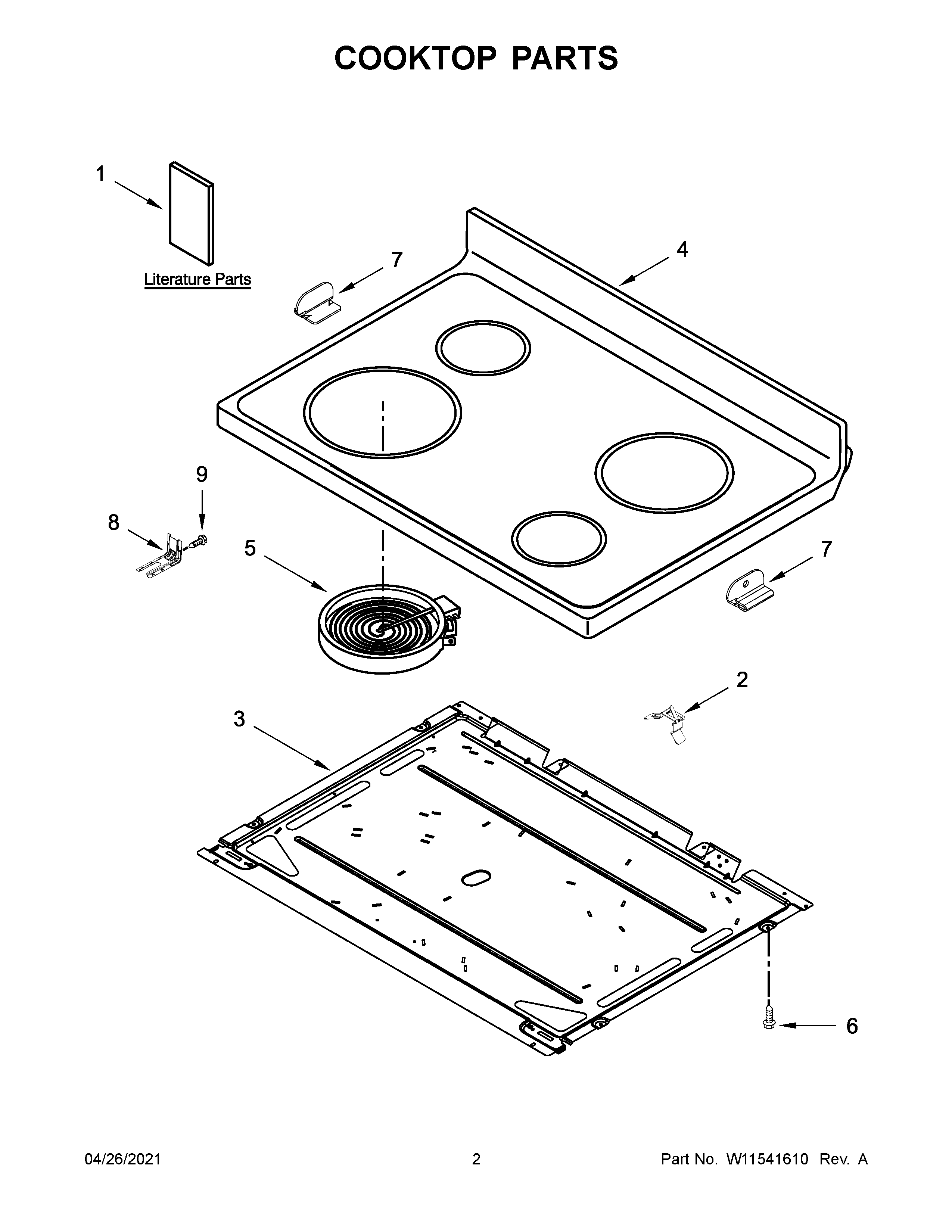

AER6603SFS3 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNS-WIRE
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1GUIDE, USE AND CARE
1BSHEET, TECH
1AINSTALLATION INSTRUCTIONS
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10908095 Whirlpool Cooktop Assembly
5AELMNT-SURF
5W11517959 Whirlpool Electric Range Radiant Surface Element
5BWP8273993 Whirlpool Surface Element
6WP3196557 Whirlpool Screw
7W10607641 Whirlpool Clip
7AW10607642 Whirlpool Clip
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
