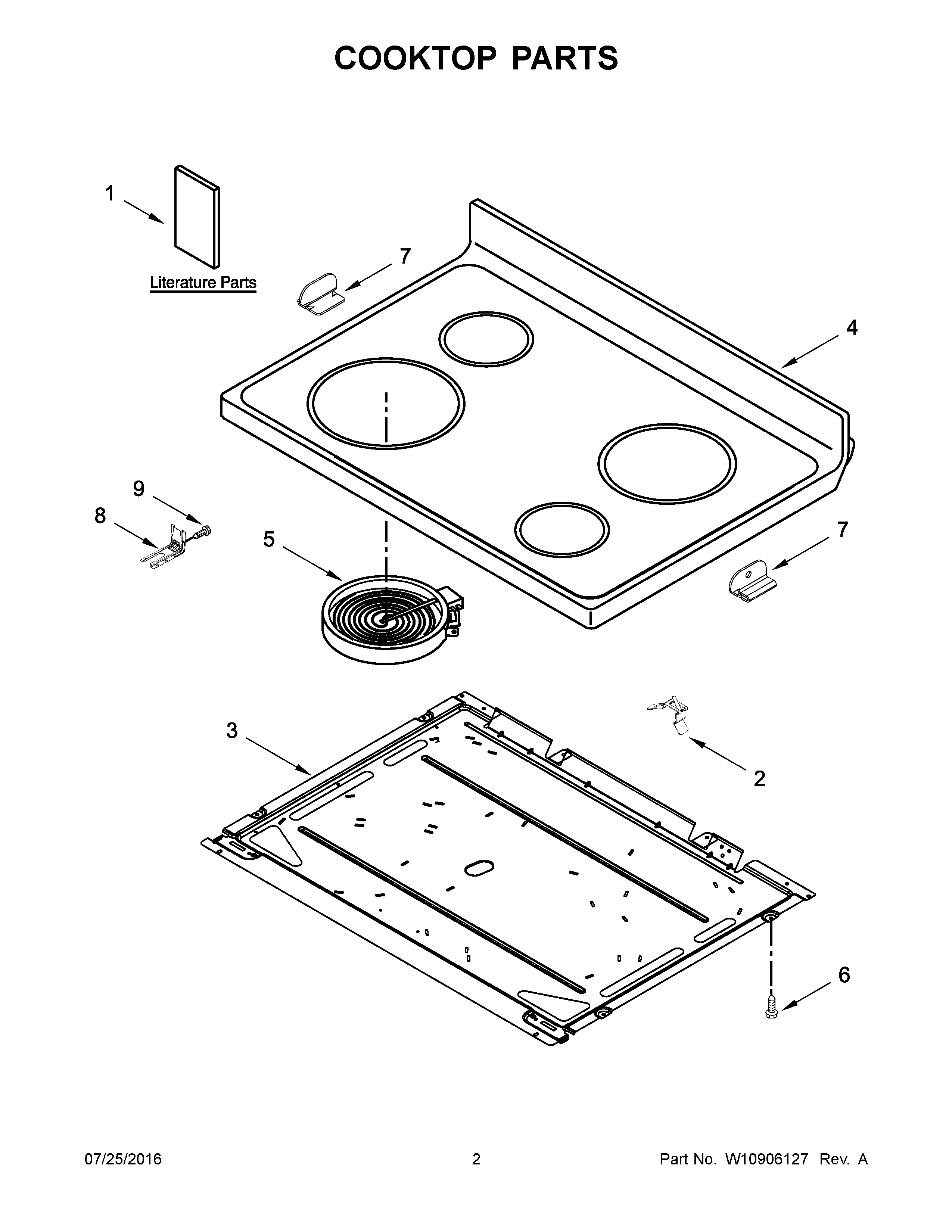

AER6603SFW0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, WIRE (MAIN)
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
1B	TIPS, SAFE COOKING (ENGLISH)
1A	GUIDE, USE AND CARE
1C	SHEET, TECH
1	MAY W10403811
2	SPRING, ELEMENT
3	PAN, RADIANT ELEMENT
4A	COOKTOP (WHITE)
4	COOKTOP (BLACK)
5B	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
5	ELEMENT (3000/1400W) (LEFT FRONT)
5A	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6	SCREW
7A	BRACKET, COOKTOP (RIGHT)
7	BRACKET, COOKTOP (LEFT)
8	BRACKET, ANTI-TIP
9	SCREW, ANTI-TIP KIT
