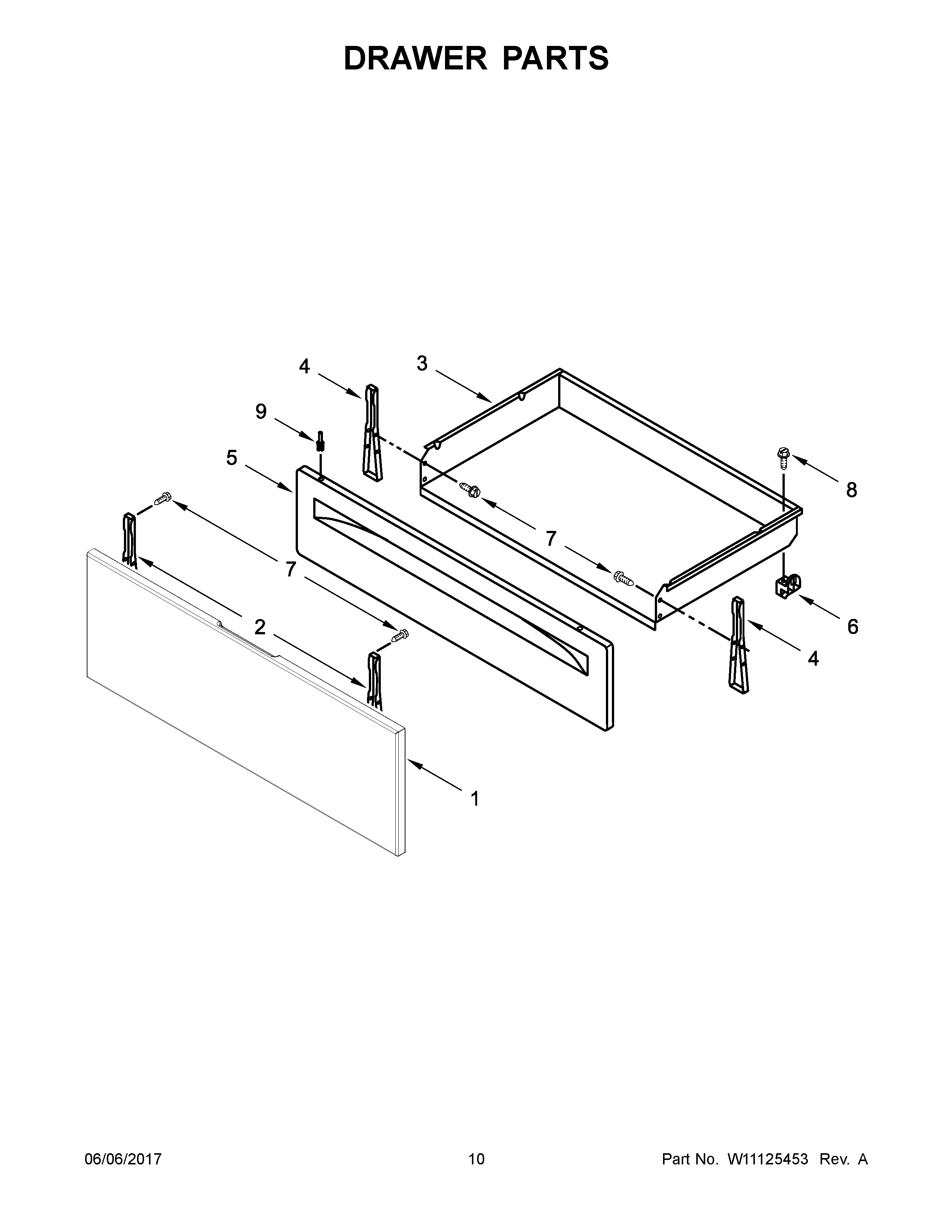

AER6603SFW1 06 – DRAWER PARTS

Written by

Products

Position	Product
1	PANEL, DRAWER FRONT (STAINLESS)
2	BRACKET, MOUNTING DRAWER
3	DRAWER, STORAGE
4	BRACKET, MOUNTING DRAWER
5	PANEL, DRAWER FRONT (BLACK)
5A	PANEL, DRAWER FRONT (WHITE)
6	GLIDE, DRAWER REAR
6A	GLIDE, DRAWER FRONT
7	SCREW
8	SCREW
9A	RIVET, PUSH (WHITE)
9	RIVET, PUSH (BLACK)
