AER6603SFW6 02 – COOKTOP PARTS

AER6603SFW6 02 – COOKTOP PARTS

Written by

in

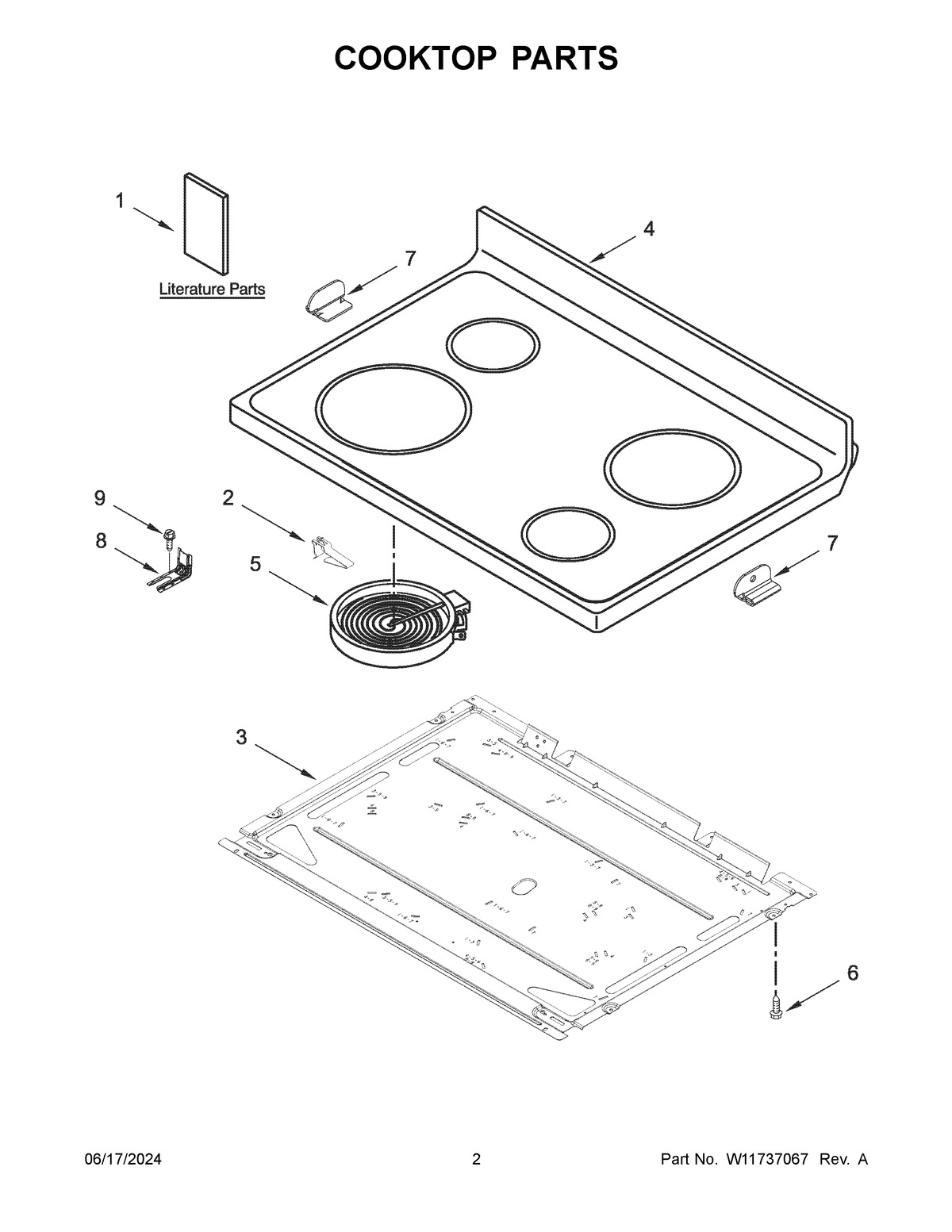

AER6603SFW6 02 – COOKTOP PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11596058 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIHARNS-WIRE
1QUICK START GUIDE
1BSHEET, TECH
1AUSER INSTRUCTIONS
2W11663556 Whirlpool Spring Assembly
3PAN
4W10908094 Whirlpool Cooktop
5BWP8273993 Whirlpool Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7W10607641 Whirlpool Clip
7AW10607642 Whirlpool Clip
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
