AER6603SMS0 03 – CONTROL PANEL PARTS

AER6603SMS0 03 – CONTROL PANEL PARTS

Written by

in

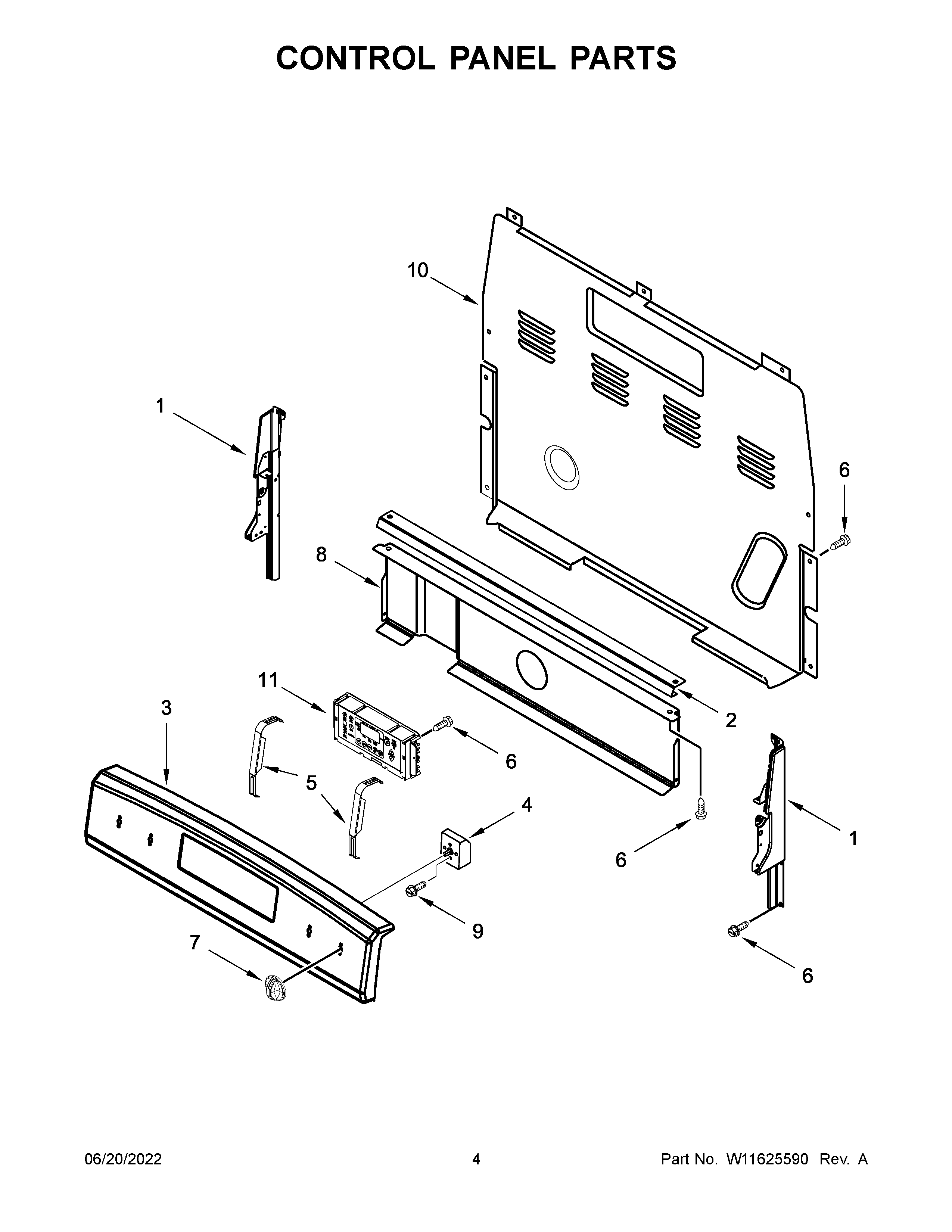

AER6603SMS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3W11247666 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4ASWITCH-INF
4BSWITCH-INF
5W11230932 Whirlpool Bracket Mounting
6SCREW
7W11210997 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W11594204 Whirlpool Electronic Control Board + Core
