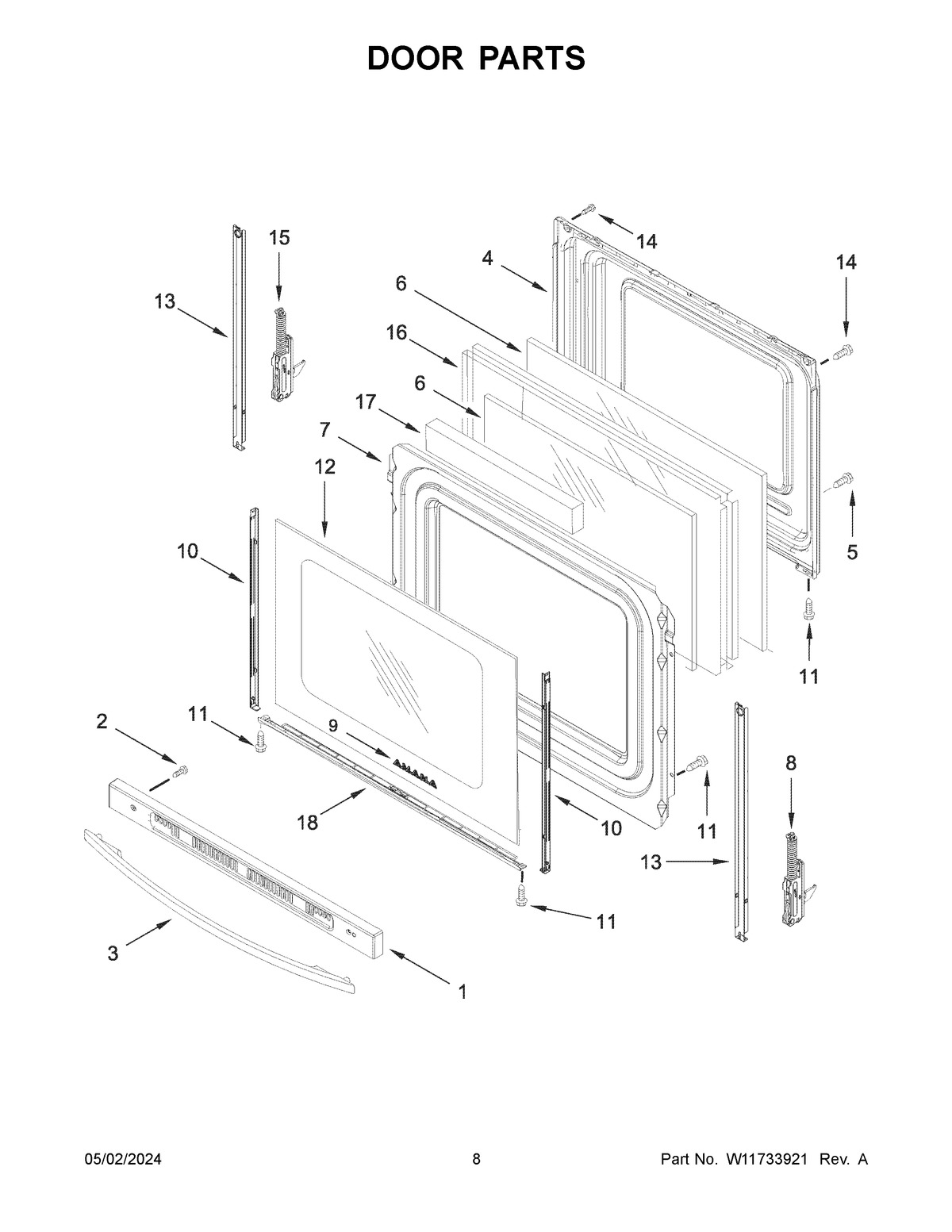

AER6603SMS1 05 – DOOR PARTS

AER6603SMS1 05 – DOOR PARTS

Written by

in

AER6603SMS1 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2W11396735 Whirlpool Screw
3WPW10144883 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
9W11240541 Whirlpool Nameplate
10W10761018 Whirlpool Dishwasher Left Door Trim
10AW10761014 Whirlpool Right Door Trim
11WP355214 Whirlpool Screw
12W11627546 Whirlpool Glass Door
13W11502236 Whirlpool Door Trim
14WPW10200660 Whirlpool Range Oven Door Handle Screw
15WPW10299227 Whirlpool Range Door Hinge
16WPW10316950 Whirlpool Window Frame
17WPW10278991 Whirlpool Insulation
18W11440159 Whirlpool Mounting Bracket
