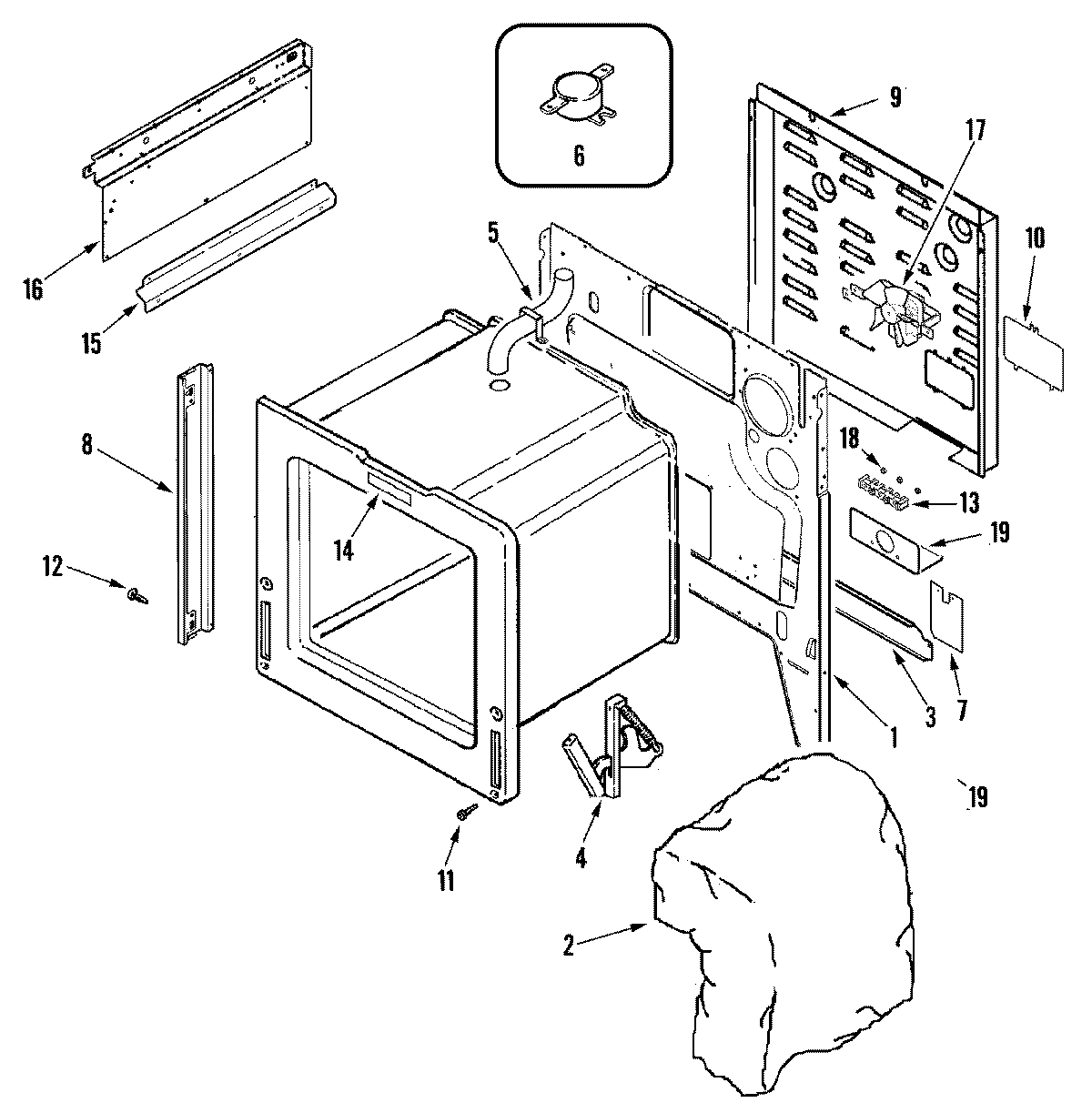

AES1350BAW 01 – BODY

AES1350BAW 01 – BODY

Written by

in

AES1350BAW 01 – BODY

Products

PositionProduct
1MAY 74010949
2MAY 74010887
3EXTENSION, MAIN BACK
4WP74011140 Whirlpool Oven Hinge
5MAY 74010817
5TUBE, VENT
6MAY 74010818
7INSULATOR, POWER CORD
8WP3608F138-71 Whirlpool Side Trim Assembly
94005F810-51 Whirlpool Access Cover
10COVER, TERMINAL BLOCK
11WP4159193 Whirlpool Screw
12WP74003976 Whirlpool Screw
13WPW10245259 Whirlpool Terminal Block
14PLUG, LOCK SLOT
15EXTENSION, HEAT SHEILD
16PANEL, SHIELD (LT)
162618F206-51 Whirlpool Panel
17WPW10586440 Whirlpool Blower Fan
18WP7103P027-60 Whirlpool Nut
19W10190166 Whirlpool Service Bracket
