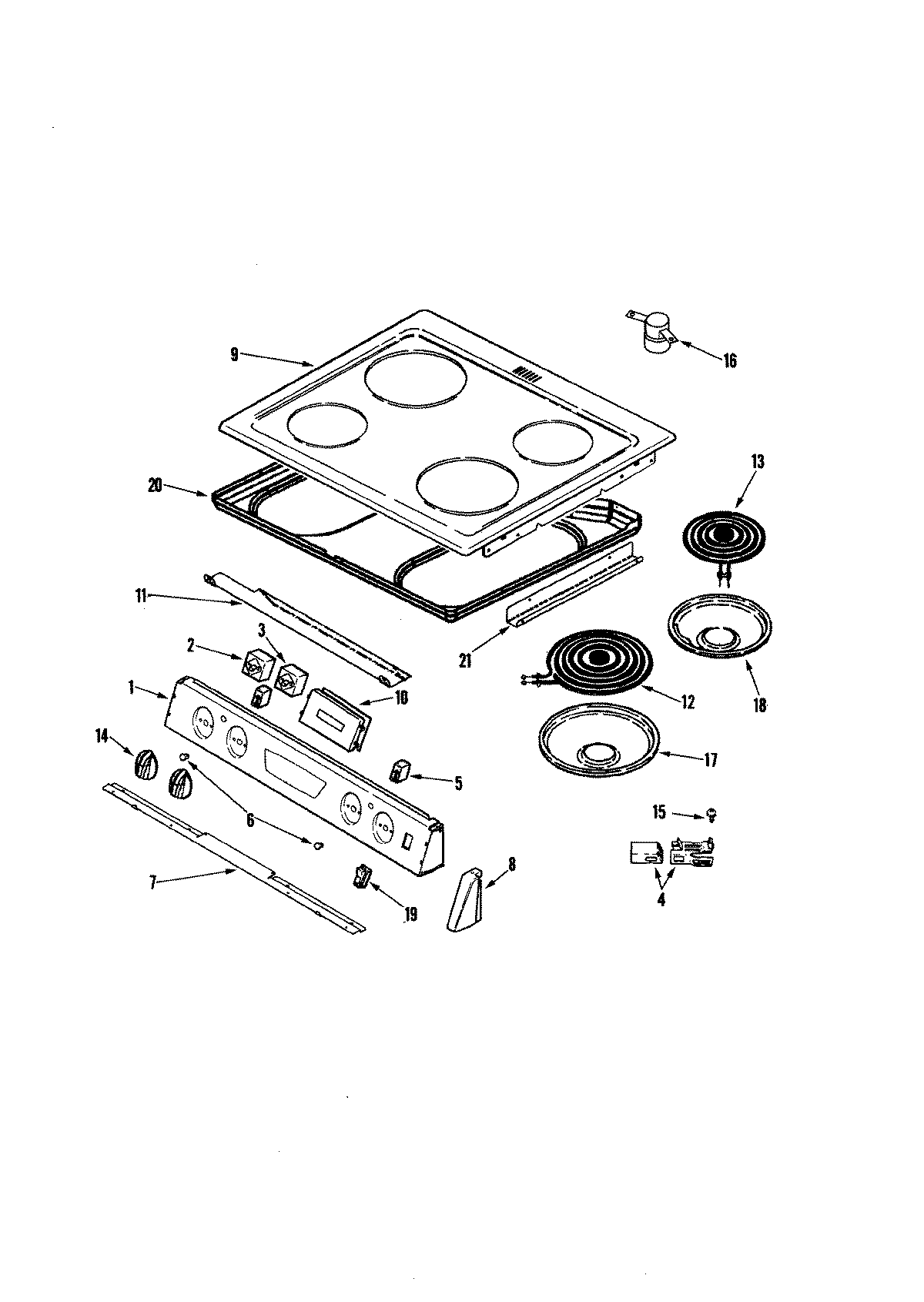

AES1350BAW 02 – CONTROL PANEL/TOP ASY

Products

Position	Product
1	MAY 74010888
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP7403P239-60 Whirlpool Oven Switch
3	SCREW
4	12001676 Whirlpool Range Surface Burner Receptacle Kit
5	WP74004153 Whirlpool Indicator Light
6	WP7730P011-60 Whirlpool Indicator Lens
7	SUPPORT, MANIFOLD PANEL
8	CAP, END (WHT-RT)
8	CAP, END (WHT-LT)
9	2002M200-81 Whirlpool Cooktop
10	MAY 74010689
11	SHIELD, CONTROL
12	WPW10345410 Whirlpool Surface Element
13	WPW10259868 Whirlpool Surface Heating Element
15	SCREW (6ABX.25-ZN)
16	TUBE, VENT (UPR)
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	74008717 Whirlpool White Rocker Switch
20	MAY 74006046
21	MAY 74010894
