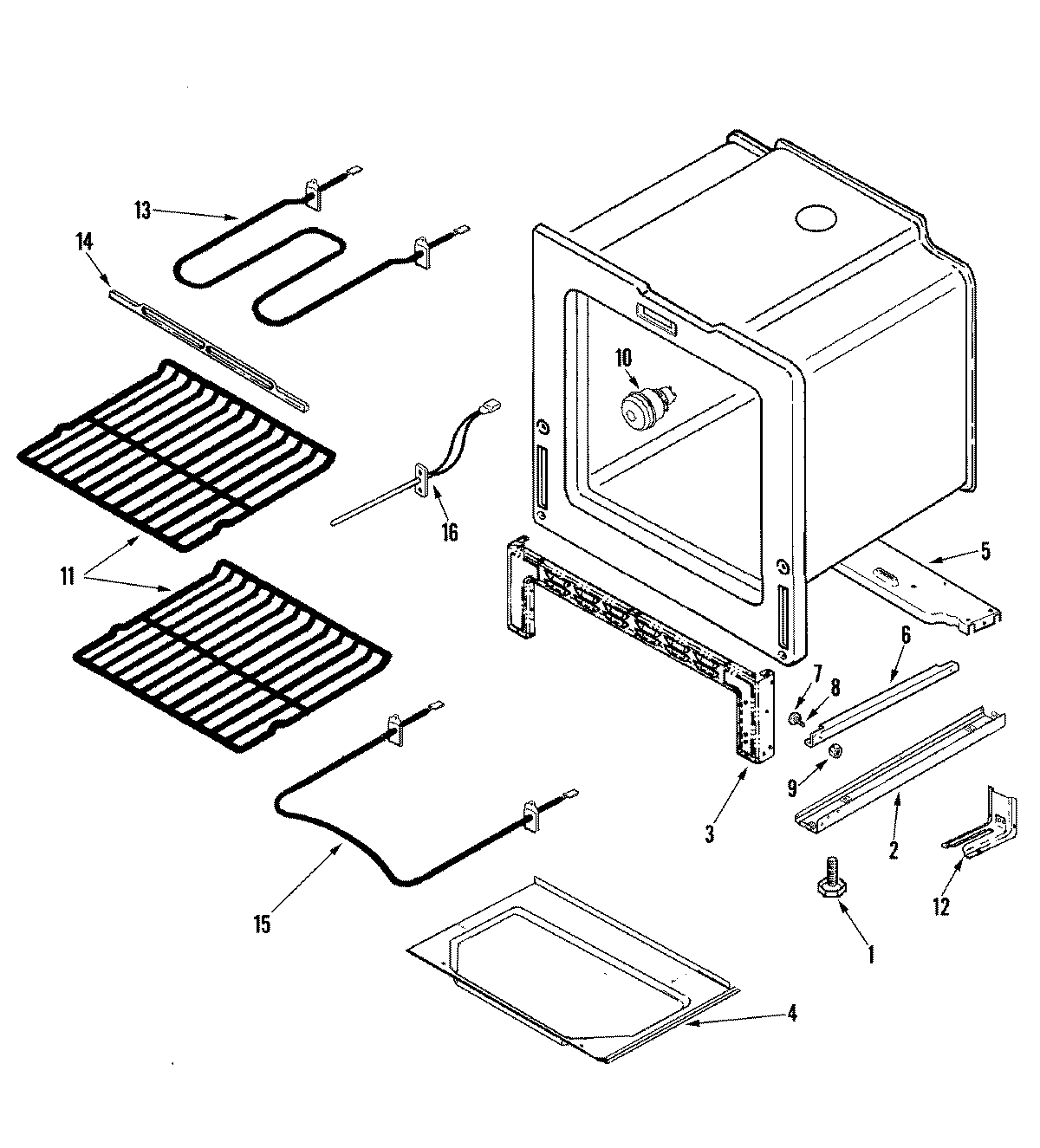

AES1350BAW 04 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	RETAINER, INSULATION (BOTTOM)
5	SUPPORT, VALVE REGULATOR
6	RUNNER, DRAWER
7	WP74004078 Whirlpool Door Roller
8	SHAFT, STORAGE DRAWER ROLLER
9	74005230 Whirlpool Oven Lock Nut (8-32)
10	LAMP ASSEMBLY
10	RANGE ONLY 40W 120V APPL BULB
11	WPW10282492 Whirlpool Oven Rack
12	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	WP7101P485-60 Whirlpool Anchor Tip
13	WPW10310249 Whirlpool Broil Element
14	SUPPORT, BROIL ELEMENT
15	WPW10310274 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
