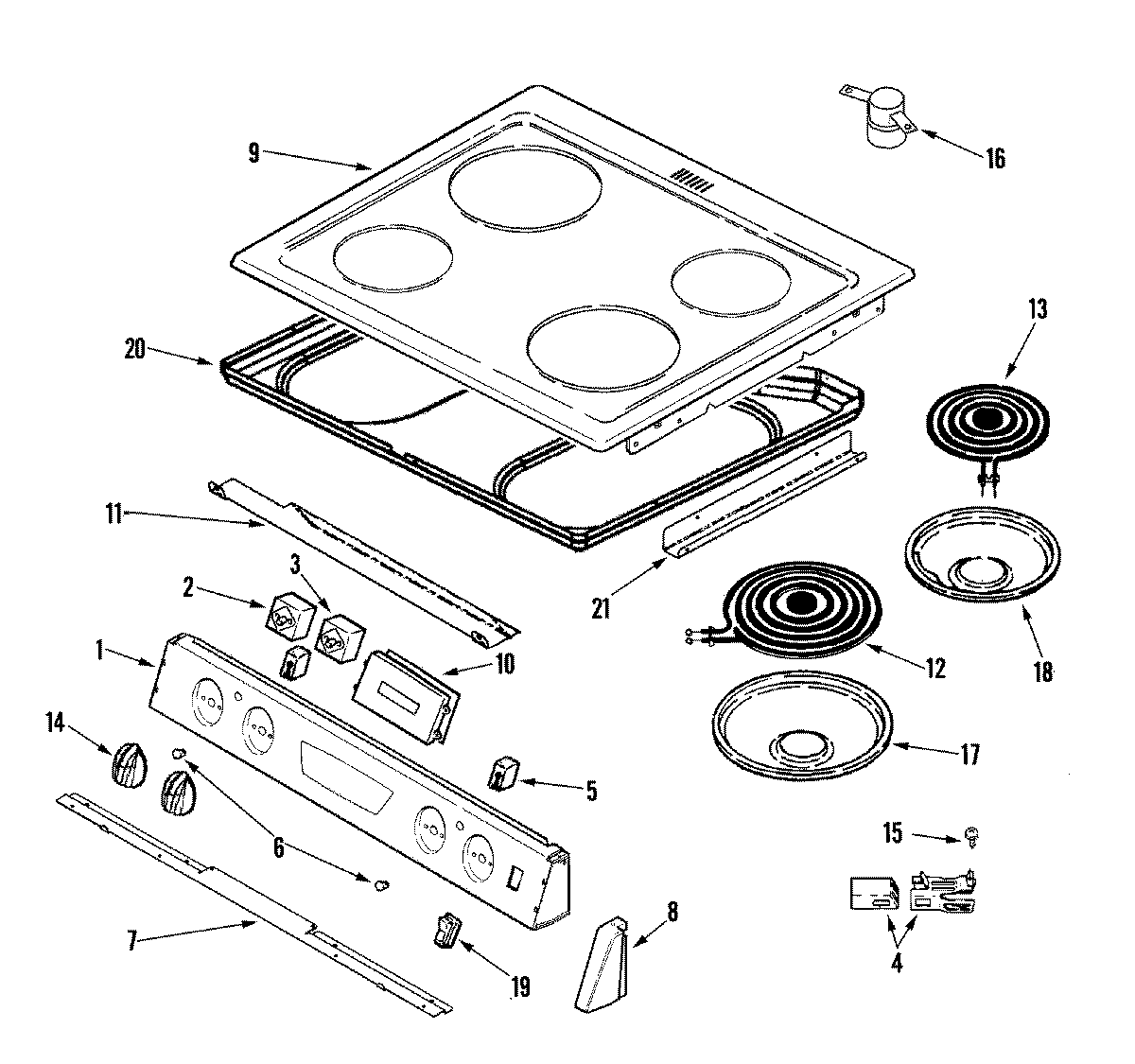

AES3540BAW 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74010888
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
412001676 Whirlpool Range Surface Burner Receptacle Kit
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (WHT-RT)
8CAP, END (WHT-LT)
92002M200-81 Whirlpool Cooktop
10MAY 74010690
11SHIELD, CONTROL
12WPW10345410 Whirlpool Surface Element
13WPW10259868 Whirlpool Surface Heating Element
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
1974008717 Whirlpool White Rocker Switch
20MAY 74006046
21MAY 74010894
