AES3760BAQ 01 – BODY

AES3760BAQ 01 – BODY

Written by

in

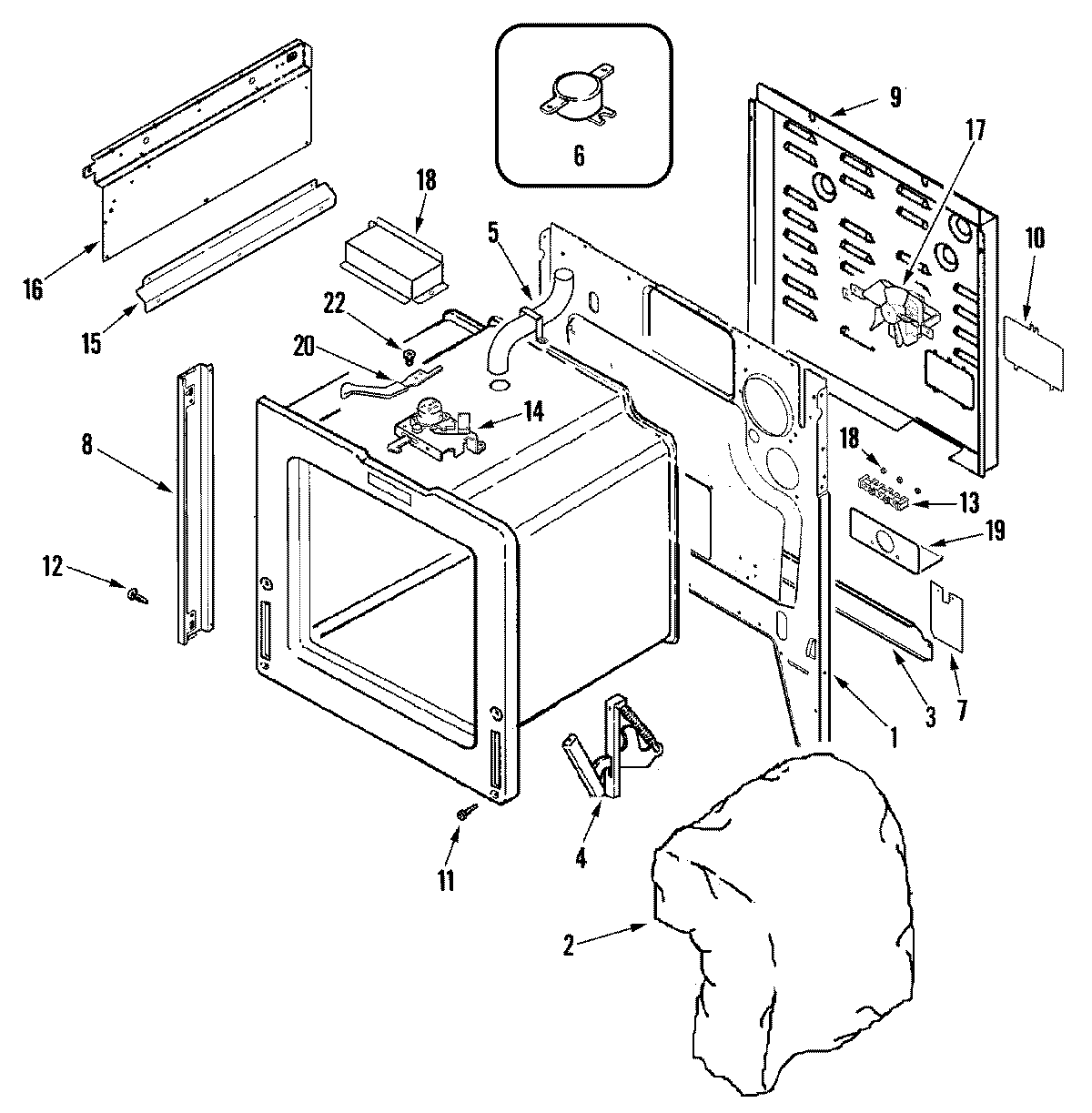

AES3760BAQ 01 – BODY

Products

PositionProduct
1MAY 74010949
2MAY 74010813
3EXTENSION, MAIN BACK
474011142 Whirlpool Stove Range Oven Door Hinge and Spring
5MAY 74010817
5TUBE, VENT
6MAY 74010818
7INSULATOR, POWER CORD
8TRIM, SIDE (BSQ)
94005F810-51 Whirlpool Access Cover
10COVER, TERMINAL BLOCK
11WP4159193 Whirlpool Screw
12WP74003976 Whirlpool Screw
13WPW10245259 Whirlpool Terminal Block
14MAY 74010897
15EXTENSION, HEAT SHEILD
162618F206-51 Whirlpool Panel
16PANEL, SHIELD (LT)
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19W10190166 Whirlpool Service Bracket
20LEVER, LATCH (GRY)
21WP7103P027-60 Whirlpool Nut
2274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
