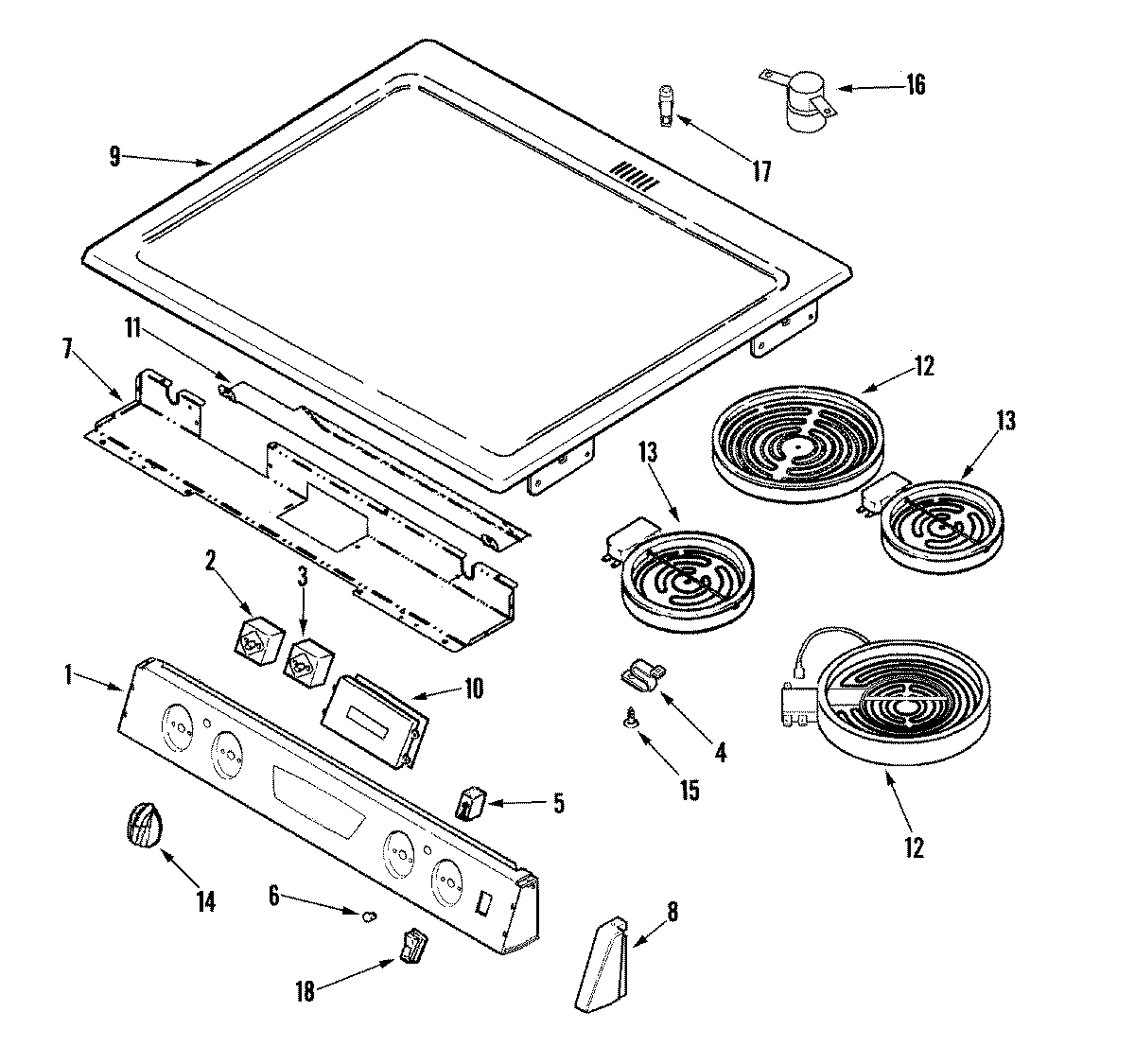

AES3760BAW 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74010888
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (WHT-RT)
8CAP, END (WHT-LT)
9MAY 74010655
10MAY 74010692
11SHIELD, CONTROL
12W10823696 Whirlpool Radiant Surface Element
13W10823711 Whirlpool Surface Element Left Front and Right Rear
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
177407P193-60 Whirlpool Light Indicator
1874008717 Whirlpool White Rocker Switch
