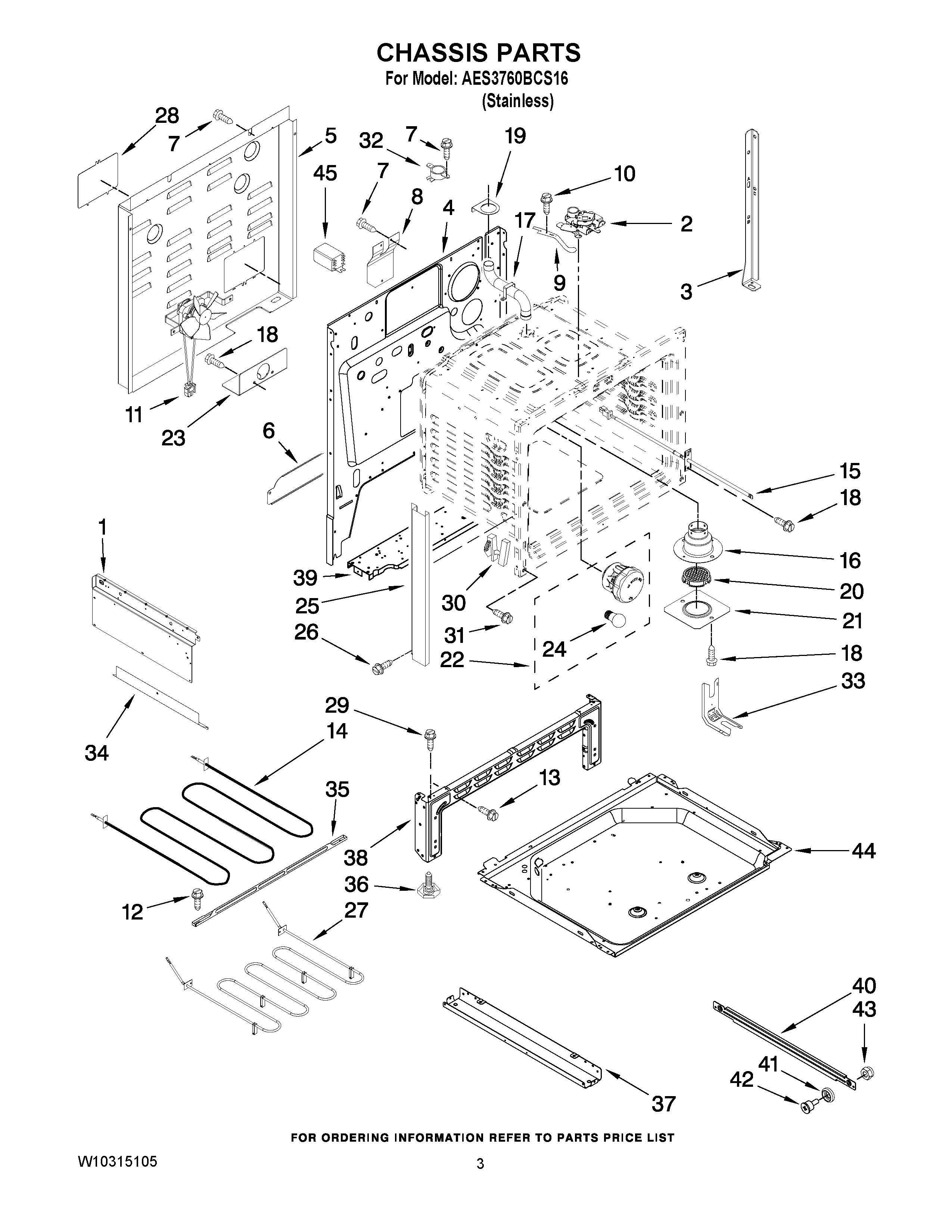

AES3760BCS16 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION (RETAINER, WRAP)
NI	MAY 7002P471-60
NI	MAY 7002P456-60
NI	MAY 7002P445-60
1	MAY 2618F201-51
1	MAY 2618F206-51
2	MAY 8002P099-60
3	MAY 3807F732-51
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 3826F066-51
8	MAY 7003P101-60
9	LEVER LATCH (BLACK)
10	Screw (Black) (2)
11	MAY 7427P094-60
12	MAY 7101P626-60
14	MAY 7406P218-60
15	MAY 7430P042-60
16	MAY 8026P096-60
17	MAY 8026P085-60
18	MAY 7101P426- 60
19	MAY 3605F345-51
20	SCREEN, SMOKE ELM.
21	MAY 3605F344-45
22	MAY 7407P182-60
23	MAY 3801F574-51
24	RANGE ONLY 40W 120V APPL BULB
25	TRIM, SIDE (BLACK (2))
27	MAY 7406P439-60
28	COVER, TERMINAL
29	MAY 7101P434-60
30	MAY 7106P141-60
31	MAY 7101P336-60
32	SWITCH, HI-LIMIT
33	BRACKET, ANTI-TIP
34	MAY 3826F064-51
35	MAY 3807F494-45
36	LEG, LEVELING
37	MAY 4020W035-80
38	PEDESTAL, FRONT
39	SUPPORT
40	RUNNER, DRAWER (2)
41	MAY 8014P022-60
42	MAY 7118P032-60
43	MAY 7103P190-60
44	MAY 3804F231-51
45	RELAY, AUXILARY
