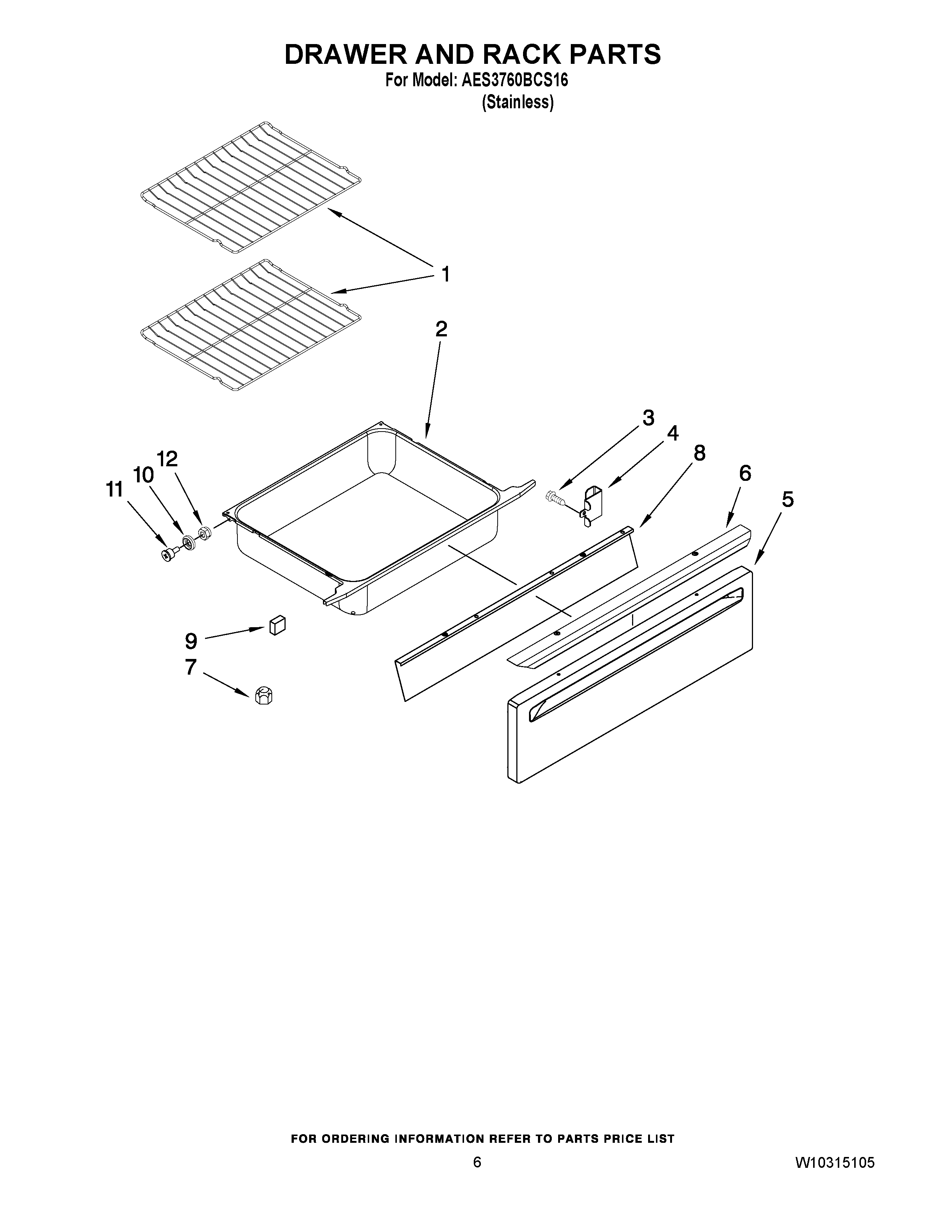

AES3760BCS16 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN (2)
2	DRAWER, STORAGE
3	WP7101P072-60 Whirlpool Screw
4	MAY 3801F887-51
5	PANEL, DRAWER (STAINLESS)
6	HANDLE, DRAWER
7	WPW10131078 Whirlpool Nut Assembly
8	LINING, DRAWER PANEL
9	MAY 8010P130-60
10	MAY 8014P022-60
11	MAY 7118P032-60
12	WP488130 Whirlpool Air Conditioner Nut
