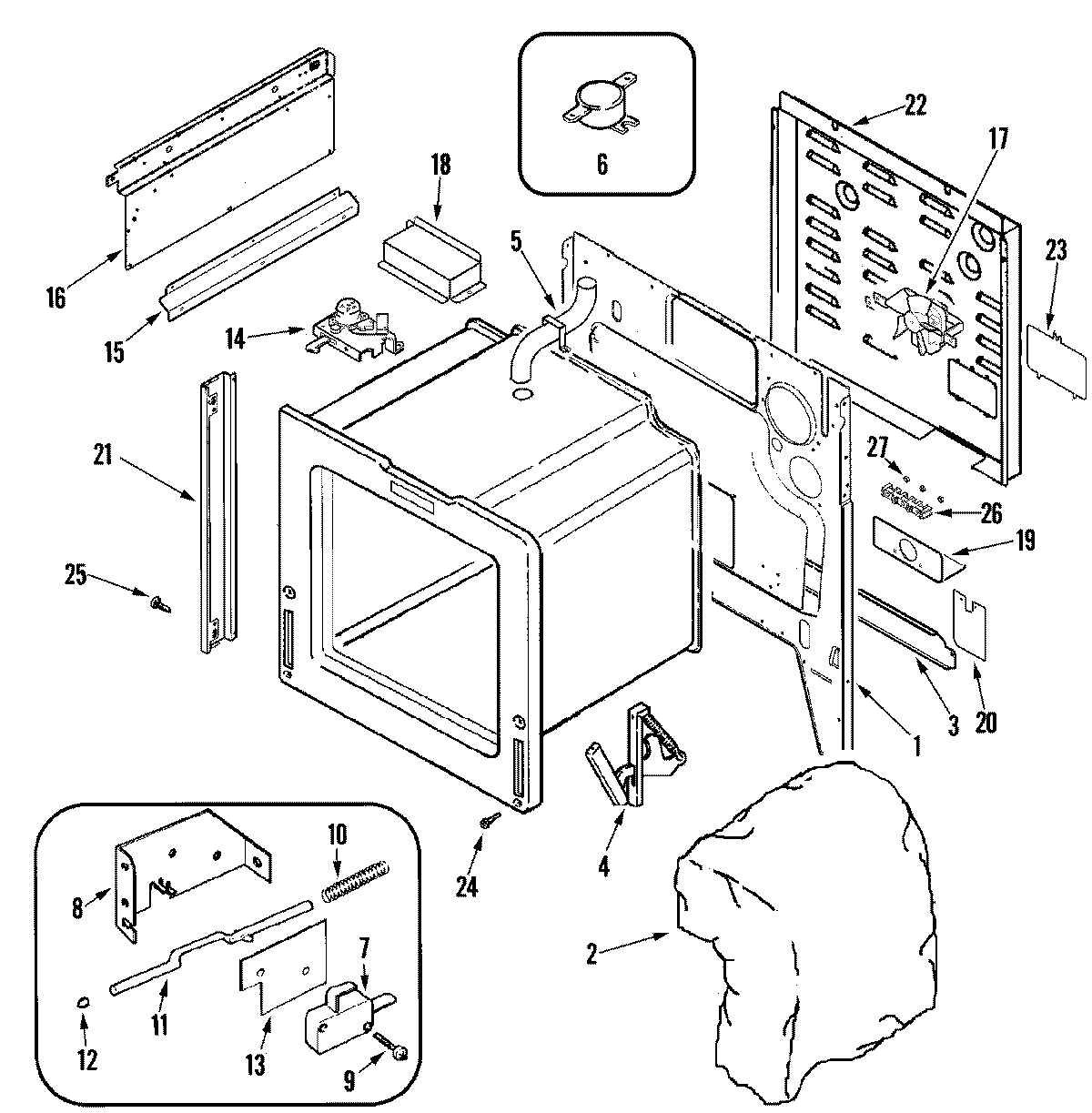

AES5730BAN 01 – BODY

AES5730BAN 01 – BODY

Written by

in

AES5730BAN 01 – BODY

Products

PositionProduct
1MAY 74010949
2MAY 74010813
3EXTENSION, MAIN BACK
474011142 Whirlpool Stove Range Oven Door Hinge and Spring
5TUBE, VENT
5MAY 74010817
6MAY 74010818
7WP74008263 Whirlpool Door Switch
7SWTCH-LITE
8BRACKET, SWITCH ACTUATOR
9MAY 22002368
11ROD, DOOR LIGHT SWITCH
12MAY 74001631
13MAY 74008264
1474010819 Whirlpool Latch Assembly
15EXTENSION, HEAT SHEILD
16PANEL, SHIELD (LT)
162618F206-51 Whirlpool Panel
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19W10190166 Whirlpool Service Bracket
20INSULATOR, POWER CORD
21TRIM, SIDE (BSQ)
224005F810-51 Whirlpool Access Cover
23COVER, TERMINAL BLOCK
24WP4159193 Whirlpool Screw
25WP74003976 Whirlpool Screw
26WPW10245259 Whirlpool Terminal Block
