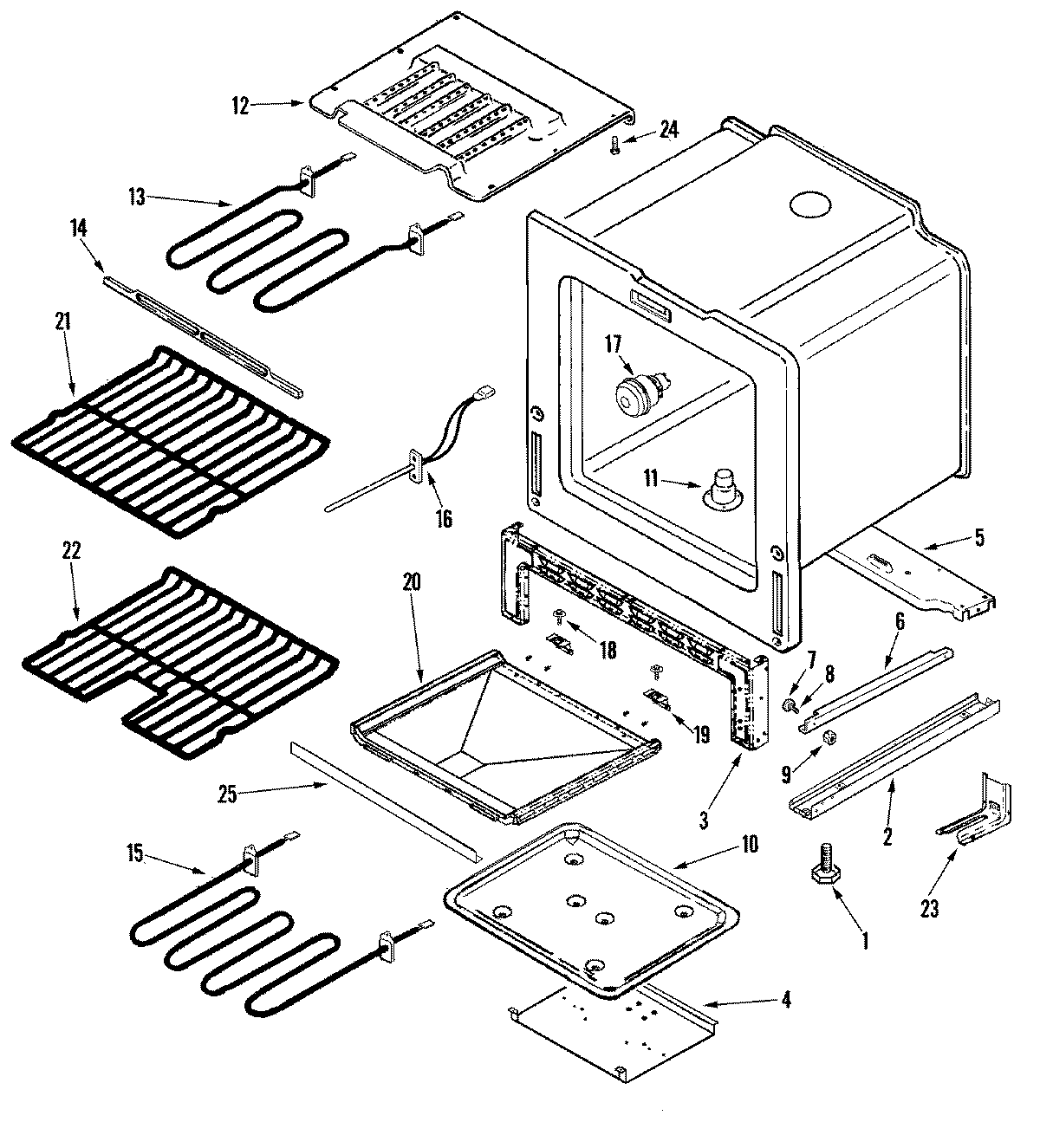

AES5730BAN 04 – OVEN/BASE

AES5730BAN 04 – OVEN/BASE

Written by

in

AES5730BAN 04 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4MAY 74006591
5SUPPORT, VALVE REGULATOR
6RUNNER, DRAWER
7WP74004078 Whirlpool Door Roller
8SHAFT, STORAGE DRAWER ROLLER
974005230 Whirlpool Oven Lock Nut (8-32)
10MAY 74010806
11PLATE, VENT COVER
11MAY 74010808
12MAY 74010810
13WP7406P218-60 Whirlpool Broil Element
14MAY 74003563
15WP7406P411-60 Whirlpool Bake Element
1612001656 Whirlpool Range Oven Temperature Sensor
17LAMP ASSEMBLY
17RANGE ONLY 40W 120V APPL BULB
19MAY 74010812
20MAY 74010853
21WPW10282492 Whirlpool Oven Rack
22RACK, SMART & EASY (30“)
23WP3801F656-51 Whirlpool Range Anti-Tip Bracket
23WP7101P485-60 Whirlpool Anchor Tip
24WP74003976 Whirlpool Screw
25MAY 74010807
