AEW14ATL1 ROOM AIR CONDITIONER

AEW14ATL1 ROOM AIR CONDITIONER

Written by

in

AEW14ATL1 ROOM AIR CONDITIONER

Products

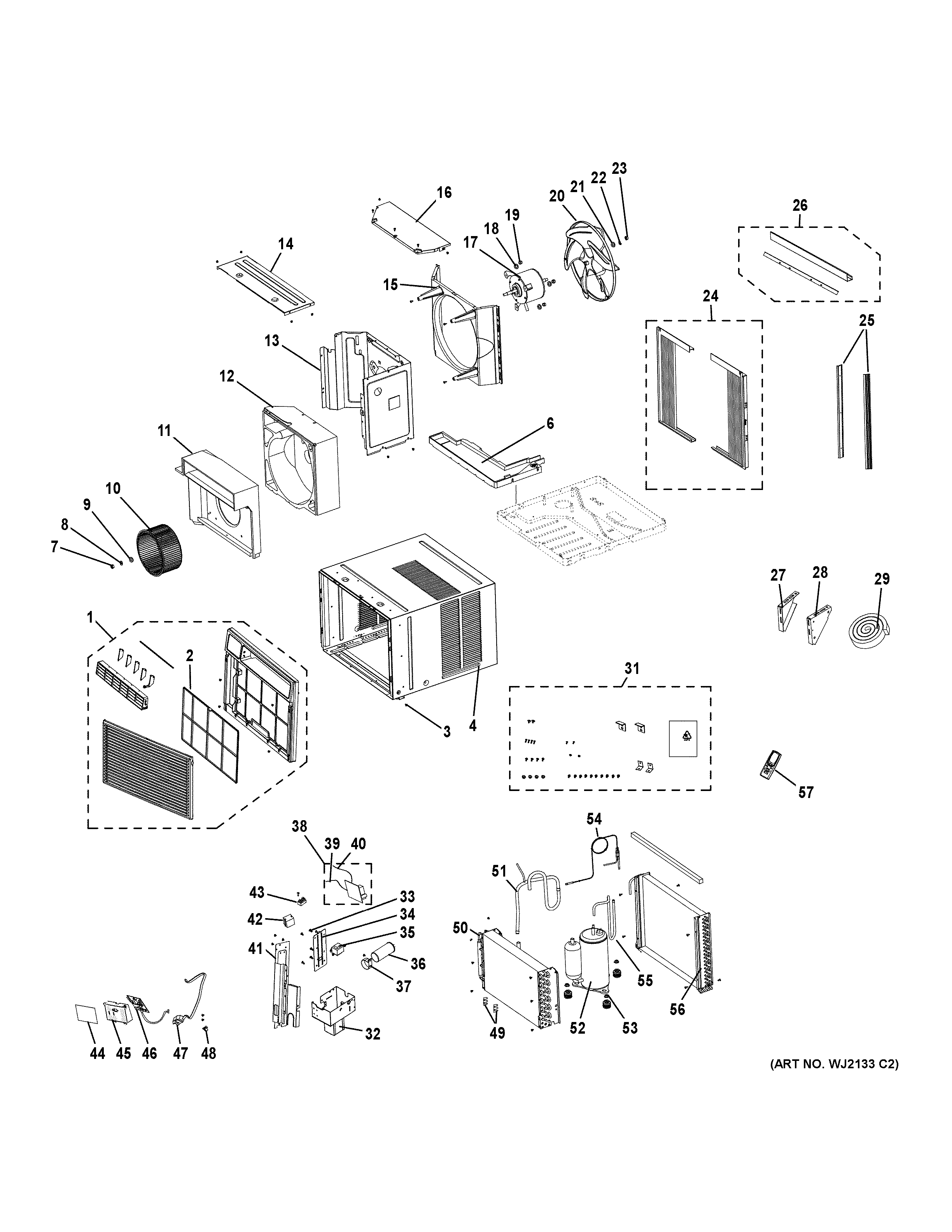

PositionProduct
1WJ82X10071 GE Front Panel Assembly
2WJ71X10668 GE Air Conditioner Filter Assembly
3WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
4WJ90X20266 GE Cabinet Assembly
6WJ05X10054 GE Air Conditioner Foam Water Tray
7WJ01X10265 GE Washer Nut
8WJ01X10266 GE Washer Assembly
9WJ43X10075 GE Gasket (Diameter 10mm)
10WJ73X10204 GE Centrifugal Fan
11WJ76X10307 GE Air Outlet Foam
12WJ76X10308 GE Air Conditioner Propeller Housing
13WJ66X10104 GE Motor Support Bracket
14WJ05X20182 GE Refrigerator Top Cover Board Sub-Assembly
15WJ79X10216 GE Condenser Cover
16WJ79X10217 GE Top Rear Cover
17WJ94X10334 GE Air Conditioner Fan Motor
18WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19WJ01X10329 GE Air Conditioner Nut
20WJ73X10190 GE Air Conditioner Axial Flow Fan
21WJ43X10076 GE Gasket Diameter 8mm
22WJ43X10077 GE Gasket (Diameter 8mm)
23WJ01X10374 GE Levo Nut (M8)
24WJ69X10018 GE Air Conditioner Curtain Assembly
25WJ68X10065 GE Cabinet Support
26WJ82X20183 GE Top Guide
27WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
28WJ67X20198 GE Right Case Mount Bracket
29WJ43X10079 GE Window Top Foam Gasket
31WJ01X10376 GE Room Air Conditnr Installation
32WJ26X20267 GE Electric Box Subassembly
33WJ01X10354 GE Support PCB
34WJ71X20269 GE Electric Box Side Plate
35WJ27X10170 GE Transformer
36WJ20X10201 GE Air Conditioner Capacitor
37WJ02X20201 GE Capacitor Clamp
38WJ26X20543 GE Air Conditioner Main Board
39SENSOR TUBE
40WJ26X25108 GE Temperature Sensor
41WJ05X20553 GE Front Clapboard
42WJ24X20540 GE Relay
43TERMINAL BOARD
44WJ01X20176 GE Air Conditioner Membrane
45WJ26X20179 GE Air Conditioner Remote Control Cover
46WJ26X20184 GE Air Conditioner Room Display
47WJ35X10170 GE Air Conditioner Power Cord
48CABLE CLAMP
49WJ02X10036 GE Sensor Support
50EVAPORATOR ASSY
51INHALATION TUBE SUB-ASSY
52WJ98X20165 GE Compressor and Fittings
53WJ01X10335 GE Washer Nut M8
54WJ53X20558 GE Capillary Sub-Assembly
55WJ49X20557 GE Discharge Tube
56WJ87X10296 GE Condenser Assembly
57WJ26X20522 GE Air Conditioner Remote Controller
