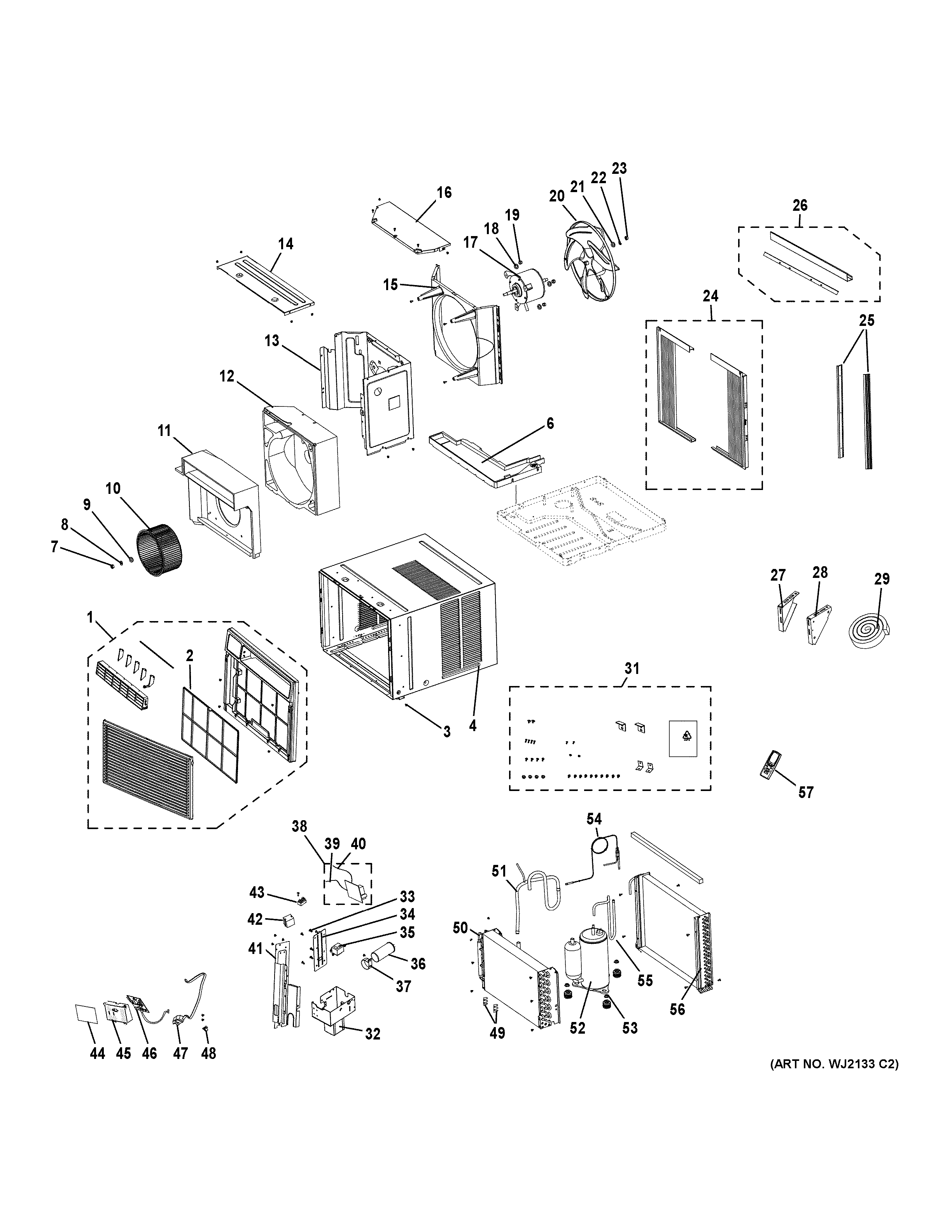

AEW14AVL1 ROOM AIR CONDITIONERadmin2025-04-26T08:49:03+00:00AEW14AVL1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ82X10071 GE Front Panel Assembly2WJ71X10668 GE Air Conditioner Filter Assembly3WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC4WJ90X20266 GE Cabinet Assembly6WJ05X10054 GE Air Conditioner Foam Water Tray7WJ01X10265 GE Washer Nut8WJ01X10266 GE Washer Assembly9WJ43X10075 GE Gasket (Diameter 10mm)10WJ73X10204 GE Centrifugal Fan11WJ76X10307 GE Air Outlet Foam12WJ76X10308 GE Air Conditioner Propeller Housing13WJ66X10104 GE Motor Support Bracket14WJ05X20182 GE Refrigerator Top Cover Board Sub-Assembly15WJ79X10216 GE Condenser Cover16WJ79X10217 GE Top Rear Cover17WJ94X10334 GE Air Conditioner Fan Motor18WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)19WJ01X10329 GE Air Conditioner Nut20WJ73X10190 GE Air Conditioner Axial Flow Fan21WJ43X10076 GE Gasket Diameter 8mm22WJ43X10077 GE Gasket (Diameter 8mm)23WJ01X10374 GE Levo Nut (M8)24WJ69X10018 GE Air Conditioner Curtain Assembly25WJ68X10065 GE Cabinet Support26WJ82X20183 GE Top Guide27WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case28WJ67X20198 GE Right Case Mount Bracket29WJ43X10079 GE Window Top Foam Gasket31WJ01X10376 GE Room Air Conditnr Installation32WJ26X20267 GE Electric Box Subassembly33WJ01X10354 GE Support PCB34WJ71X20269 GE Electric Box Side Plate35WJ27X10170 GE Transformer36WJ20X10201 GE Air Conditioner Capacitor37WJ02X20201 GE Capacitor Clamp38WJ26X20543 GE Air Conditioner Main Board39SENSOR TUBE40WJ26X25108 GE Temperature Sensor41WJ05X20553 GE Front Clapboard42WJ24X20540 GE Relay43TERMINAL BOARD44WJ01X20176 GE Air Conditioner Membrane45WJ26X20179 GE Air Conditioner Remote Control Cover46WJ26X20184 GE Air Conditioner Room Display47WJ35X10170 GE Air Conditioner Power Cord48CABLE CLAMP49WJ02X10036 GE Sensor Support50EVAPORATOR ASSY51INHALATION TUBE SUB-ASSY52WJ98X20165 GE Compressor and Fittings53WJ01X10335 GE Washer Nut M854WJ53X20558 GE Capillary Sub-Assembly55WJ49X20557 GE Discharge Tube56WJ87X10296 GE Condenser Assembly57WJ26X20522 GE Air Conditioner Remote Controller
