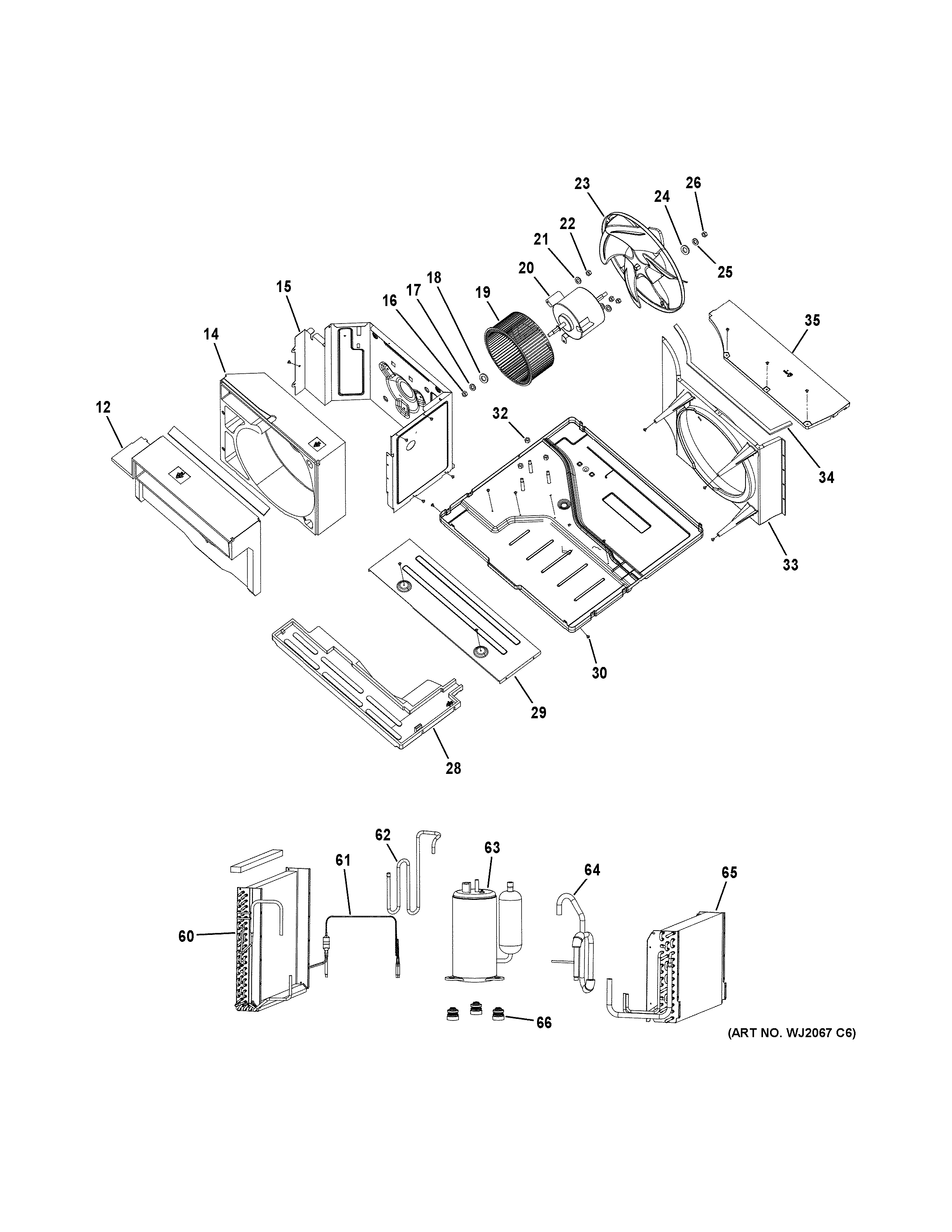

AEW24DSL1 BASE PAN & UNIT PARTS

Products

Position	Product
12	WJ76X10338 GE Foam Air Outlet
14	WJ76X10310 GE Propeller Housing
15	WJ82X10068 GE Motor Support
16	WJ01X10265 GE Washer Nut
17	WJ01X10266 GE Washer Assembly
18	WJ43X10075 GE Gasket (Diameter 10mm)
19	WJ73X10204 GE Centrifugal Fan
20	WJ95X10036 GE Air Conditioner Fan Motor
21	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
22	WJ01X10329 GE Air Conditioner Nut
23	WJ73X10190 GE Air Conditioner Axial Flow Fan
24	WJ43X10076 GE Gasket Diameter 8mm
25	WJ43X10077 GE Gasket (Diameter 8mm)
26	WJ01X10374 GE Levo Nut (M8)
28	WJ05X10064 GE Water Tray
29	WJ79X10244 GE Top Plate
30	SELF-TAPPING SCREW
32	WJ01X10335 GE Washer Nut M8
33	WJ79X10245 GE Condenser Cover
34	WJ66X10094 GE Sponge Rear Clapboard
35	WJ79X10246 GE Top Plate
60	WJ87X10263 GE Air Conditioner Condenser Assembly
61	CAPILLARY TUBES
62	DISCHARGE TUBE
63	COMPRESSOR ASM
64	WJ57X10056 GE Air Conditioner Suction Tube
65	WJ88X10240 GE Air Conditioner Evaporator Assembly
66	RUBBER GROMMET
