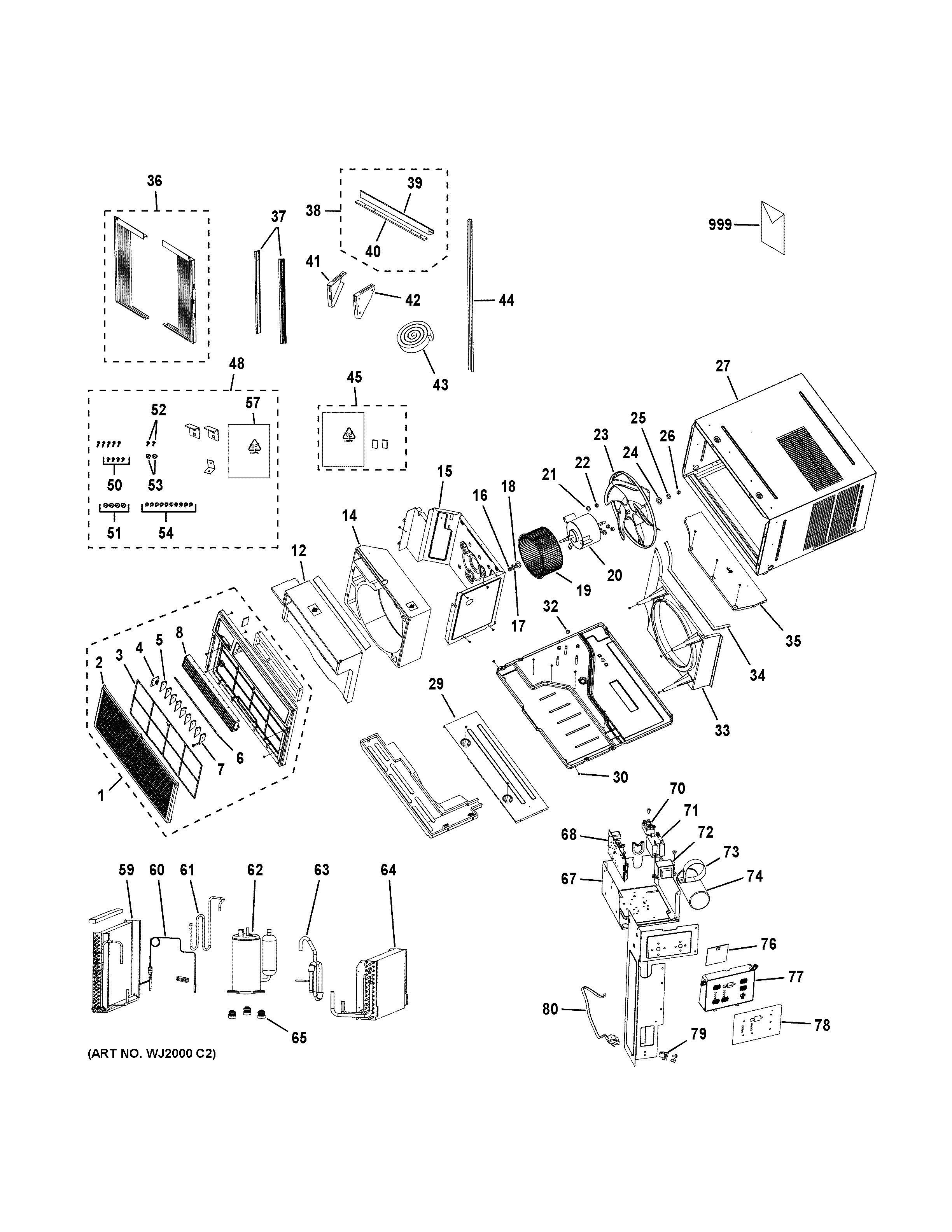

AEW25DNL1 ROOM AIR CONDITIONERadmin2025-04-26T08:49:12+00:00AEW25DNL1 ROOM AIR CONDITIONER ProductsPositionProduct1FRONT PANEL ASM2WJ71X10720 GE Front Panel3WJ71X10710 GE Air Conditioner Filter4SUPPORT OF LOUVER5SWING LOUVER6LINK VERTICAL LOUVER7SWING LOUVER 18AIR GUIDE FRAME12WJ76X10305 GE Foam Air Outlet14PROPELLER HOUSING15WJ82X10068 GE Motor Support16WJ01X10265 GE Washer Nut17WJ01X10266 GE Washer Assembly18WJ43X10075 GE Gasket (Diameter 10mm)19WJ73X10204 GE Centrifugal Fan20FAN MOTOR21WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)22WJ01X10329 GE Air Conditioner Nut23WJ73X10190 GE Air Conditioner Axial Flow Fan24WJ43X10076 GE Gasket Diameter 8mm25WJ43X10077 GE Gasket (Diameter 8mm)26WJ01X10374 GE Levo Nut (M8)27CABINET ASM29WJ79X10244 GE Top Plate30SELF-TAPPING SCREW32WJ01X10335 GE Washer Nut M833WJ79X10245 GE Condenser Cover34WJ66X10094 GE Sponge Rear Clapboard35WJ79X10246 GE Top Plate36WJ69X10017 GE Air Conditioner Curtain Assembly37WJ68X10064 GE Cabinet Support38CURTAIN ASM39WJ82X10069 GE Top Guide40WJ43X10082 GE Gasket Form41WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case42WJ67X10003 GE Right Side Case Mount Bracket43WJ43X10079 GE Window Top Foam Gasket44WJ43X10080 GE Window Seal Sash45WJ01X10415 GE Hardware Kit48INSTALLATION HARDWARE50BOLT M5X1351NUT M5X552BOLT M6X1953NUT M6X654SCREW M4.8X857WJ01X10350 GE Plastic Bag59WJ87X10263 GE Air Conditioner Condenser Assembly60CAPILLARY ASM61DISCHARGE PIPE62COMPRESSOR63SUCTION PIPE64WJ88X10240 GE Air Conditioner Evaporator Assembly65RUBBER GROMMET67ELECTRIC BOX 168WJ26X10345 GE Air Conditioner Main Printed Circuit Board70TERMINAL BOARD71RELAY72TRANSFORMER73WJ02X10034 GE Capacitor Clamp74CAPACITOR76DISPLAY BOARD77WJ26X10346 GE Air Conditioner Electric Controller Box78ESCUTCHEON79CABLE CLAMP80POWER CORD999MINI MANUAL999PM OWNERS MANUAL
