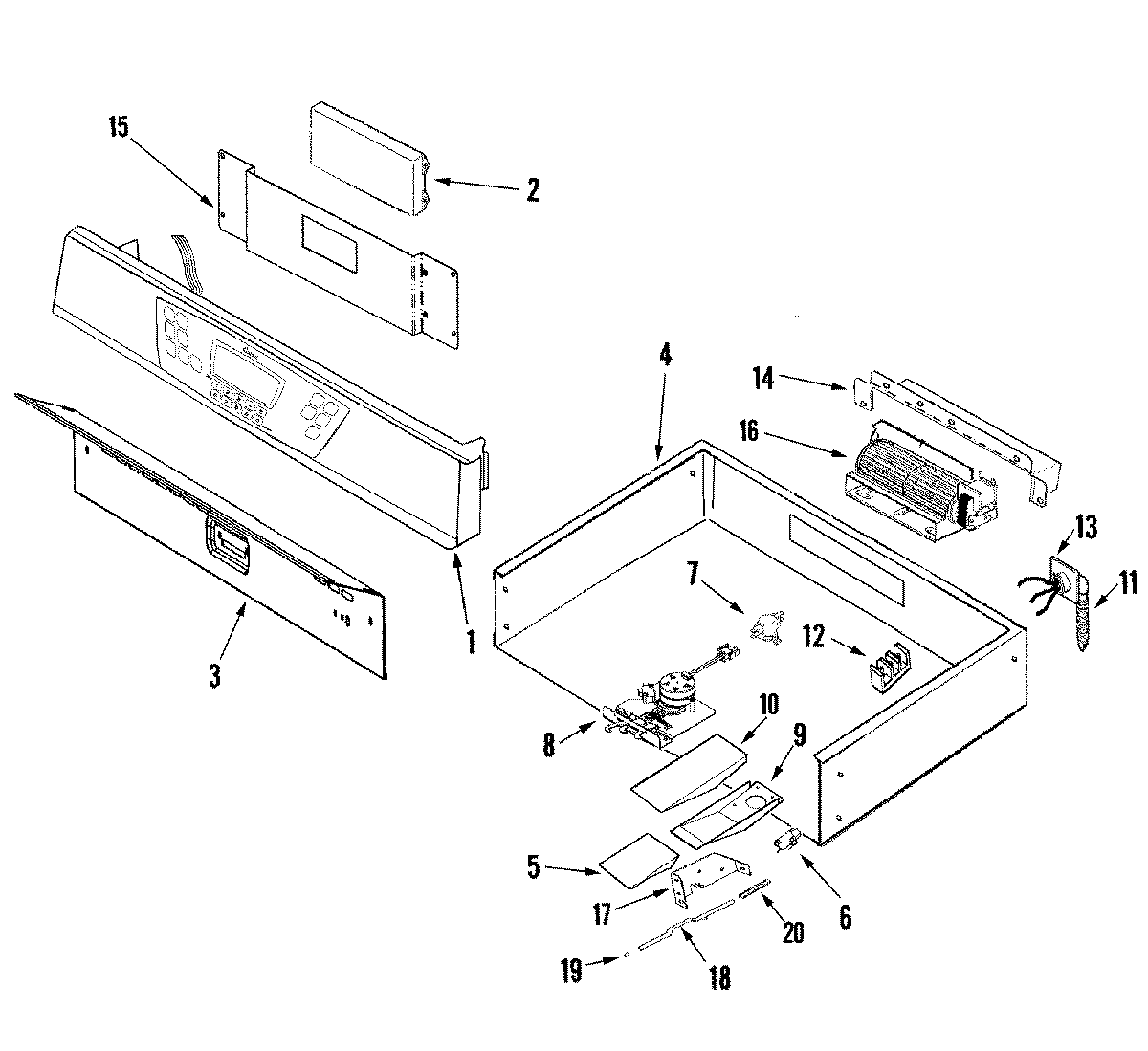

AEW3530DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008782
2MAY 74008878
2MAY 74008268
3MAY 74008261
4MAY 74008262
5MAY 71001843
6MAY 74008264
6WP74008263 Whirlpool Door Switch
774008265 Whirlpool Oven High Limit Thermostat
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
9MAY 74008294
10MAY 71001847
11MAY 74004222
11MAY 74004735
12WPW10245259 Whirlpool Terminal Block
12MAY 7417P017-60
12WP7103P027-60 Whirlpool Nut
12KIT, HARDWARE ADAPTER
13MAY 74004712
14WP90767 Whirlpool Screw
14MAY 74008330
15MAY 74008299
16NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16MAY 74009598
16MAY 74009597
16MAY 74009596
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
18SWTCH-LITE
19MAY 74007586
