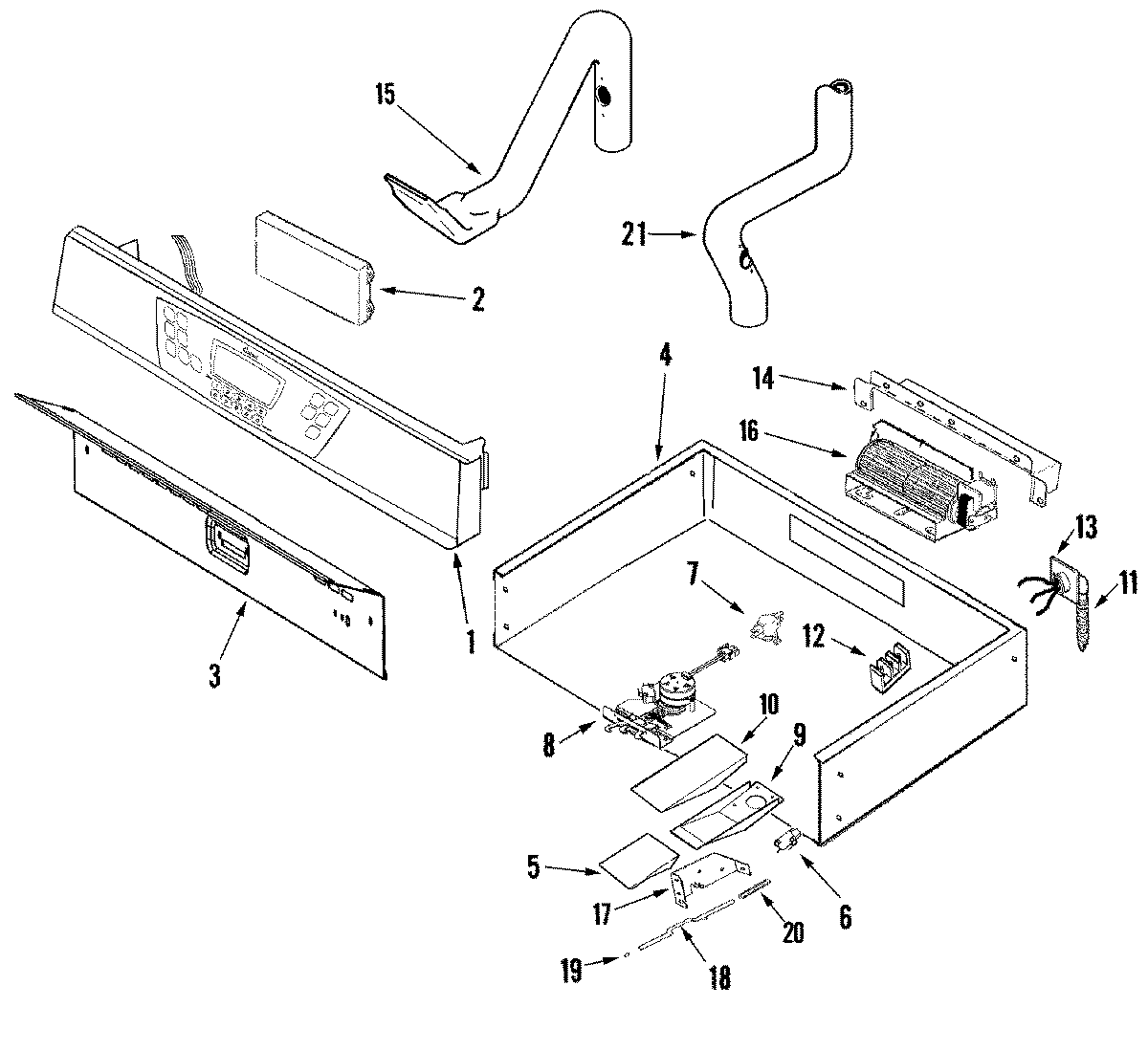

AEW3630DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008791
2	MAY 74008930
2	MAY 74008268
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	WP74008263 Whirlpool Door Switch
6	MAY 74008264
7	7403P855-60 Whirlpool Thermostat
7	74008265 Whirlpool Oven High Limit Thermostat
8	MAY 7101P330-60
8	WPW10186996 Whirlpool Door Latch
9	MAY 74008294
10	MAY 71001847
11	MAY 74004726
11	MAY 74004222
12	MAY 7417P017-60
12	KIT, HARDWARE ADAPTER
12	WPW10245259 Whirlpool Terminal Block
12	WP7103P027-60 Whirlpool Nut
13	MAY 74004712
14	WP90767 Whirlpool Screw
14	MAY 74008330
15	MAY 71002417
16	MAY 74009596
16	MAY 74009597
16	MAY 74009598
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
18	SWTCH-LITE
19	MAY 74007586
21	MAY 71002418
