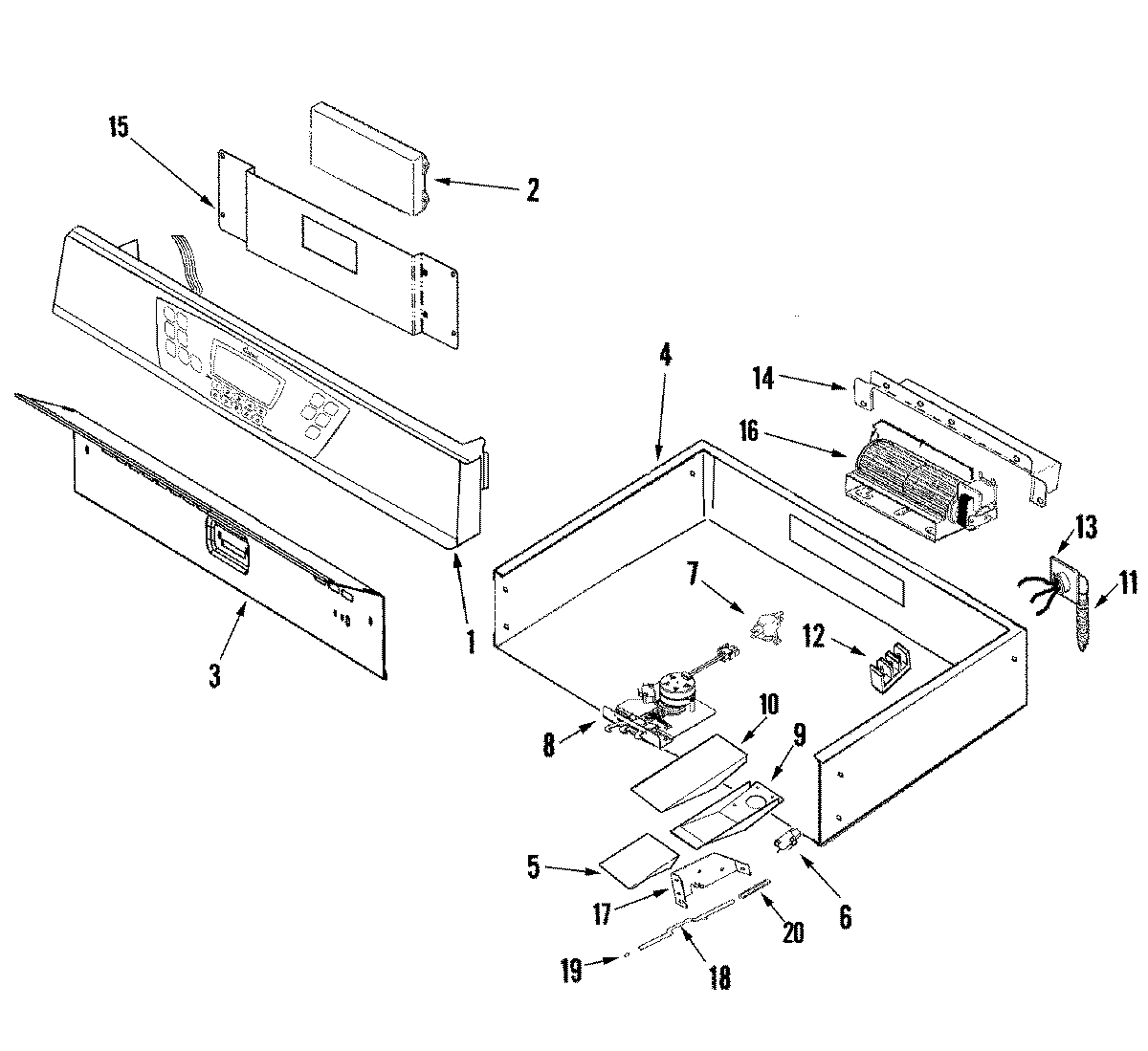

AEW4530DDQ 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008767
2	MAY 74008268
2	MAY 74008313
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	MAY 74008264
6	SWTCH-LITE
6	WP74008263 Whirlpool Door Switch
7	74008265 Whirlpool Oven High Limit Thermostat
8	MAY 7101P330-60
8	WPW10186996 Whirlpool Door Latch
9	MAY 74008294
10	MAY 71001847
11	MAY 74004735
11	MAY 74004222
12	MAY 7417P017-60
12	KIT, HARDWARE ADAPTER
12	WP7103P027-60 Whirlpool Nut
12	WPW10245259 Whirlpool Terminal Block
13	MAY 74004712
14	WP90767 Whirlpool Screw
14	MAY 74008330
15	MAY 74008299
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 74009598
16	MAY 74009597
16	MAY 74009596
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74007586
